Hardware Manual
BMS Master 4 / 4.5
Ref.: IR14417 A 15.01.2018 Page 67/76
600mA. The resistor load must be enough.
For sufficient cooling is to ensure!
The cell voltage measurements wires are only connect to 14 pole connector.
To connect the external Balance Resistors use only the 24 pole Connector.
The pins 1…12 should only use, if it is not possible to connect the balance resistors direct
at cell contact.

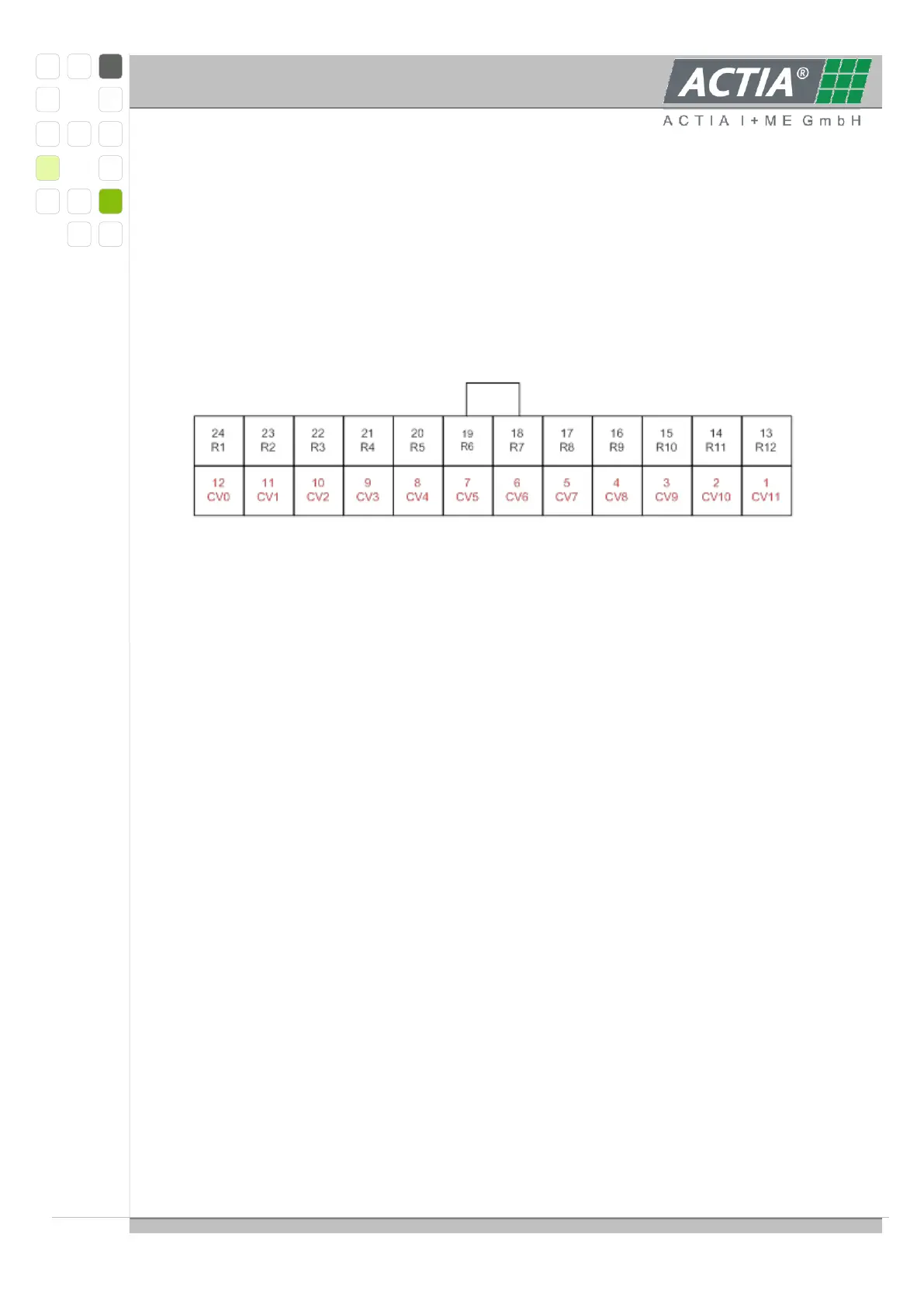

24-pole connector, view of the connector at the device:
