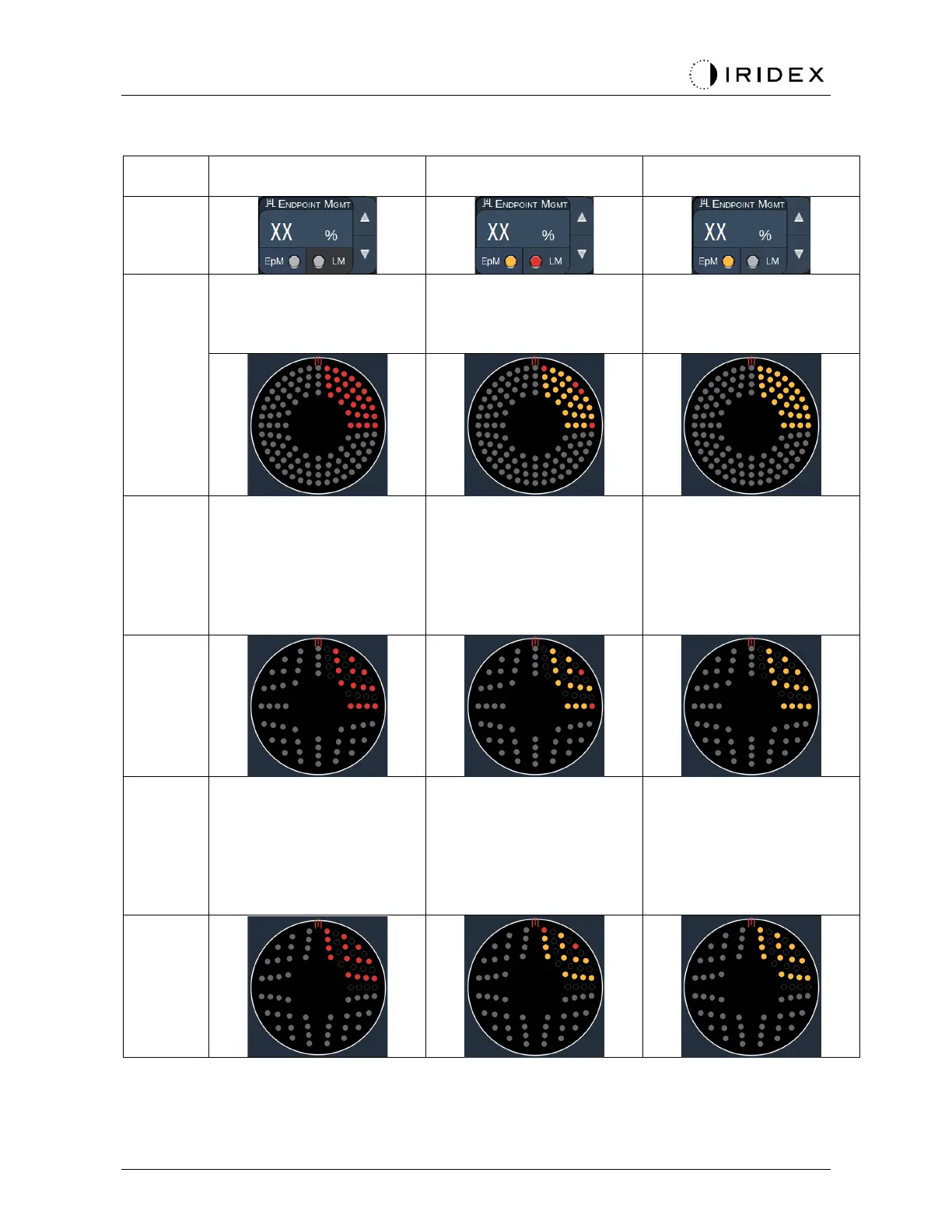

Endpoint Management Features
Pattern
Type
Endpoint Management Off
or Disabled
Endpoint Management
On/ Landmark On
Endpoint Management
On/ Landmark Off
Format
A+B
All full-power spots (red-
100%)
Two full-power spots (red-
100%) per octant;
remaining endpoint spots
(orange-xx %)
All endpoint spots
(orange-xx %)
All full-power spots (red-
100%)
Zero, one or Two full-
power spots (i.e., only
those spots that overlap
with format A+B)(red-
100%); remaining
endpoint spots (orange-xx
%)
All endpoint spots
(orange-xx %)
Format
A
All full-power spots (red-
100%)
Zero, one or Two full-
power spots (i.e., only
those spots that overlap
with format A+B)(red-
100%); remaining
endpoint spots (orange-xx
%)
All endpoint spots
(orange-xx %)
Format
B
