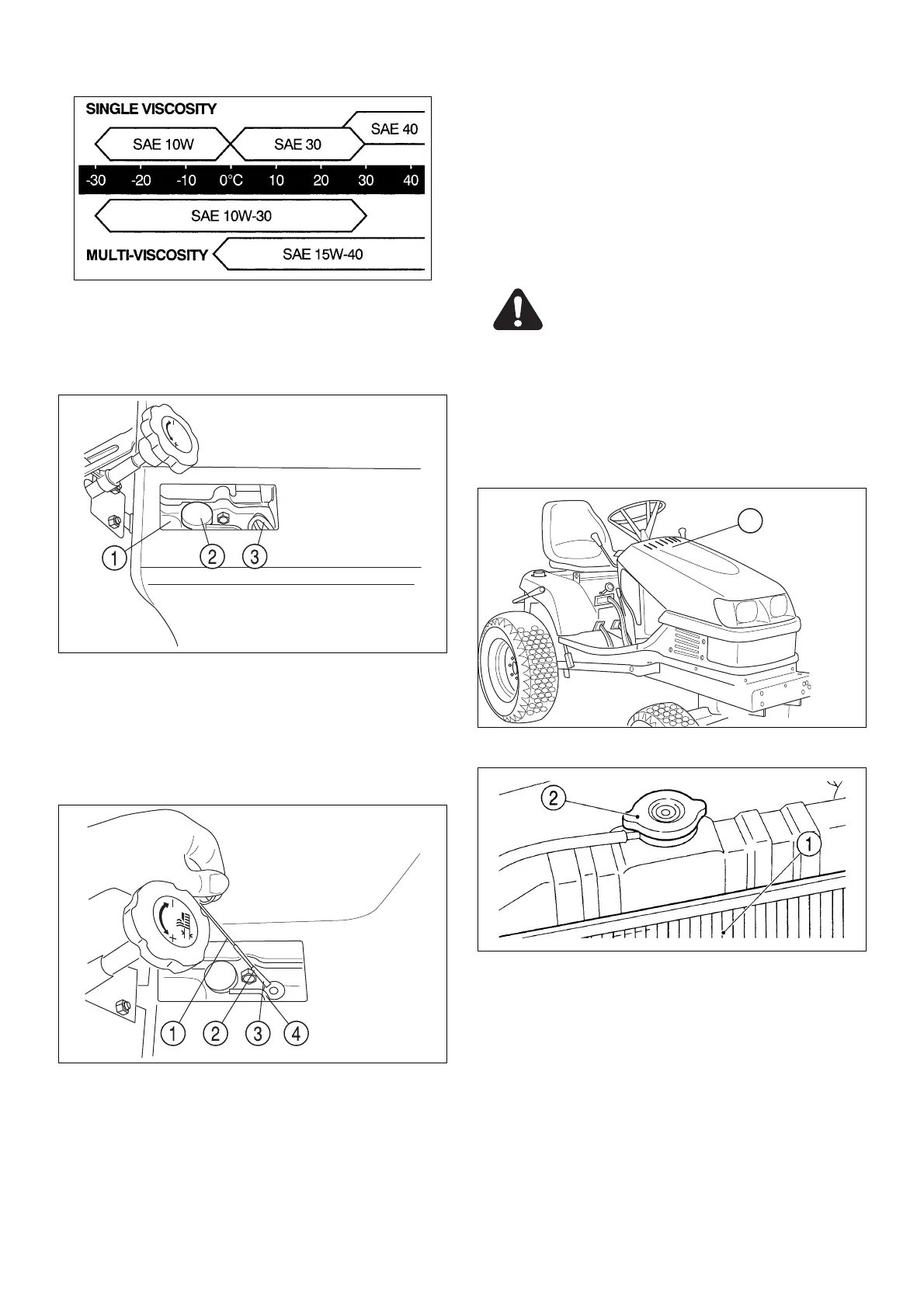

2. TRANSMISSION OIL LEVEL
a. You can make access to the transmission oil level
gauge (dipstick) on the transmission case by remove
the center cover on step.
(1) Transmission case (3) Oil level gauge
(2) Transmission oil filler (Dipstick)
b. Draw out the dipstick.
c. Wipe the tip with dry cloth.
d. Insert the dipstick into the gauge insert completely.
(1) Dipstick (3) Lower limit
(2) Upper limit (4) Unload lever
e. Remove it again. Make sure that the level is between
the upper and lower limits.
f. When the oil level is lower than the lower limit,
replenish with fresh hydrostatic transmission oil up to
the level between the upper and lower limits.
Important:
The transmission oil is common with oil for the
hydrostatic transmission (HST) and the hydraulic lift
cylinder, so pay sufficient attention not to allow dust,
water, and other foreign matter to be trapped in the oil.
3. COOLANT LEVEL
Warning:
Never remove the radiator cap during or just after
operation. The water in the radiator is very hot and
highly pressurized, so it may cause burns. Allow the
engine to cool down sufficiently before inspecting
coolant level.
a. Open the engine hood.
(1) Hood
(1) Radiator (2) Radiator cap
b. Make sure that the coolant level in the reserve tank
is between the upper and lower limits. If the level is
lower than the lower limit, replenish the reserve tank
with fresh clean soft water.
