III. COLLECTOR OPERATION
89
III. COLLECTOR OPERATION
3. Inspection before operation
･ Before operating, inspect the points that follow.
(1) safety switch
a. Be sure to confirm that the engine stops as soon as
operator start the mower deck with lifted container
(SBC550X-H) or dumpped container(SBC550X-L).
Danger:
Safety switch prevents the blades from starting
with lifted container (SBC550X-H) or dumpped
container(SBC550X-L) to keep operator's safety. Be
sure to check that the safety system is normal.

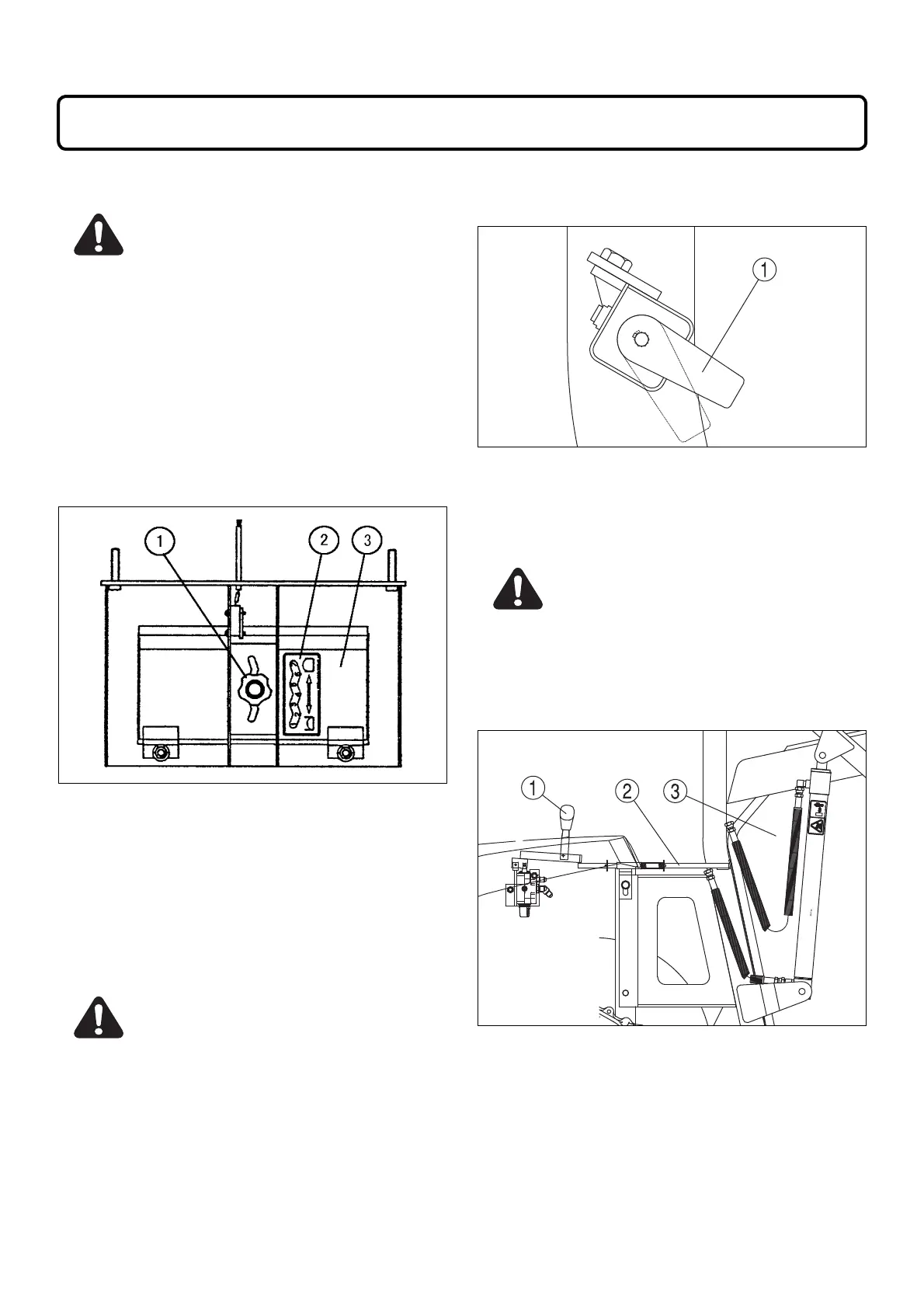

(1) dump lever (3) container
(2) rod
b. Collector (SBC550X-H) has a control of dump lever.
Be sure to check that dump lever wouldn't be moved
backward with container located at the lowest position.
Important:
Be sure to confirm that the control of dump
lever(SBC550X-H) is normal.
1. BEFORE OPERATION
Caution:
･ Become familiar with how to operate the lawn mower
and understand safety instructions by reading this
manual carefully.
･ Make sure that all safety covers and guards are
installed in position.
･ Before operating the collector, be sure to confirm that
collector move up and down smoothly.
･ When operating the collector, be sure to confirm that
hydraulic hose is not pulled and interfered.
2. Adjusting the grass limit sensor
(1) adjuster bolt
(2) adjustment position label
a. Filler rate of container is changed with adjusting the
adjuster bolt(1).
b. Check the buzzer of grass limit sensor. Set the starter
switch ON position (Don't start engine) and set the
PTO lever on. Check that buzzer sounds by pushing
the sensor plate(3).
Caution:
After checking the buzzer, be sure to turn starter
switch and PTO lever off.
