IV. INSPECTION AND MAINTENANCE OF MAJOR PARTS
81

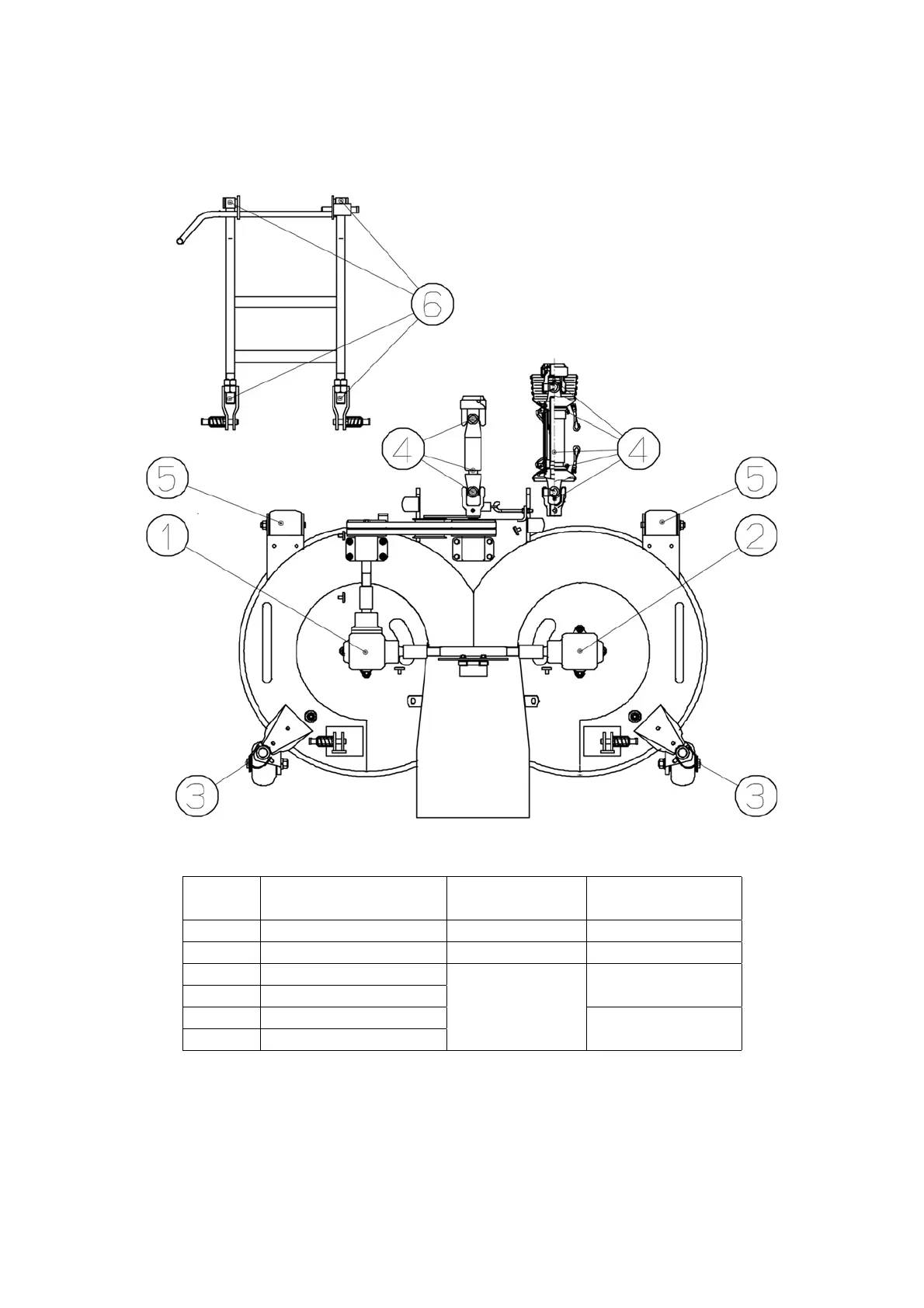

7. FILLING DIAGRAM
All the shafts mentioned below have a grease fitting on their end. Grease them up periodically. The gear case should
also be serviced periodically for oil replenishment and replacement.
Ref. No. Filling points Lubricants
Quantity :
litres (lmp. gal.)
1 Bevel gear case (LH) Gear oil SAE 80 0.3 (0.07)
2 Bevel gear case (RH) Gear oil SAE 80 0.3 (0.07)
3 Gauge wheel
Grease
Inject until grease
overflows
4 Drive shaft
5 Roller
As required
6 Front link
To Next Page
