b. Move the lift lever(6) backward to lift the collector.
c. Insert the lock pin(7) to right and left frame of collector
to prevent the collector from falling (SBC550X-H).
d. Stop the engine.
e. Pull up the cleaning lever(4) and remove the clogged
grass(9) in the chute(3).
f. When grass is clogged in the mower deck under
plate(1) and dischardge cover(2), remove it with the
cleaning stick(8).
Danger:
･ When removing the clogged grass with raised
container, insert the lock pin(7) to right and left
frame of collector to prevent the collector from falling
(SBC550X-H).
･ Stop the engine before removing the clogged grass in
chute and mower deck.
5. EMERGENCY STOP
･ When any of the following abnormalities is
encountered, stop the lawn mower and mower deck
immediately.
- Abnormal noise
- Abnormal vibration
- Abnormal smell
- Blade hitting an obstacle
- The lawn mower hitting an obstacle
･ The cause of trouble should be located and corrected
immediately. If not, consult your dealers. Never
attempt to keep on operating the lawn mower without
locating and correcting the cause of trouble.
･ When the operator leaves the seat, the safety system
automatically stops the engine. When leaving the lawn
mower to remove obstacles such as twigs, pebbles,
etc., the PTO lever must be shifted to the OFF position
and the parking brake applied.

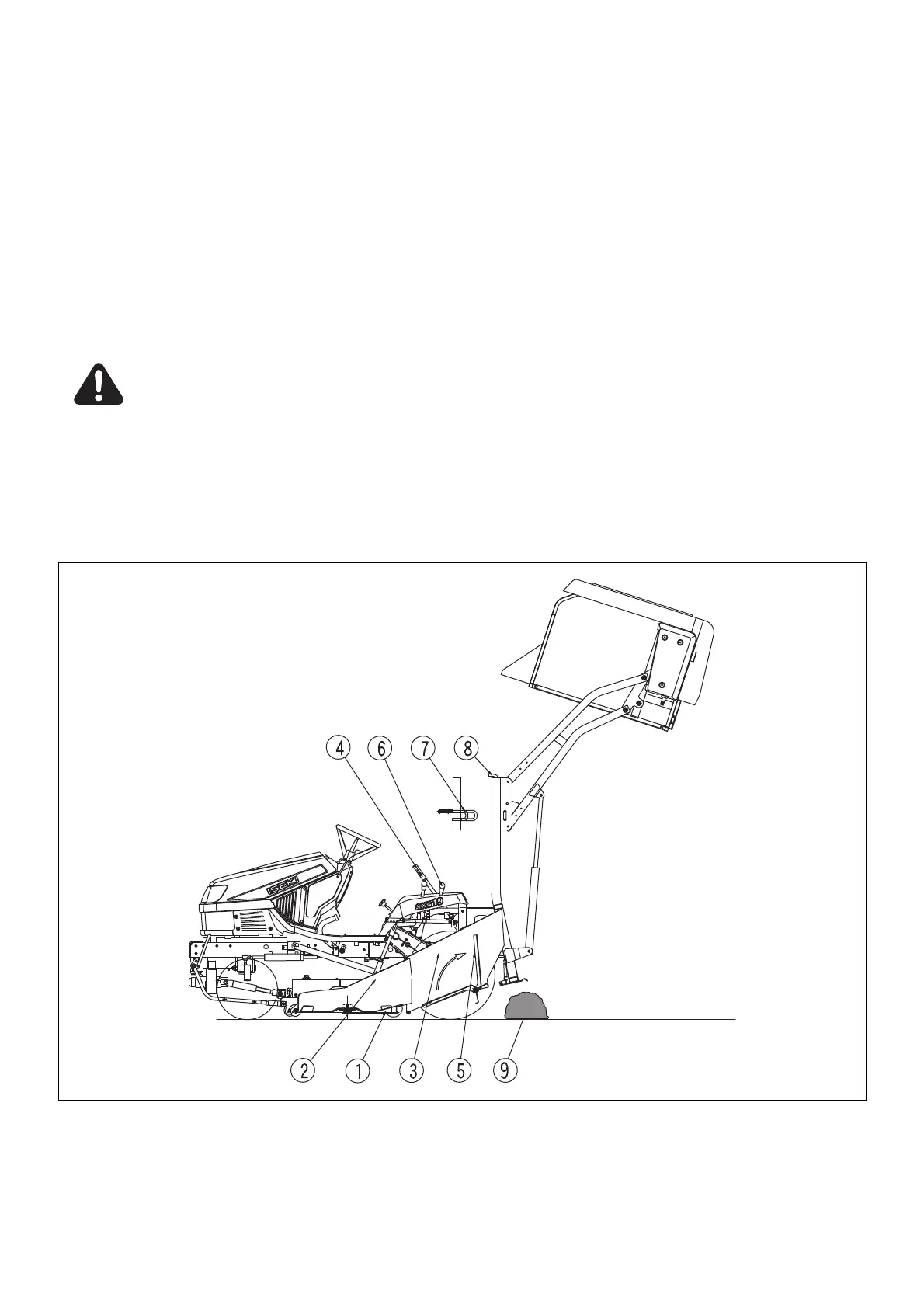

(1) Mower deck under plate (4) Cleaning lever (7) Rock pin
(2) Mower discharge cover (5) Cleaning plate (8) Cleaning stick
(3) Chute (6) Lift lever (9) Clogged grass
