VIII. MAINTENANCE
55
c. When all coolant completely drained out, wash the
inside of the radiator and tighten the drain plug
securely.
d. Pour the coolant which has a specified antifreeze
concentration until it starts overflowing through the
coolant filler. Retighten the radiator cap securely.
Coolant capacity
Radiator 3.5 litres (0.77 imp. gal.)
Reserve tank 0.6 litre (0.13 imp. gal.)
Warning:
Be sure to tighten the radiator cap securely, or boiling
coolant may shoot out, which is very dangerous.
Important:
･ Frozen coolant may damage the engine.
･ Mixing ratio of water and antifreeze is different
by antifreeze manufacturers and atmospherc
temperatures.
･ Water and anifreeze should be blended sufficiently
ahead of time.
e. After filling, start the engine and let it idle for 5 minutes
or so. Then check the coolant level. If the level is low,
replenish the reserve tank with coolant. (Refer to page
35.)
Important:
･ Never attempt to run the engine without coolant, or
the engine will seize, leading to its complete damage.

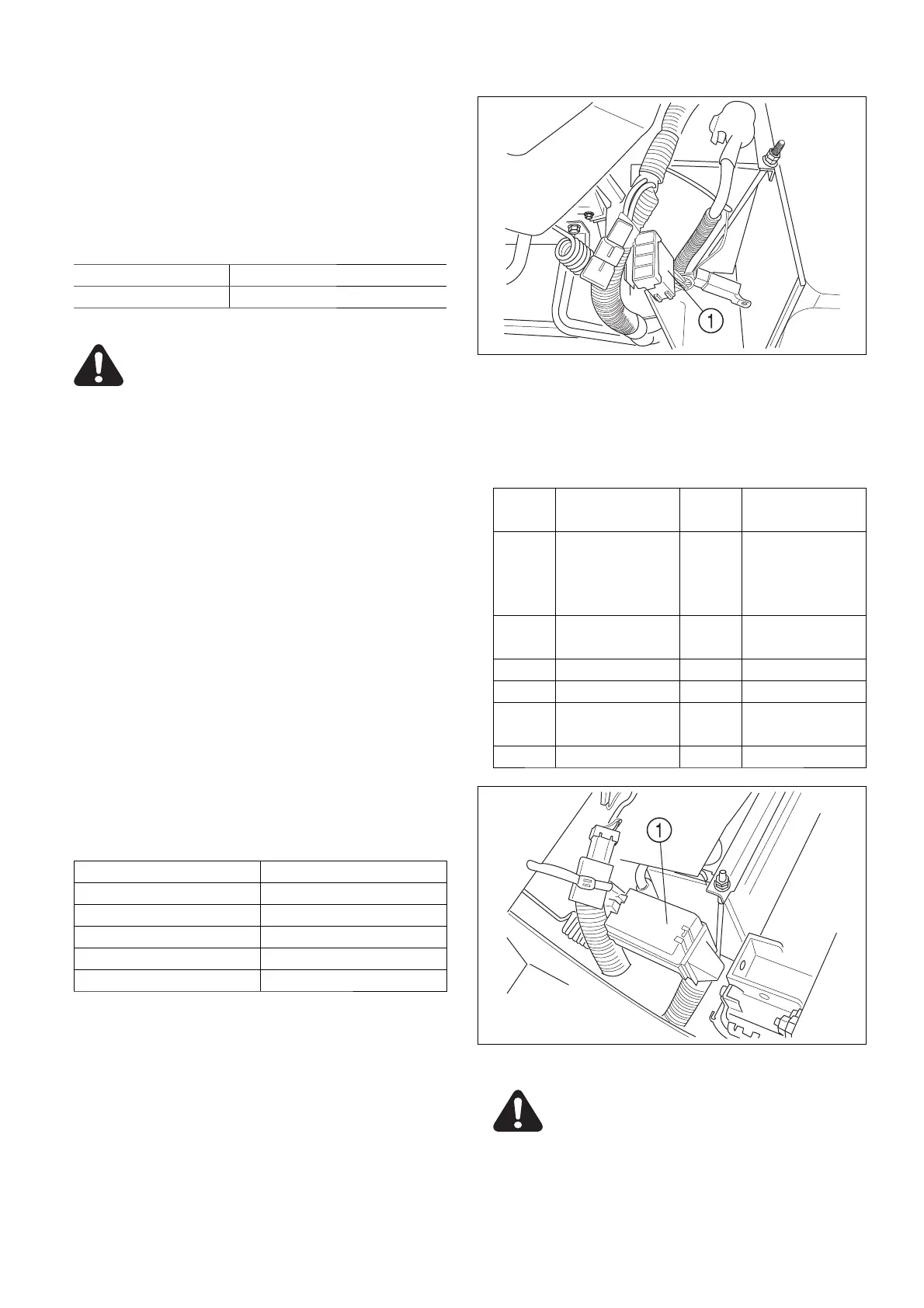

25. INSPECTION OF FUSES AND WIRING (UE TYPE)
The fuse box is located in the right hand side inside
the engine room of the lawn mower.
Fuse capacity Application
3A Fuel pump
10A Solenoids
10A Lamps and relays
20A Head light
20A Option
(1) Fuse box
26. INSPECTION OF FUSES AND WIRING
(UGE TYPE)
The fuse box is located in the ritht-hamd side inside
the engine room.
Fuse
capacity
Application
Fuse
capacity
Application
20A Head light 20A
Small lamp (L&R),
Hazard lamp,
Number plate lamp
Horn
20A High beam 20A
Tuing Signal lamp
10A Small lamp (left) 20A brake lamp
10A Small lamp (right) 20A Option
10A
Hazard lamp
Number plate lamp
10A
Engine stop relay
3A Fuel pump 10A Monitor lamp
(1) Fuse box
Caution:
･ The 20A fuse in fuse box is not a spars fuse. It is
installed to provide power to the electric system of an
implement other than the mower Never use it in place
To Next Page
