Epic 950 Specifications and Requirements Epic 950 OEM Integration Manual
Page 14 Rev G 95-05245
Test Standards
EN50081-1-1992
EN55022-1998, Class A
FCC CFR-47, Part 15, Class A
EM55082-1-1998
EN55024-1998
EN61000-4-2, Level 3
EN6100-4-3, Level 2
EN61000-4-4, Level 2
EN61000-4-5, Level 2
EN61000-4-6, Level 2
ESD IEC 1000-4-2, 6kv direct discharge and 8kv air discharge.
Radiated RF IEC 1000-4-3, 3 v/m from 27 MHz to 1 GHz.
Fast transit (burst) IEC 1000-4-4, 2kv powerline, 1kv I/O lines (level 3, Industrial environment).
Acoustic Noise: Less than 65 decibels max. while printing a 30/30 format.
(measured in 10 positions @ operator level with distance of 1 meter, per ISO 779).
Mechanism Characteristics
Drawer Slide Force: TBD lbs. max.
Opening Distance: 190mm (7.5") (approximate ).
Drawer Holding Force: 4.5 lbs. (out of detents).
Mechanism Operating Angle: Horizontal to 45º inclination (ticket exit slot up).
45

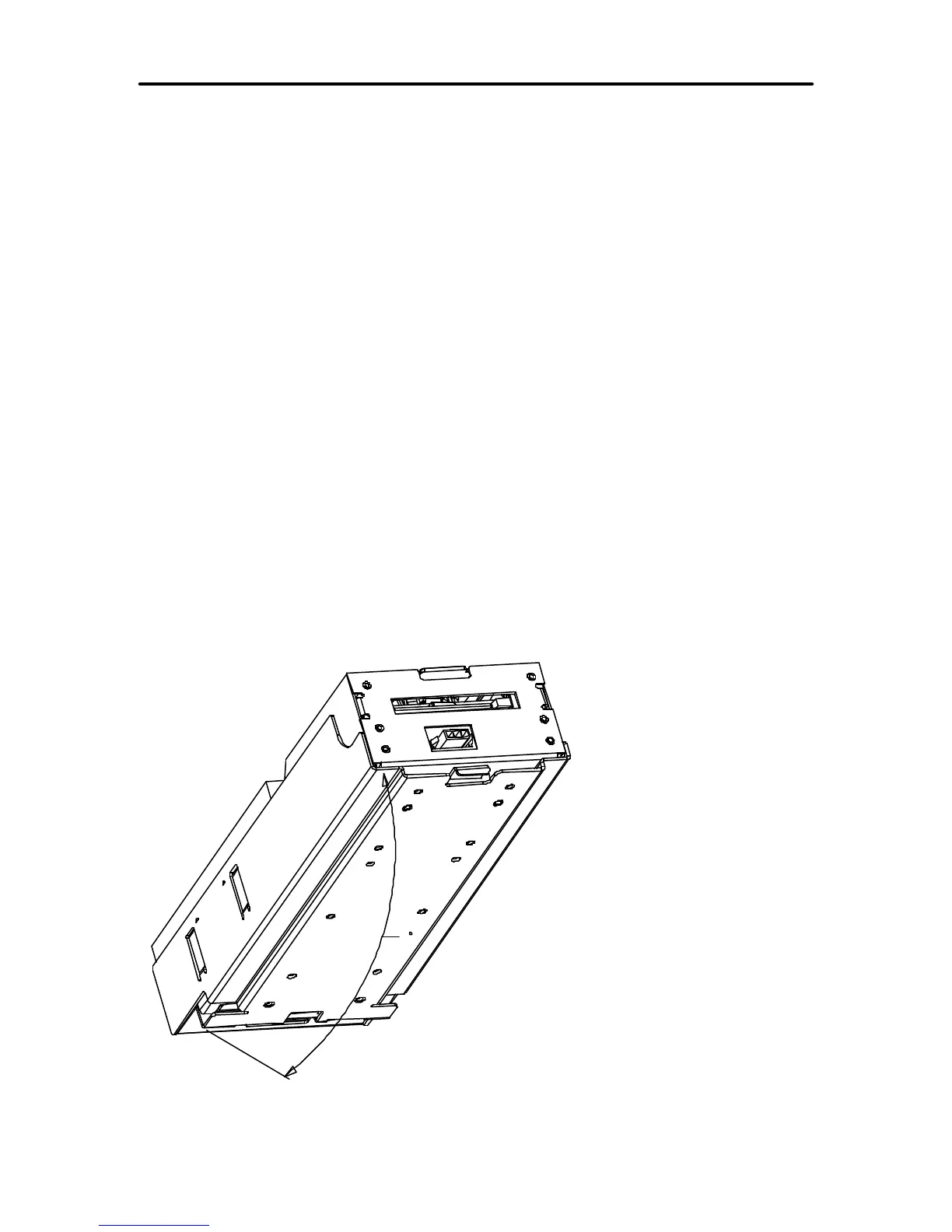

Figure 3. Maximum Mechanism Operating Angle
