Ithaca Epic 950 - Interface Connections

Mounting Requirements Epic 950 OEM Integration Manual
95-05245 Rev G Page 21
Mounting Requirements
Outer Chassis to Final Product
Bottom: 4x M4x 0.7 press nuts.
4x ? .180" thru holes.
4.430
2.024
1.904
7.875
4.500
3.500
1.250
M4x0.7
PEM NUTS
4PLS
.180
4PLS

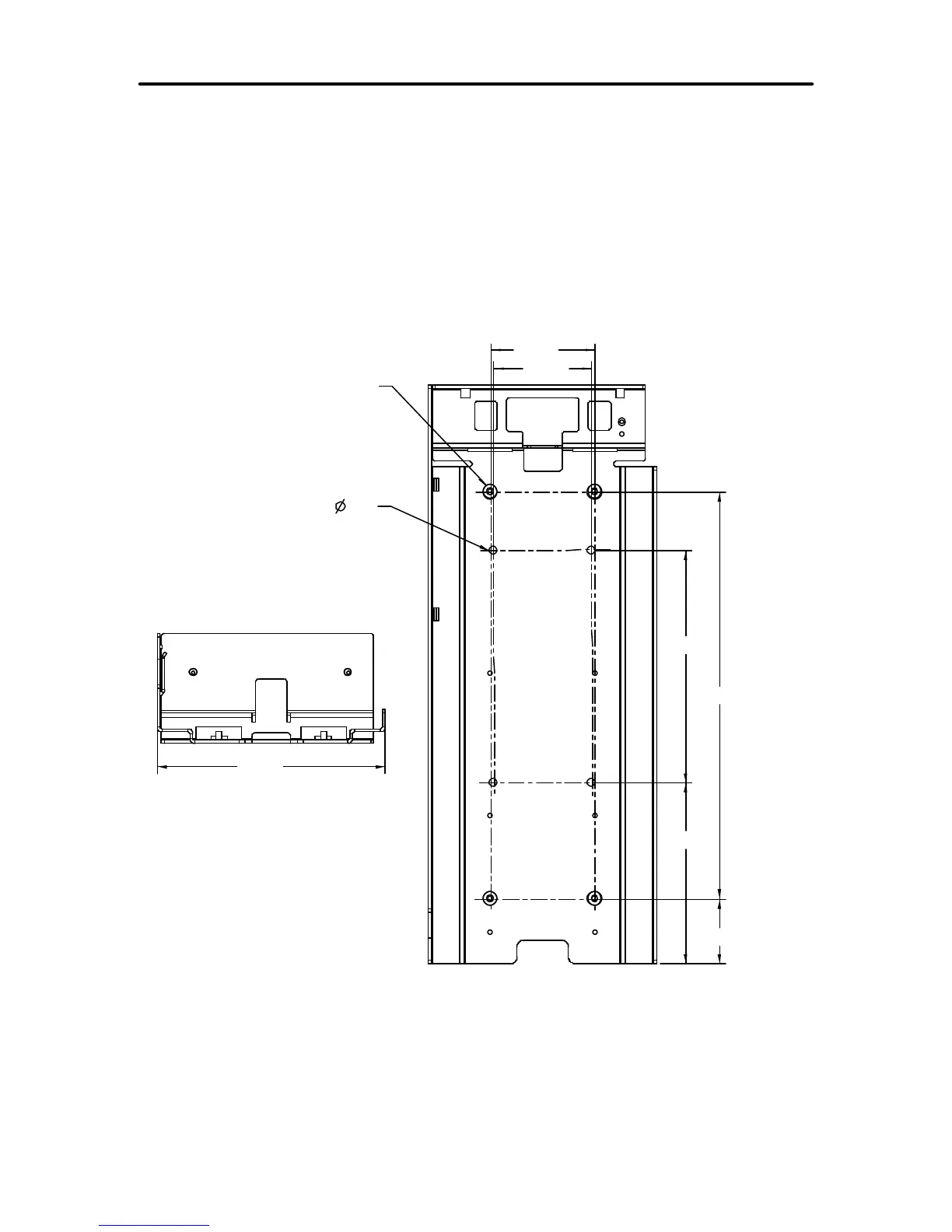

Figure 8. Outer Chassis to Final Product
