Ithaca Epic 950 - NETPLEX Communications Interface PCB; Table 3. NETPLEX Communication PCB Pin-Outs

Electrical Connections Epic 950 OEM Integration Manual
Page 36 Rev G 95-05245
NETPLEX Communications Interface PCB

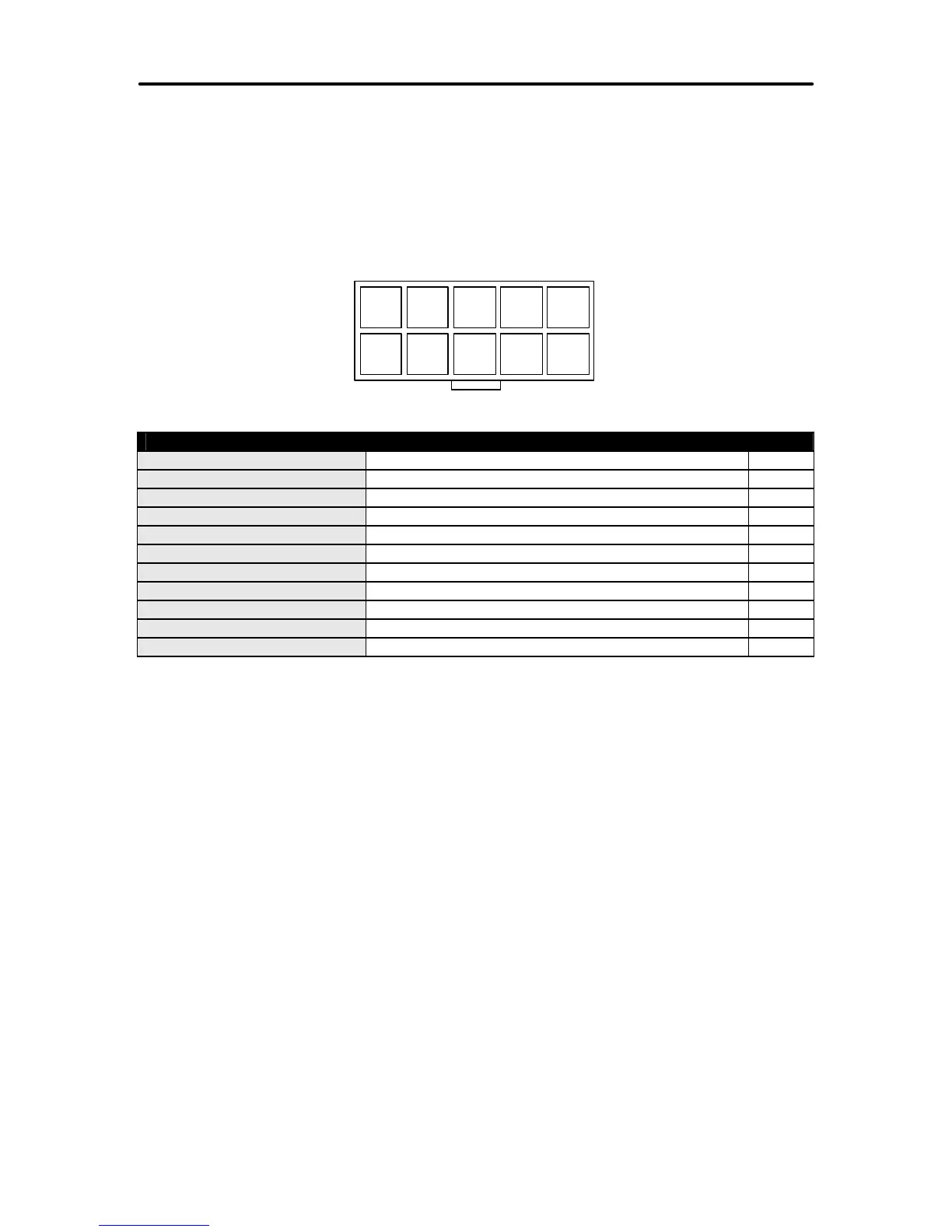

The NETPLEX Communications interface connector is a 10 position Molex Minifit Jr®.,
part number 39-30-1100, which mates with Molex part number 39-01-2100 or equivalent.
1 2 3 4 5
6 7 8 9 10
NETPLEX Communication PCB Pin-Outs
PIN # FUNCTION I/O
1 MRESET (Active low) I
2 RXD I
3 +12 VDC I
4 TXD O
5 SGND -
6 +24VDC -
7 GND -
8 +24VDC -
9 Bezel Lamp – Switched +24VDC O
10 GND -
Table 3. NETPLEX Communication PCB Pin-Outs
