Operational Procedures Epic 950 OEM Integration Manual
95-05245 Rev G Page 45
Racking/Unracking the Inner Chassis
All Epic 950 printers use a slider/detent/latch system with latch arms to retain the Inner
Chassis from accidentally being separated from the Outer Chassis. The Epic 950 is
opened for service by simply pulling on the ticket cover, pulling the Inner Chassis
forward from the Outer Chassis as you would a filing cabinet. If accessible, a front-
mounted release lever can also be pulled on to disengage and slide the Inner Chassis.

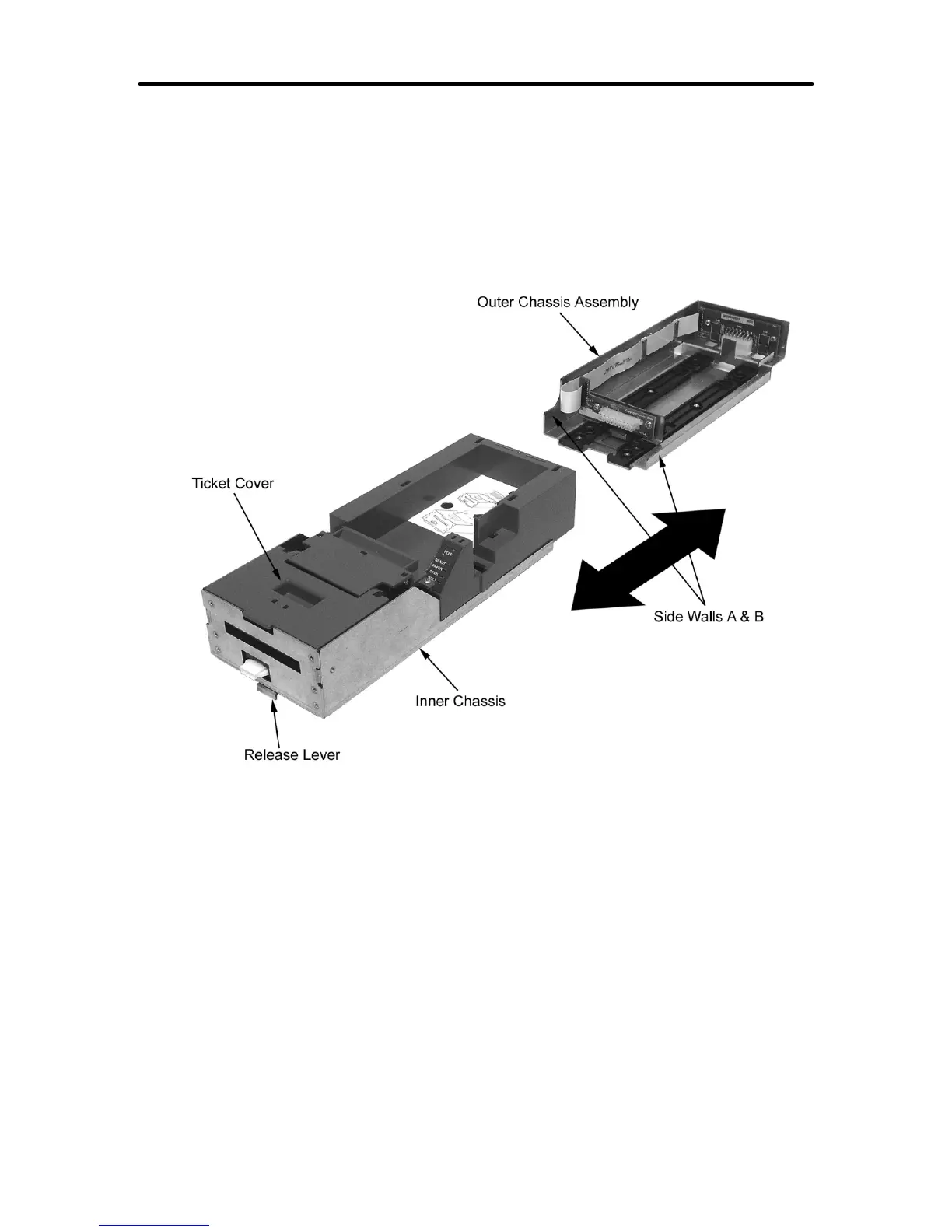

Figure 17. Racking/Unracking the Inner Chassis
To remove the Inner Chassis, perform the following steps:
• Pull on the Ticket Cover to release the rear detents, pulling the Inner Chassis
towards you until its latches catch the forward detent slots in the Outer Chassis
Slides.
• Pull on the Release Lever and pull forward on the Inner Chassis to disconnect
from the Outer Chassis. (This assembly incorporates a HotSwap QDT (Quick
Disconnect Technology) design, which may be removed while power is still on to
the unit.)
To return the Inner Chassis to its base, perform the following steps:
