Mounting Requirements Epic 950 OEM Integration Manual
Page 22 Rev G 95-05245
Bezel Specifications and Recommendations
Bezel to Printer Mechanism mounting points
Epic 950 printers are designed to accommodate a TransAct or customer-supplied bezel
assembly that is mounted following the hardware and mounting dimensions as listed.

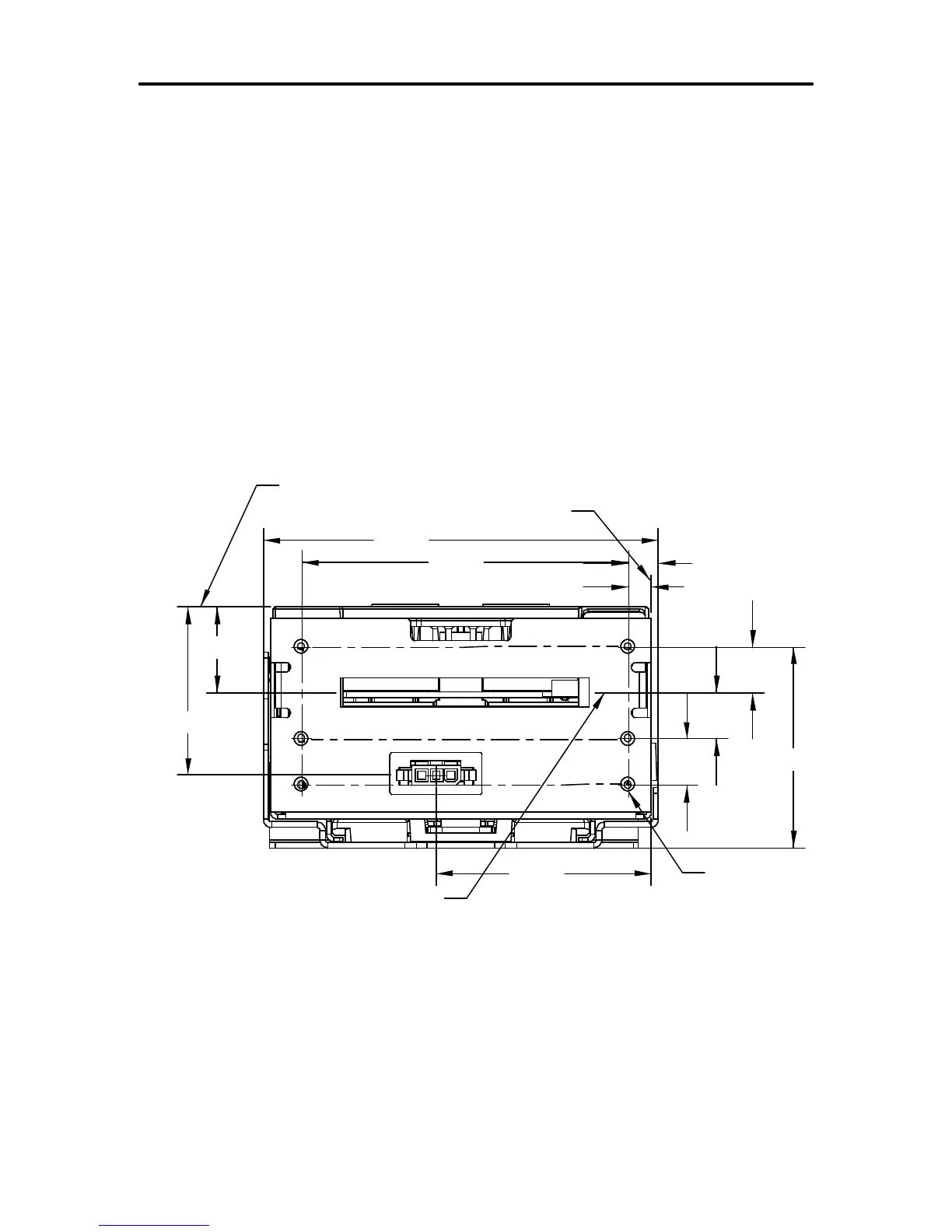

The following drawing shows the positioning and dimensions of the Epic 950 printer’s
mounting points.
Bezel assemblies available from TransAct include internal bezels (part nos. 95-06003L
(yellow) and 95-06005 (blue), with other colors available) and an external bezel (part no.
85-04645L). Part specifications are described in the Epic 950 Maintenance Manual,
document no. 95-05140. For further details, contact your TransAct sales representative.
Front: 6x M3x 0.5 press nuts and interface with bezel.
4.430
3.662
.500
.499
.497
.337
.258
.940
1.831
2.409
2.176
TOP OF SLIDING MODULE
SIDE OF SLIDING MODULE
C OF TICKET
L
M3x0.5
PRESS NUTS
6PLS
Figure 9. Bezel Mounting and Hardware Requirements
