Electrical Connections Epic 950 OEM Integration Manual
95-05245 Rev G Page 35

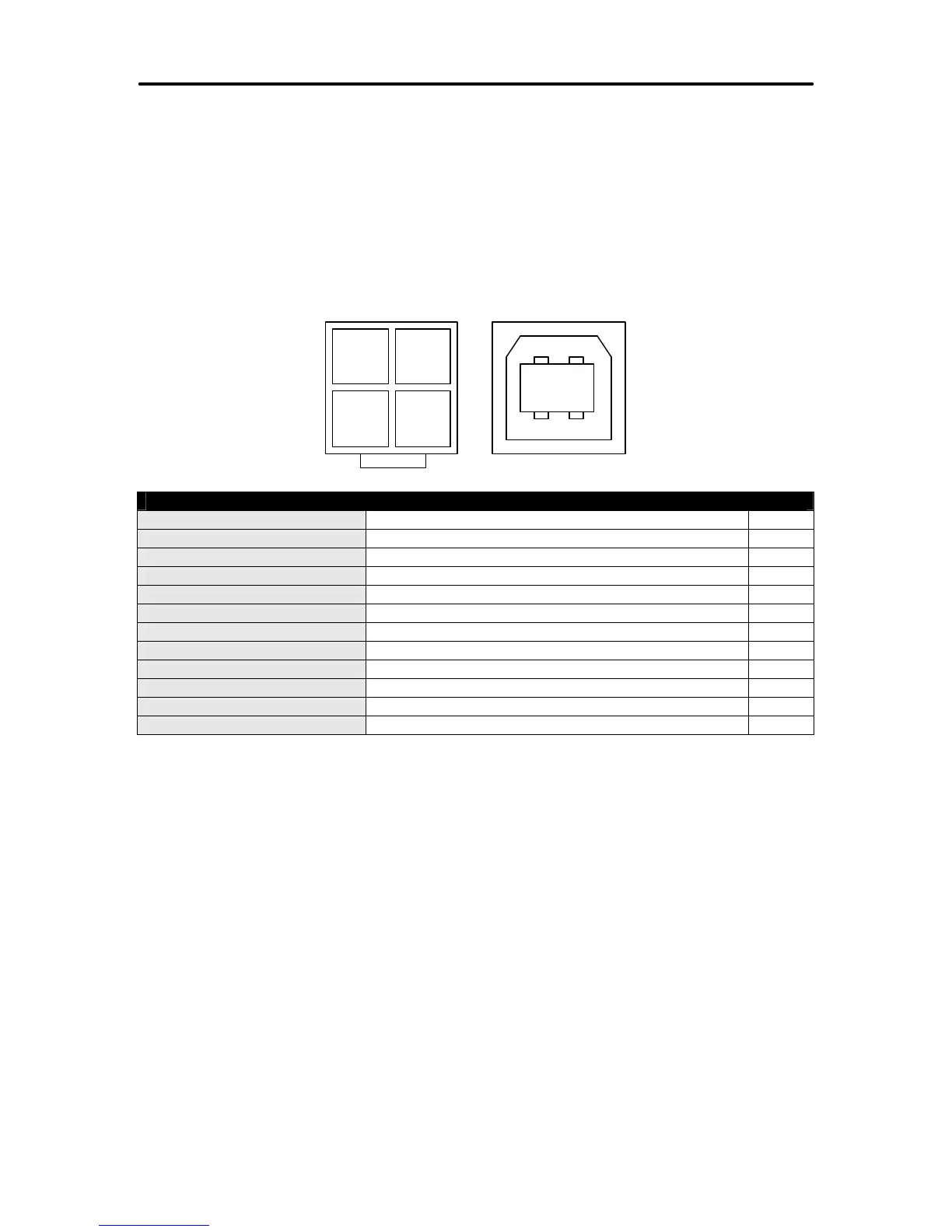

USB Communications Interface PCB
The USB Communications PCB contains two connectors.
§ Power - 4 position Molex Minifit Jr®., part number 39-30-1040, which mates with
Molex part number 39-01-2040 or equivalent.
§ USB Communications - Type B USB connector
1 2
3 4
12
3 4
USB Communications PCB Pin-Outs
USB Connector
Pin # FUNCTION I/O
1 VBUS -
2 D- I/O
3 D+ I/O
4 GND -
Power Connector
Pin # FUNCTION
1 +24VDC -
2 GND -
3 GND -
4 FGND -
Table 2. USB Communication PCB Pin-Outs
