Bezel Lamp Connector
The bezel connector is a Molex Minifit Jr®, part number 39-01-4032 and will mate with a
Molex part number 39-01-4030 or equivalent.
123

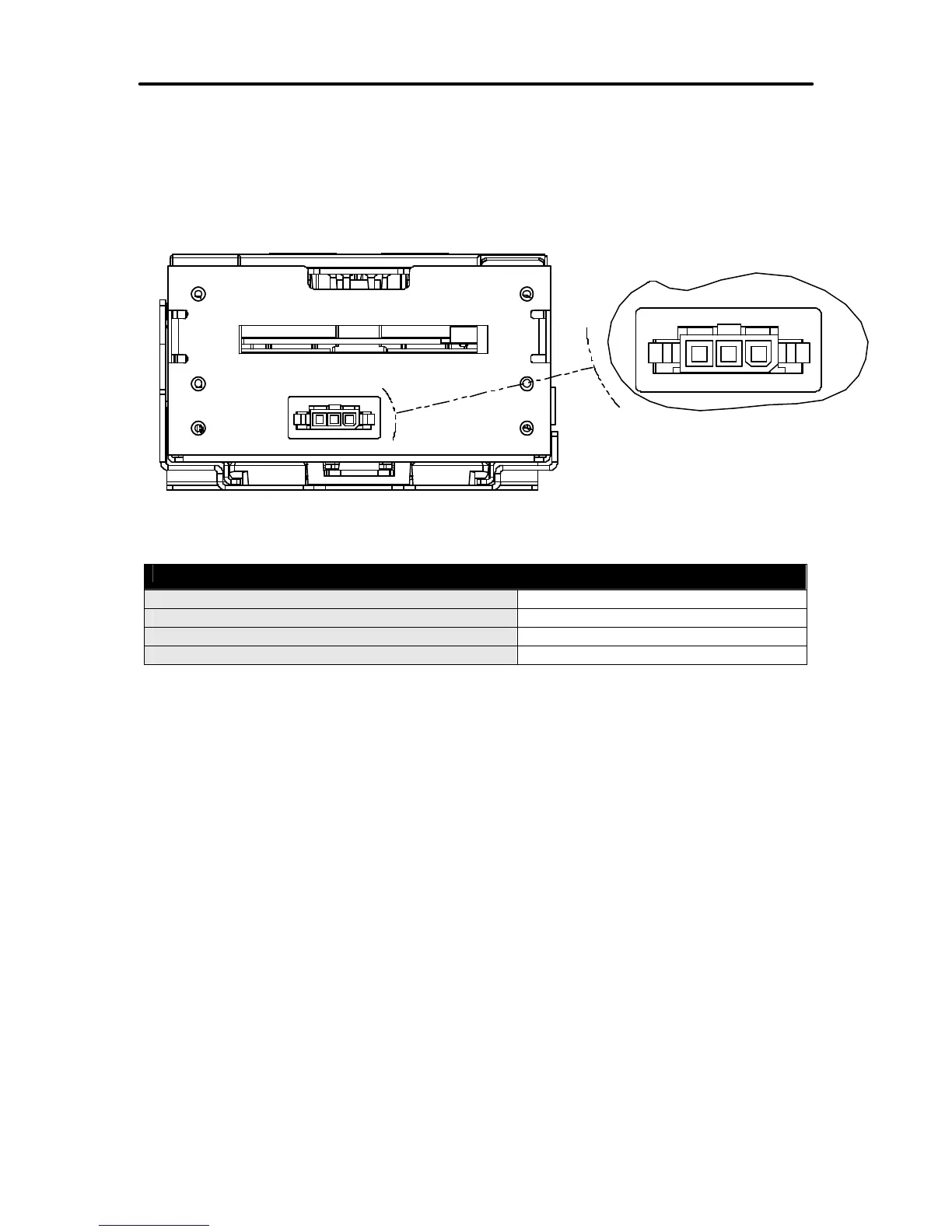

Figure 11. Bezel Lamp Connector Location and Connector Information
Bezel Lamp Connector Pin-Outs
PIN # FUNCTION
1 Modulated +24VDC
2 Not Connected
3 GND
Table 7. Bezel Power Connector Pin-Outs
