Epic 950 Specifications and Requirements Epic 950 OEM Integration Manual
95-05245 Rev G Page 15
Printing Specifications
Print Method: Thermal Sensitive Line Dot System.
Ticket Handling: TicketBurst
TM
ticket buffering with burst.
Print Speed: 125 mm/sec. (5" per sec.) max. (monochrome) (in text mode).
Presentation Speed: 125 mm/sec. (10" per sec.) min.
Resolution: 203dpi x 203dpi.
Dot Pitch-Horizontal: 0.125 mm (8 dots/mm).
Dot Pitch-Vertical: 0.125 mm (8 dots/mm).
Line Feed Pitch: 3.2 mm (.125").
No. of Elements: 496 dots in-line.
Print Width: 62.0 mm (2.44").
Ticket Specifications
Dimension: (same size as US dollars)

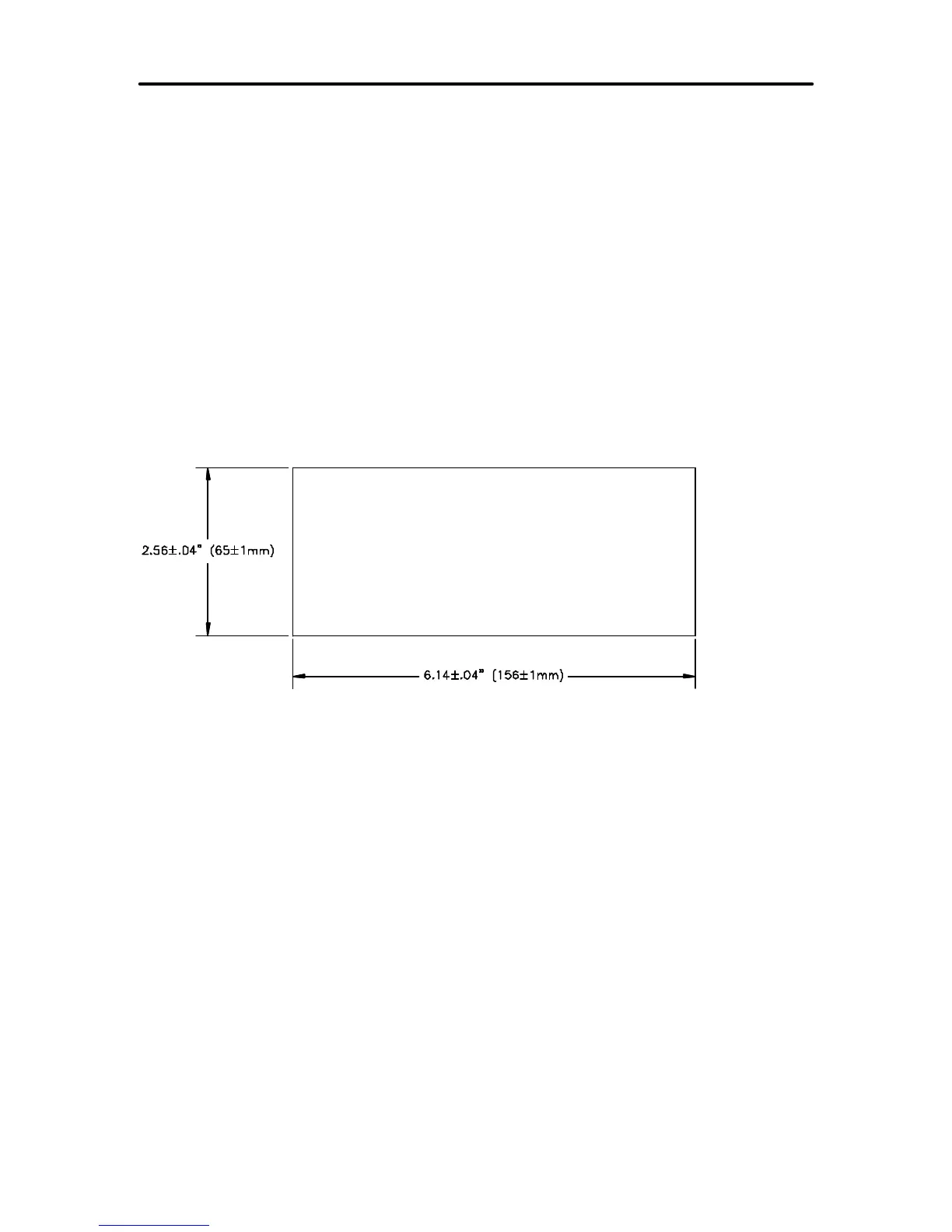

Figure 4. Sample Ticket Size
Ticket Width: 65 ± 1mm (2.56" ± .03").
Ticket Length: 156 ± 1mm (6.14" ± .04") between perforations.
Ticket Thickness: 4.5-5.0 mils (.114-.127 mm).
Ticket Weight: 27# (102 g/m) Ave.
Brightness: 89% Ave. (84%Min.), Test method TAPPI T-525
Printing Colors: Black (visible light absorption: 600 ~ 700 nm), Red, Green, Blue
Quantities Available: Fan-folded stacks of 200, 300, 400 and 600 tickets.
Contract Transact for complete ticket specifications and approved suppliers
Bar Code Specifications
Standard Bar Code: Interleaved. 2 of 5
Minimum Bar Width: 0.5 mm min./0.6 max.
W : N Ratio: 3 : 1 (recommended, with 12:4 wide bar width (dots):narrow bar
width (dots)).
