Electrical Connections Epic 950 OEM Integration Manual
95-05245 Rev G Page 41
Firmware Download Port
The Epic 950 printer features an imPort
TM
firmware and graphics download port, as
shown in the figure below. This port uses a 4-pin Molex connector with an RS-232
interface. For further details on this use of this proprietary download port, please contact
TransAct Technical Support.

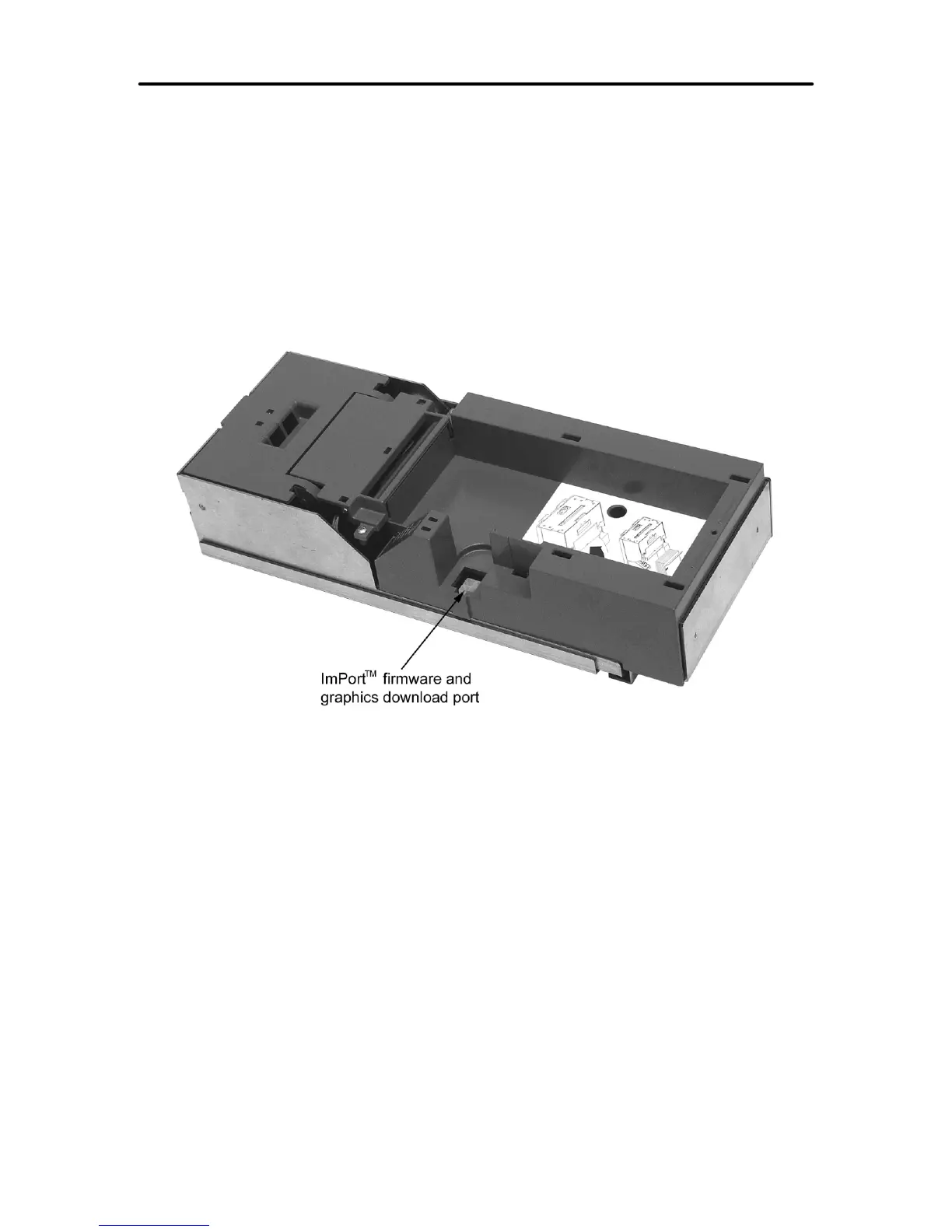

Figure 15. Firmware Download Port.
