ITT HYDROVAR Series - Type Designation Code

13

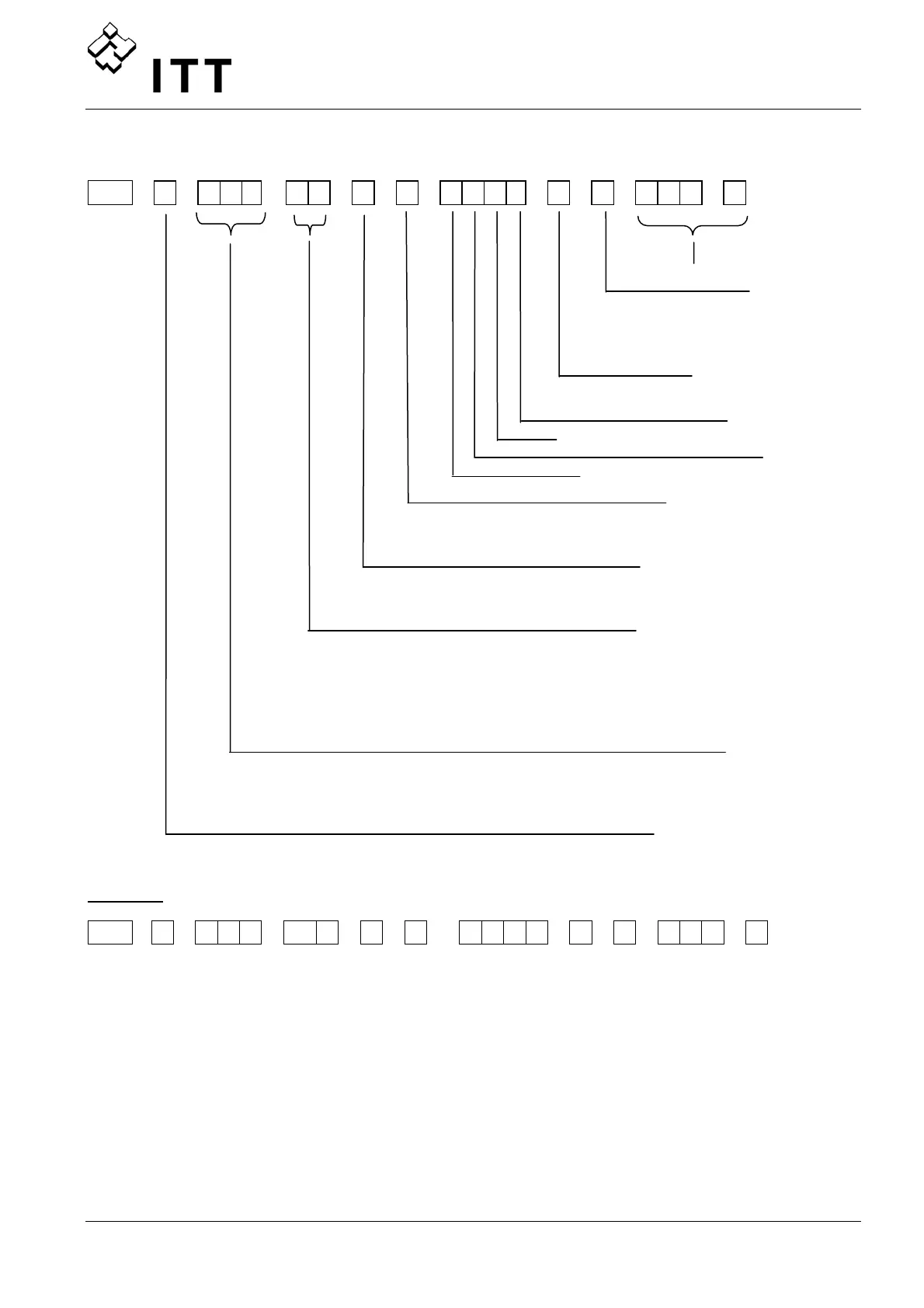

4 Type designation code
Software Version
Language
A = Western Europe
B = Eastern Europe
C = Northern Europe
Hardware Version
Optional Components
Optional Card
Relay Card (0= without / R= included)
Bus Card
Display (0= without / 1= included)
EMC Protection Filter
A = A- Filter (industrial environment)
B = B- Filter (domestic environment)
Enclosure Class (IP Class)
2= IP 21
5= IP 55
Hardware Configurations
M = Motor mounted Unit
W = Wall mounted Unit
1= Basic Inverter
2= Single Inverter
3= Master Inverter
Rated Output
022= 2,2 kW 055= 5,5 kW
030= 3,0 kW 075= 7,5 kW
040= 4,0 kW 110= 11kW
Nominal mains voltage
1= 1~/1~ 230VAC 3= 3~/3~ 230VAC
2= 1~/3~ 230VAC 4= 3~/3~ 380-460VAC
Example
The mentioned HYDROVAR in this example is specified with following technical data:
Nominal mains voltage: 3~/3~
380-460VAC
Rated Output: 4 kW
Hardware Configurations: Motor mounted unit - Master Inverter
Enclosure Class: IP 55
EMC-filter: B - Filter (domestic environment)
Optional Components: Display, Relay-Card
Hardware Version: G
Language: A: Western Europe (DE, EN, FR, NL, IT, ES, PT)
Software Version: V01.1
HV . - - - - - - - .
HV 4 . 0 4 0 - M 3 - 5 - B - 1 0 R 0 - G- A - V 0 1 . 1
