9.4.1 Main Voltage Terminals

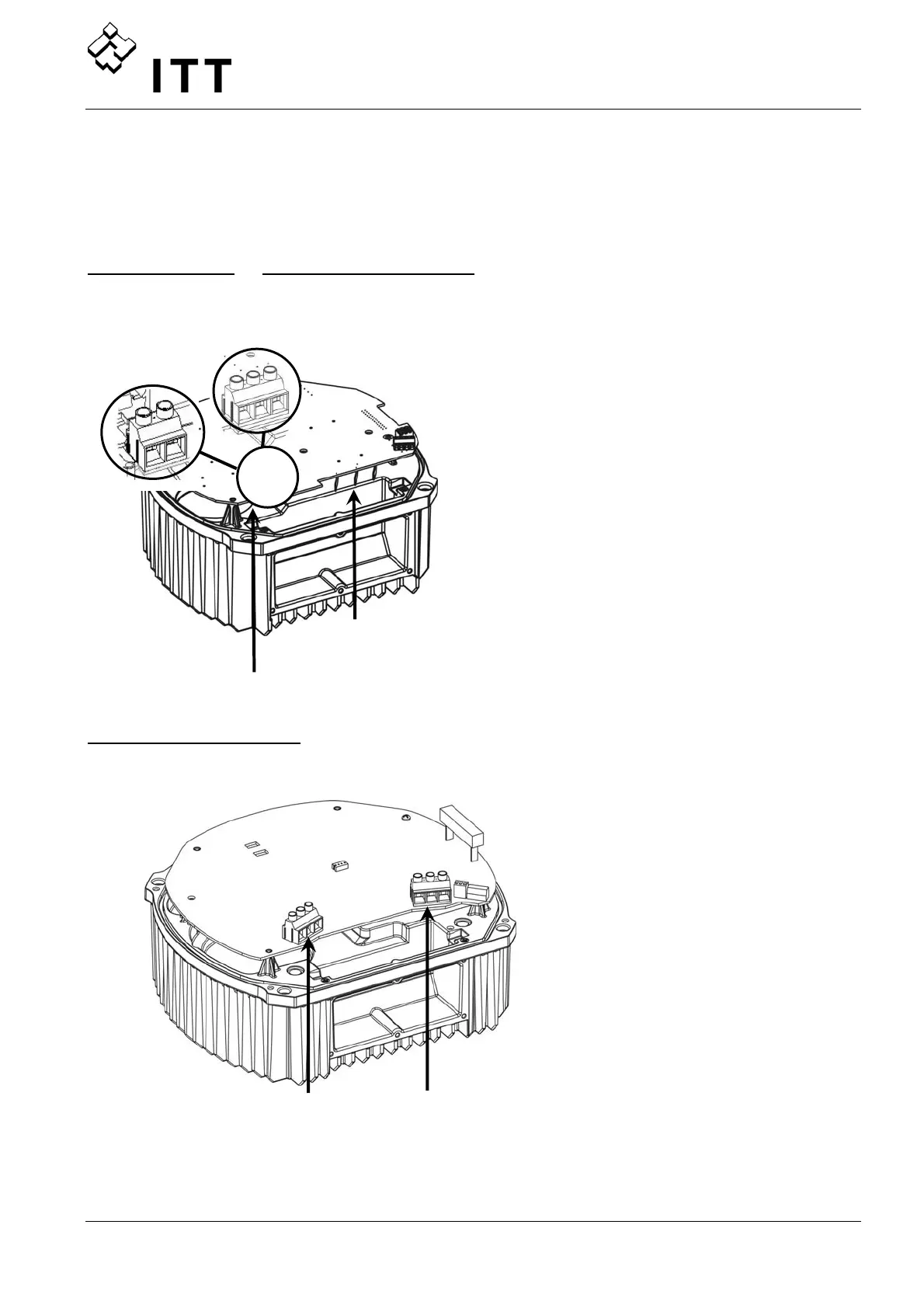

The power supply is connected to the power section:

terminal L1 + N (1 x 230 VAC, single-phase)

terminal L1+ L2 + L3 (3 x 400 VAC, three-phase)

HV 2.015 / 2.022 HV 4.022 / 4.033 / 4.040

HV 4.055 / 4.075 / 4.110

L1-L2-L3

3x400 VAC

Motor Connection

U-V-W

(Crim

connection

6,3mm)

L1-N

1x230 VAC

Motor

Connection

U-V-W

Power Supply

L1-L2-L3

3x400 VAC

Power Su
