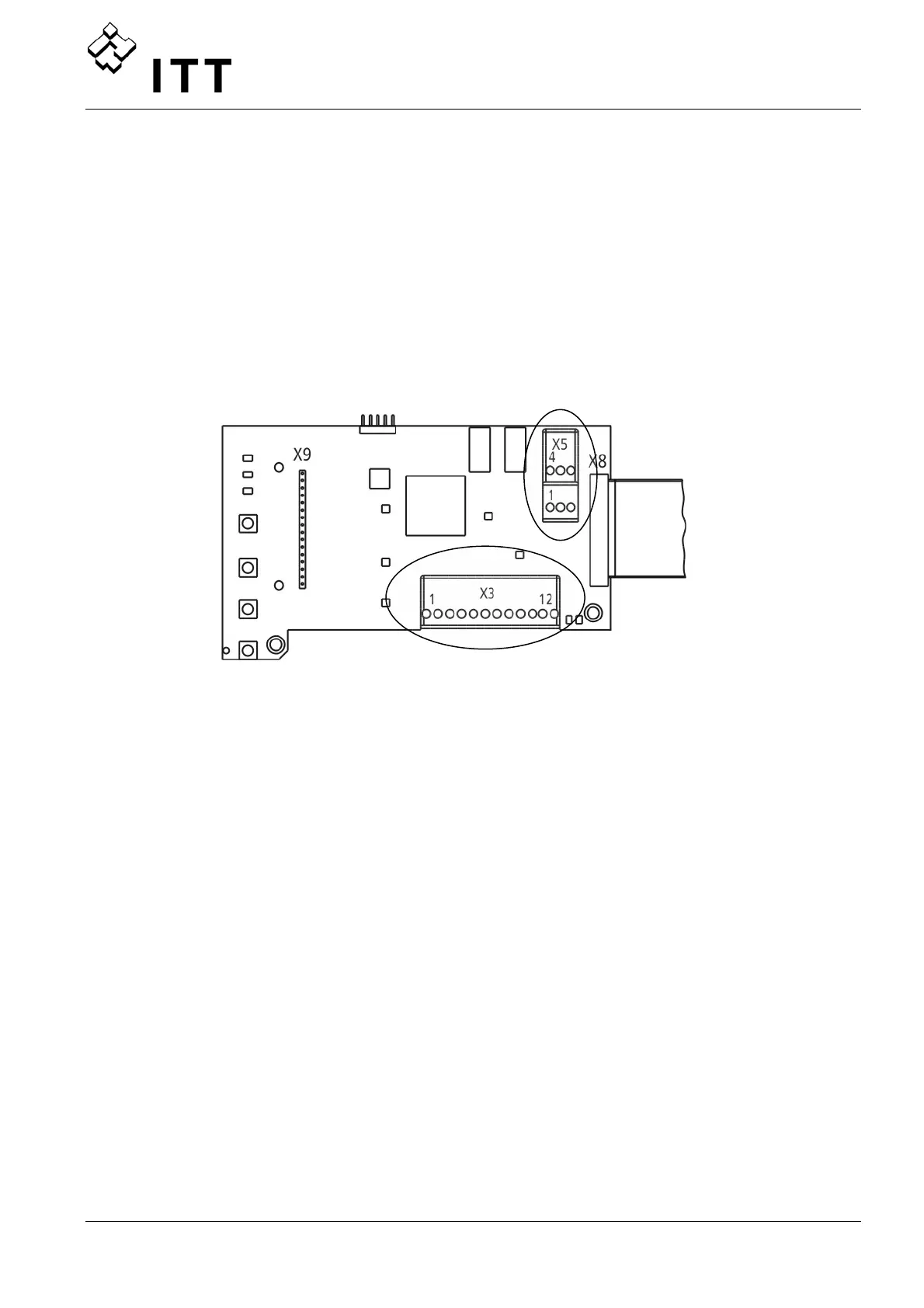

9.4.4.3 Control Card – HYDROVAR Single Inverter
The Control Card is connected to the power unit with a
ribbon cable on terminal X8.
• The display is connected to terminal X9
(The connection depends to the installation position).
X5- Status- Relays
X3- Digital / Analogue –I /O
RS485 - Terminal
