EditingaChase Chases

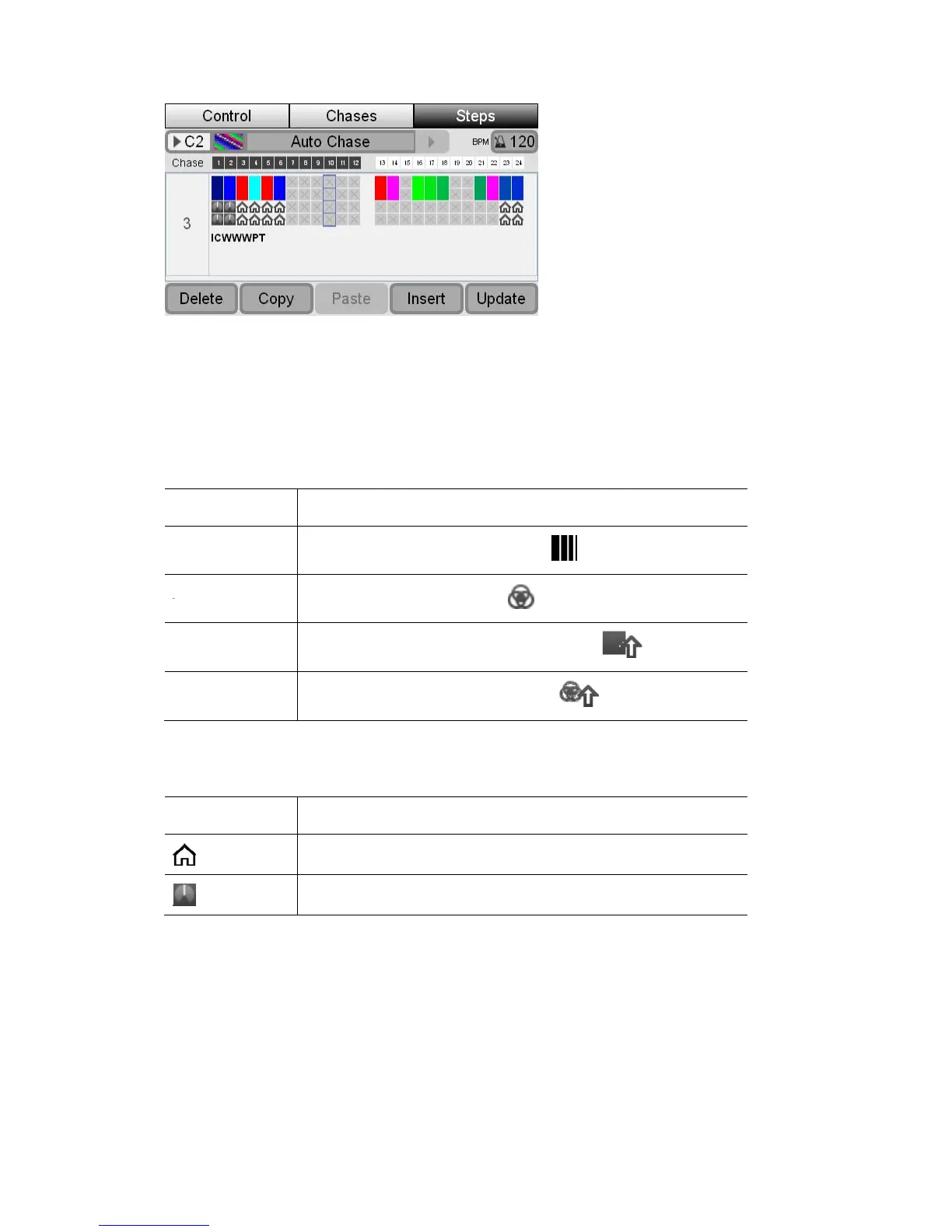

For each fixture there is a column with up to 4 rows of icons. If the fixture has
color mixing (i.e. RGB, RGBW, RGBA, RGBAW) the top two rows are merged
and show the color and intensity of the fixture. Rows 3 and 4 show the setting for
the feature that has been assigned to the Shift+Hue and Shift+Saturation dials.
If the fixture does not have color mixing each row indicates the setting for the
feature that has been assigned to the dials:
This row… Indicates the setting for the…
1 (top)
Feature assigned to the Saturation
dial.
2
Feature assigned to the Hue
dial.
3
Feature assigned to the Shift + Saturation
dial.
4 (bottom)
Feature assigned to the Shift + Hue
dial.
In this window
This icon… Indicates this…
The channel is at it’s default (or home) value.
The dial position (in this example 50%).
• Use the touchscreen dial to scroll left or right across the fixture channels.
When a fixture channel is highlighted the fixture name and settings for
each feature are shown at the bottom of the screen. The feature values
are shown as 0-255
9‐18 StageCLUserGuide,Version1.3
