5. Abouttheconsolecontrols
Consolelayout

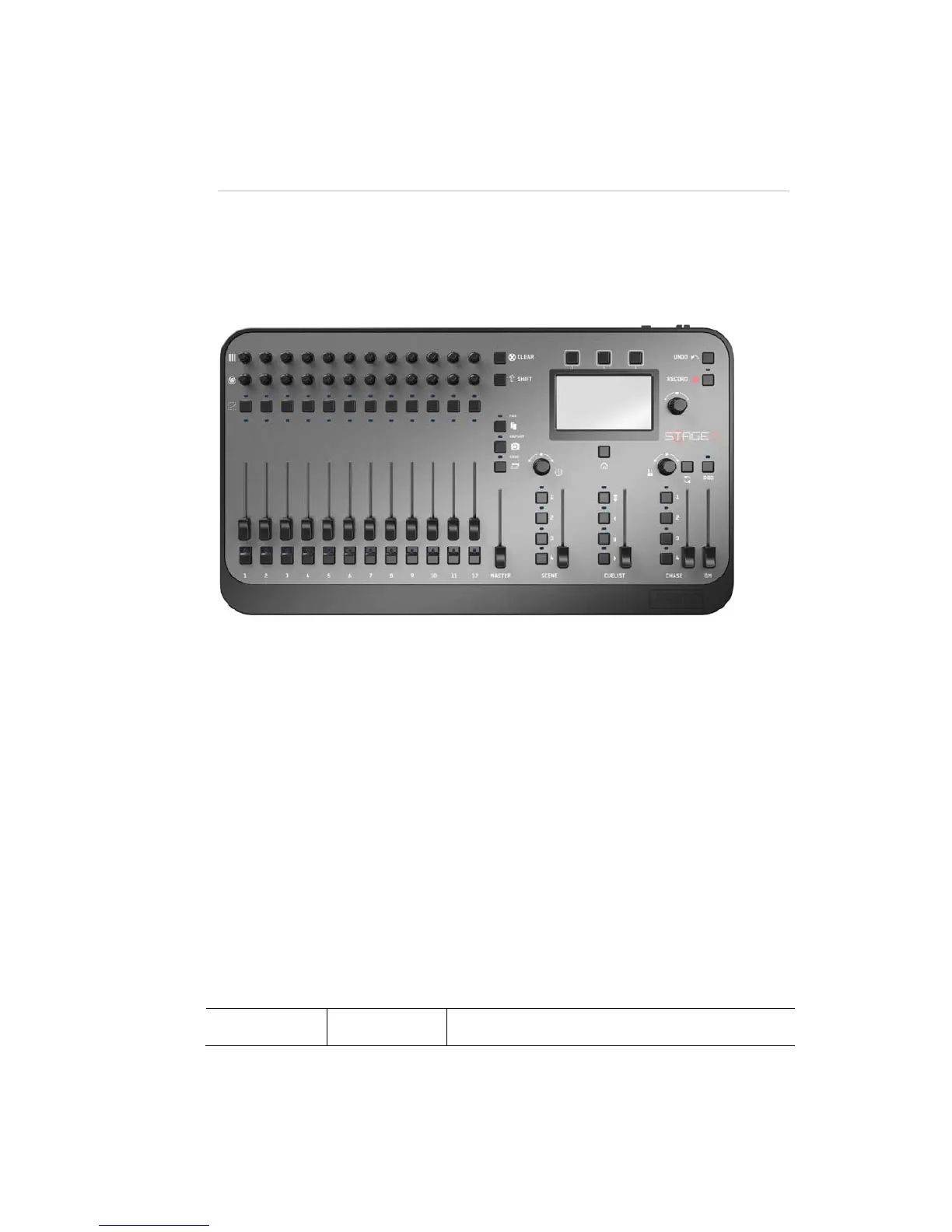

The Stage CL console provide all the faders, dials, switches and displays you’ll
need to control your lighting rig.
The front panel is divided into three main sections:
• 12 sets of fixture controls each with a flash button and fader for setting
intensity, 2 push button dials for setting colour (Hue and Saturation)
and a select button for grouping channels. These controls can also be
used to record and playback Scenes and Chases.
• A touchscreen with a Home button, 3 shortcut buttons and a push
button dial for making adjustments
• Master control faders and buttons to control the scenes, cuelist and
chases that you record
HSIChannelstrip
The Stage CL has 12 control sets, each set lets you control the Intensity and
Colour of 1 fixture or a group of fixtures that are patched to the channel.
These control sets consist of:
This control.. does this…
