Jands Stage CL User Manual

Gettingstarted Settinguptheconsole

2. Gettingstarted

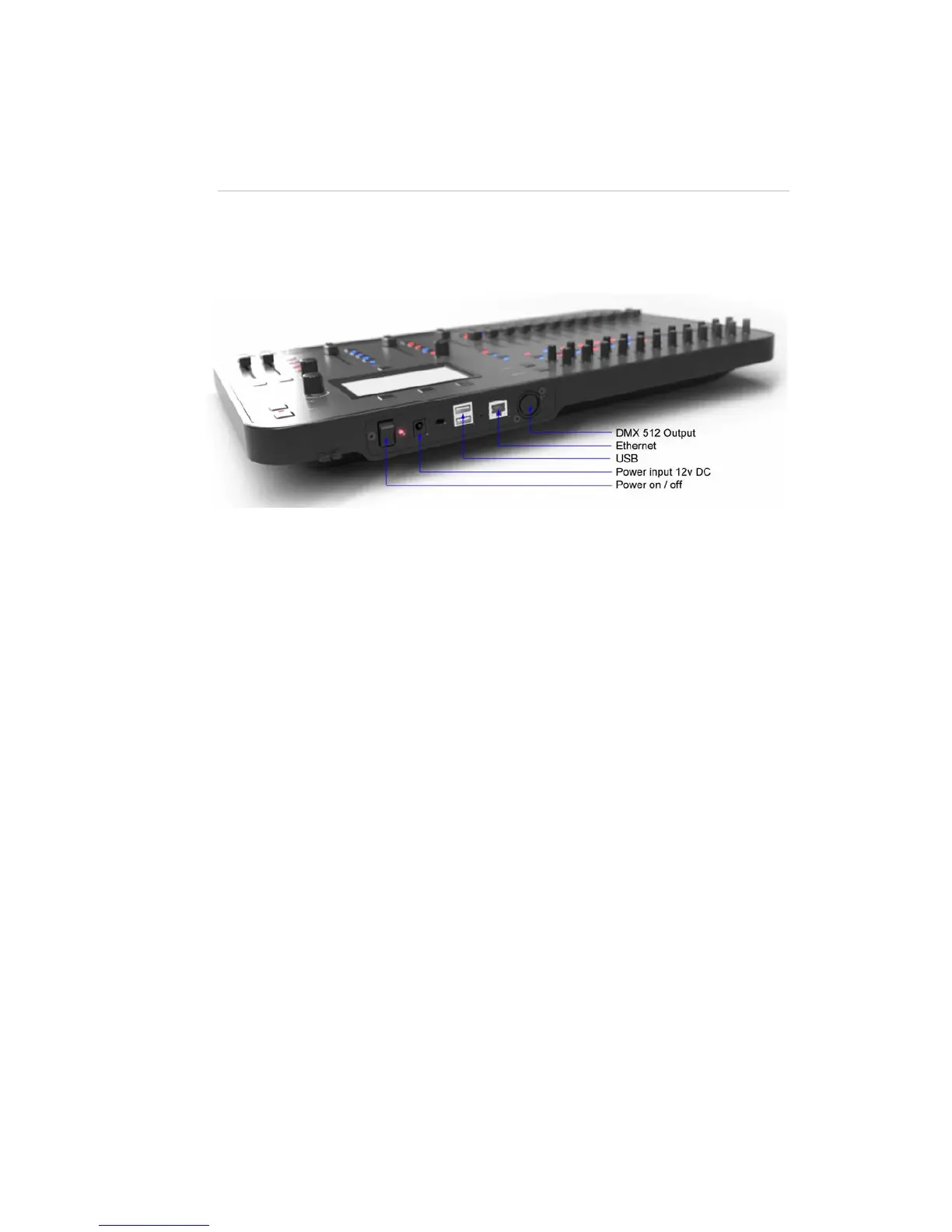

Settinguptheconsole

Power
Connect the Stage CL’s external power supply unit to any mains supply between
100 and 240vAC. Connect the power supply’s 12v DC connector to the Stage CL
and pass the cable through the strain relief moulding.
DMXOutput
The Stage CL can output one universe (512 channels) from its DMX output. Use a
5 pin DMX cable to connect the console to your lights.
Ethernet
The Stage CL supports Art-net broadcasting vand Streaming ACN (sACN) via
the Ethernet (RJ45) connector.
To turn Artnet or sACN On see
Setup on page 11-1
USB
You can connect a USB memory stick to the console to save and load copies of
your show files.
Switchingon
When you switch the console power on the Stage CL starts up and displays the
opening splash screen.
StageCLUserGuide,Version1.3 2‐1

Jands Stage CL Specifications

General

Channels	512
Display	LCD
DMX Channels	512
Submasters	24
Outputs	DMX512
Effects	Built-in effects engine
Motorized Faders	No
MIDI	Yes
Type	Lighting Console
Connectivity	USB, Ethernet
Power Supply	100-240V AC
