Page 28 = Key 1 = Key 2 = Key 3= Maximum or consumption = Minimum or supply.
Programming
The following settings can be carried out in the menu
PRG:
Delete real and reactive energy,
Delete all highest and lowest values "dEL"
Select measured values for the ring buffer ,
Select averaging time for the measured values,
Delete single highest and lowest values,
Read out duration of storage of the ring buffer.

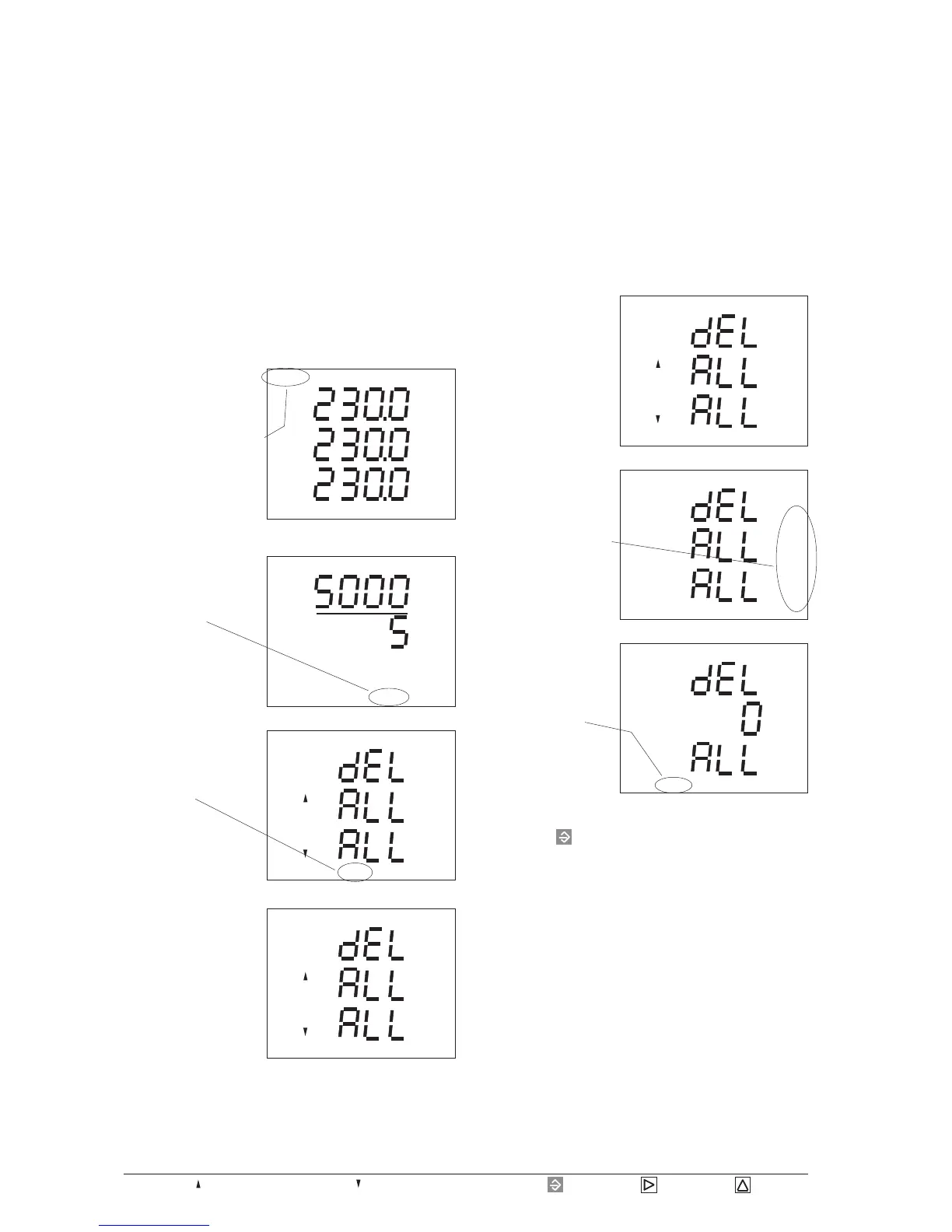

To reach the menu PRG, for example from the indicati-
on of voltage, please proceed like this:
SELECT
PRG
V
V
V
L3
L1
L2
SELECTConfirm with key 1.
In the measured value
indication the text SE-
LECT appears
flashing.
Confirm key 1 again.
Now you are in the
menu CONF.
A
A
SELECT CT
CONF
Confirm key 1 again.
Now you are in the
menu PRG.
Confirm the selection
of the menu PRG using
key 2.
The text SELECT dis-
appears from the dis-
play.
PRG
Delete real and reactive energy
Real and reactive energy can be deleted separately via
keyboard or serial interface. Starting time and running
time will be actualized. If real energy is deleted, all
corresponding tariffs are reset. If reactive energy is
deleted, the meters for inductive and capacitive energy
are reset.
Delete via keyboard
Please go to menu PRG (See chapter programming).
Confirm the selection
of the menu PRG using
key 2. The text SE-
LECT disappears.
PRG
Pressing key 2 again,
the delete menu for
real and reactive
energy appears.
The arrows for mini-
mum and maximum
values disappear.
Select the work to be
deleted by pressing key
1, for example real
energy.
The text EDIT appears
and "ALL" flashes.
Confirming with key 3,
a "0" flashes in the in-
dication.
Pressing key for about 2 seconds, real work will be
deleted and you return to the first programmed measured
value window of the measured value indication!
Wh
VArh
PRG
PRGEDIT
Wh
VArh
Delete via serial interface
In address 5000 a 17Byte large control word is deposited.
A part of this control word is used for deletion of energy:
Byte 7 > 0, delete real energy
and
Byte 8 > 0, delete reactive energy.
In order to overwrite a Byte, first
read control word,
overwrite Byte7/8 with e.g. 1
and rewrite the changed control word to address 5000.
Attention!
Changing the control Byte incorrectly can lead to
malfunctions of the UMG 503.
