Page 91= Key 1 = Key 2 = Key 3 = Maximum or consumption = Minimum or supply
Description Transmission Possible
mode Baud rates
750-312 RS485 9600, 19200
750-315 RS485 9600, 19200, 38400, 115200
750-314 RS232 9600, 19200
750-316 RS232 9600, 19200, 38400
If the UMG 503 is connected to the bus coupling via
RS232 interface, a "1 to 1 cable" must be used.
Connections via RS485 interface are carried out
according to the diagram below.
Bus coupling
The UMG503 can communicate with maximal
6 analogue outputs,
6 digital outputs and
3 digital inputs
via WAGO Bus coupling at maximum. The following
bus couplings can operate with UMG503 with the same
transmission mode and Modbus RTU protocol.
WAGO-Bus coupling
RS485 interface (2-wire)
UMG503
RS485 Interface (2-wire)

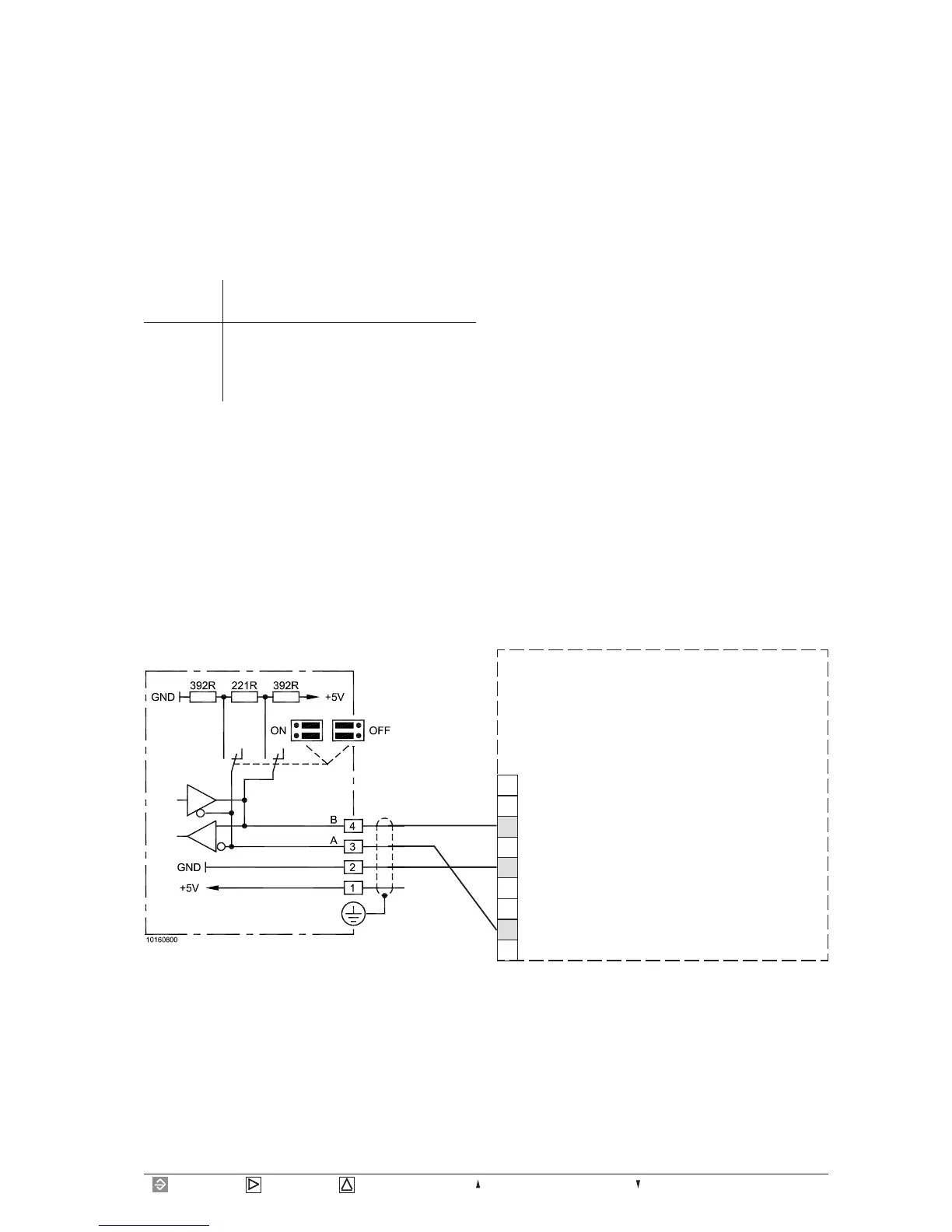

Diagr: Connection between UMG 503 and WAGO-Bus coupling via RS485 (2-wire)
1
2
3 TXD/RXD
4
5 GND
6
7
8 TXD/RXD inverted
9
Schnittstellen-
kabel
UMG 503
