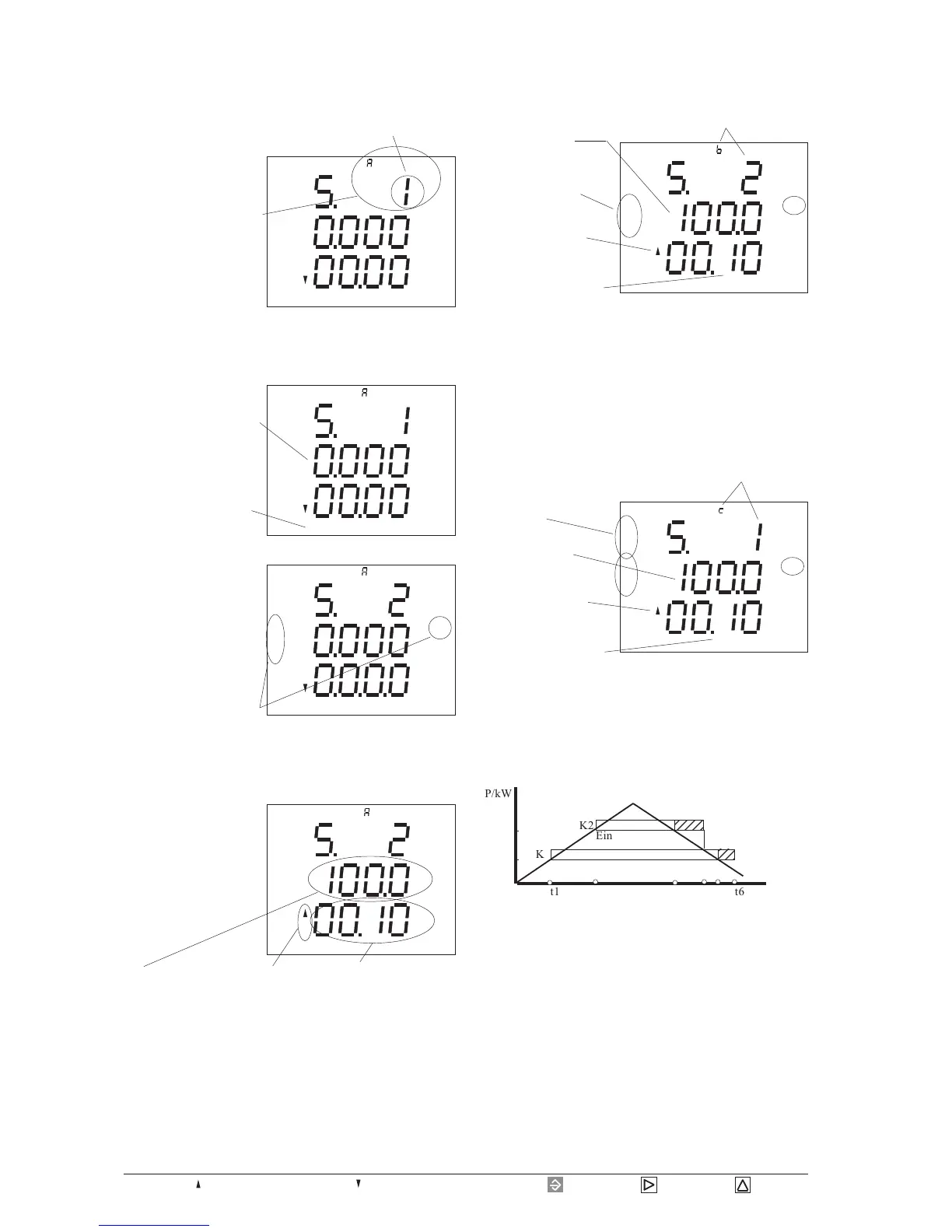

Page 44 = Key 1 = Key 2 = Key 3= Maximum or consumption = Minimum or supply.
t1 100kW were exceeded, relay K1 attracts.
t2 200kW were exceeded, relay K2 attracts.
t3 200kW were underscored. The programmed
minimum connection time for relay K2 is running.
t4 The minimum connection time is over and the
relay K2 releases.
t5 100kW were underscored. The programmed
minimum connection time for relay K1 is running.
t6 The minimum connection time is over, and relay
K1 releases.
Example: Real power, sequence chart
t4t2 t3 t5 t6
P/kW
0
100
200
In menu CONF you
leaf to the indication of
the desired limit group
using key 3.
The limit number here
is indicated as 1A.
Now change over bet-
ween the limit numbers
1A, 1B and 1C using
key 2.
M.S
CONF
Assign measured value:
Pressingkey 1, the
middle indication is
flashing, and a mea-
sured value can be se-
lected.
The text EDIT appears.
Pressing key 2 and then
key 3 you leaf through
the measured value
indications.
A measured value can
be selected using key 1.
Please confirm with key
2.
M.S
CONF
EDIT
kW
M.S
L1
L2
L3
EDIT CONF
Attention!
To be able to distinguish between the measured
values "Sum real power" and "Real power
EMAX", the phases for "Real power EMAX"
are shown in the first line.
Assign limits
With key 1 you can
change between the
ciphers of the limit, the
minimum connection
time and the symbols
for underscoring / ex-
ceeding.
If you have confirmed the selected measured value with
key 2, the first number of the middle indication flashes.
Minimum connection
time
Underscoring/
Exceeding
Limit
The selected numbers or symbols can be changed with
the keys 2 and 3 (see chapter Edit).
If the limit is set, please press key 1 as often as no
numbers flashing any longer. EDIT disappears.
With key 3 you reach the next menu point. The limit is
now saved.
Limit group
Example: Sum real power
limit number 2B
Assigned measured
value= Sum real power.
Switched at exceeding.
Minimum connection
time= 10 seconds
Limit=100kW
kW
M.S
L1
L2
L3
EDIT CONF
Example: Real power EMAX
Limit number1C
Measured value=
Sum "real power
EMAX"
Switches, when ex-
ceeded.
Minimum connection
time= 10 seconds
Limit =100kW
kW
M.S
L1
L2
L3
CONF
kW
M.S
L1
L2
L3
CONF
