Password
Certain functions are protected by a user password.
There are three types of passwords:
Clearance password (8-digits)
User password (4-digits)
Master password (4-digits)
CONF
Select

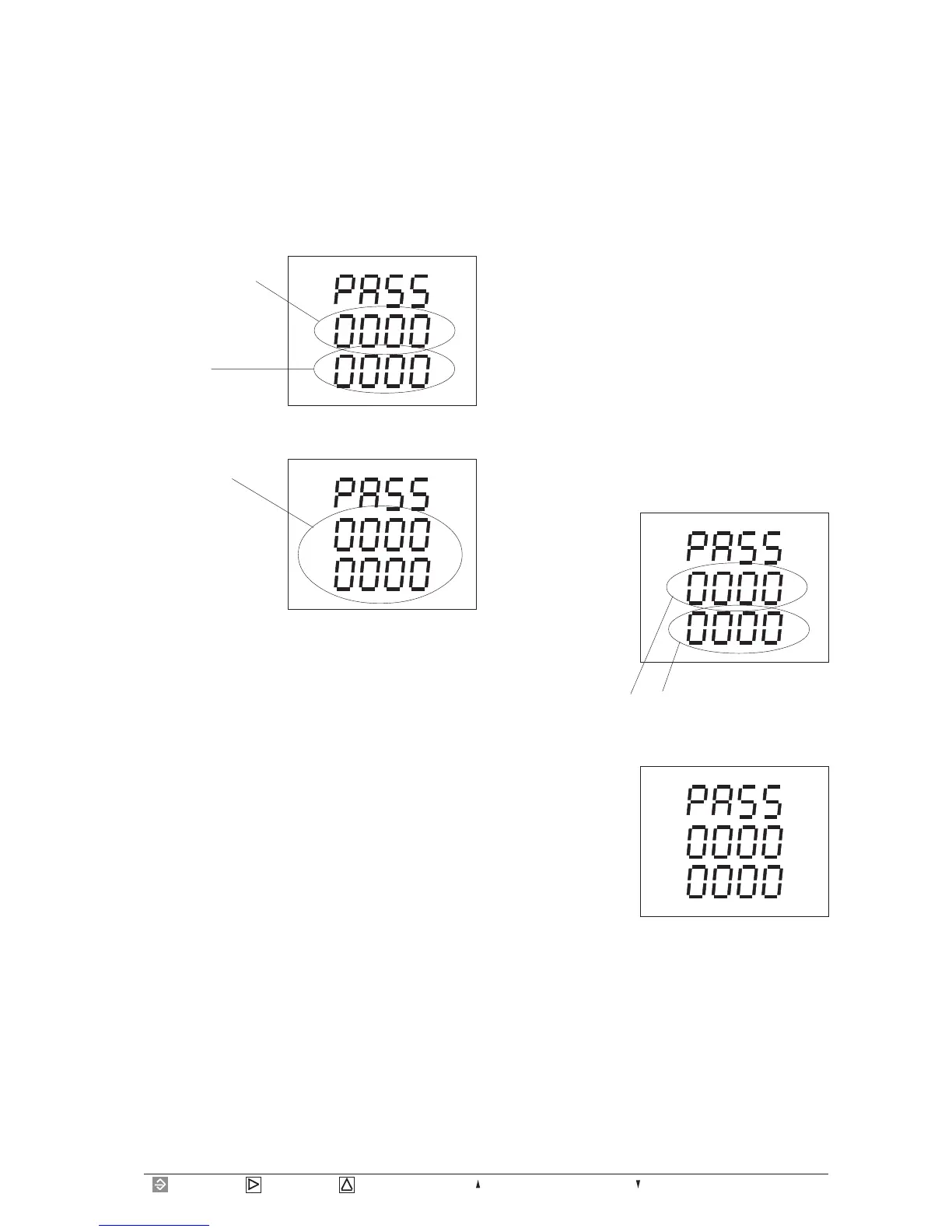

In menu CONF you
move to the indication
of the password with key
3.
In the basic setting a
0000 0000 is indicated.
EDIT CONF
Input
With key 1 you select
the digit to be changed.
The text EDIT appears
within the display.
With key 3 you change
the selected digit.
Clearance password
In the various device variants functions are available as
an option. These function expansions can be released in
the manufacturing works, when ordering.
When later a functional expansion shall be released by
the user, a clearance password is needed with 8 digits.
This password is deposited in the manufacturing works.
Functional expansions (options), that can be released,
are:
Relay outputs
Impuls output
Analogue output
RS232 interface
Auxiliary input
Infra red interface
Three wire measurement
PROFIBUS DP (Slave)
To release a functional expansion via the clearance pass-
word, please proceed as follows:
Function
User password or Ma-
ster password
CONF
Clearance password
CONF
Clearance password "0000 0000"
Save
When the password is put in, please confirm key 1 as
often as no digit is flashing any longer and confirm with
key 2.
When the password is accepted, the password is deleted
and 0000 0000 appears in the indication.
Now the released functional expansion can be called up
in the programming or configuration menu.
