Page 52 = Key 1 = Key 2 = Key 3= Maximum or consumption = Minimum or supply.
CONF
Scale starting
value
Scale end value
The text "AnLo" flas-
hes. Press key 1.
The text EDIT appears
and the first number of
the scale starting value
is flashing.
By further pressing of
the key 1, each cipher
of the scale starting
value or the scale end
value can be selected.

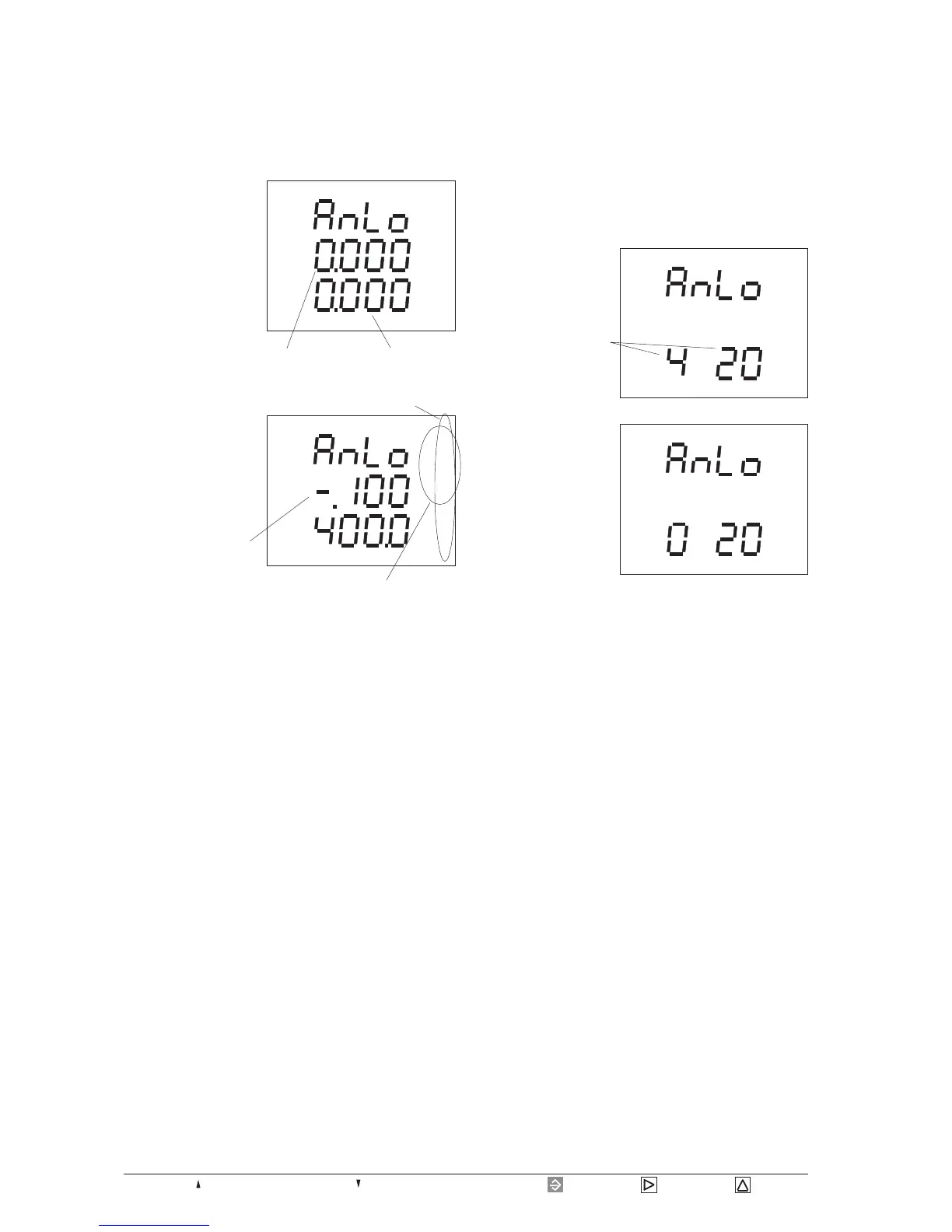

Scale starting value and scale end value
The scale starting value and the scale end value can be
set in the indication range of the corresponding measu-
red value
With key 3, the flashing
cipher can be changed.
With key 2 the decimal
point is moved.
In the first digit of the scale starting and scale end value,
the sign "-" can be set. The sign appears after the number
"9".
Set output range
The output range for the external analogue outputs can-
not be programmed, as it is fixed for the used type of the
function clamps.
The output range of the internal analogue output of the
UMG 503 can programmed to 0 .. 20mA or 4 .. 20mA. In
delivery condition, the analogue output is preset to 4 ..
20mA.
The text "AnLo" is
flashing. Pressing key2,
the output range is in-
dicated in "mA".
Output range
(4..20mA / 0..20mA)
Select the output range
with key 1. The text
EDIT appears.
Pressing key 3 you
select the output range
from 0 to 20mA.
After selecting the last cipher of the scale end value the
text EDIT disappears. Now change to the next menu
using key 3.
Sign
Scale starting value = - 0.100MW = - 100kW
Scale end value = 400kW
L1
L2
L3
W
EDIT
L1
L2
L3
W
M
k
CONFEDIT
CONF
EDIT
