1-10

Section 1 GEN5™ Series Printer General Information

Entire Unit Outside Dimensions



(continued)

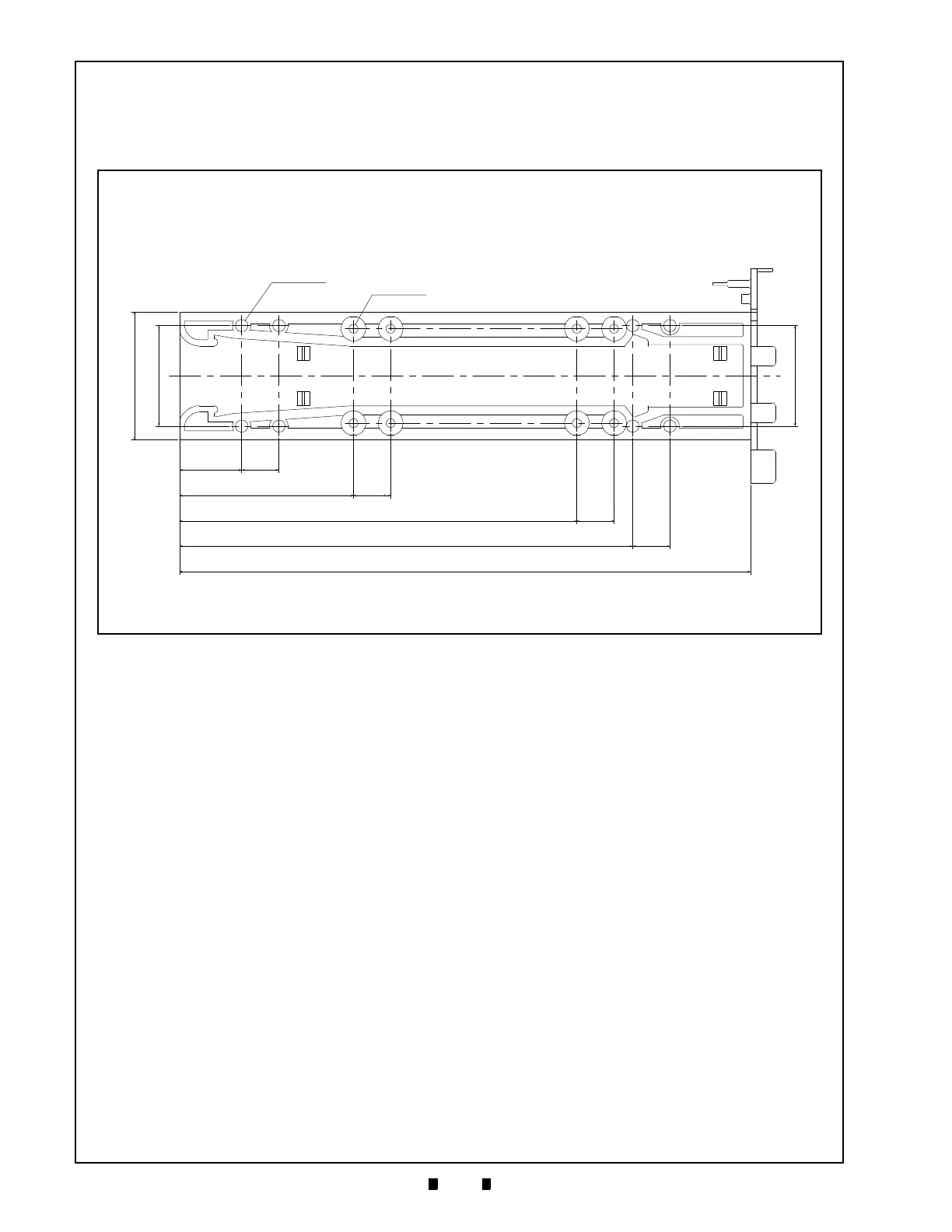

Figure 1-7 illustrates the GEN5 Printer Unit’s Mounting Rail Dimensions.

Mount Rails with a minimum of 4 each M4 x 4 screws

or using a Mounting Plate with M4 x 4 Studs

Printer Unit must be mounted to a grounded metal plate

8xØ4.57

8xØ6.35

19.05

88.9

31.75

203.2

231.78

291.97

19.05

51.41

65.41

NOTE: All dimensions in millimeters

Figure 1-7 GEN5 Printer Unit Mounting Rail Dimensions
