Section 2 GEN5™ Series Printer Installation
Preventive Maintenance
JCM strongly recommends regularly scheduled
Preventive Maintenance procedures to ensure that
the GEN5 Printer performance meets factory speci-
fications for trouble-free operation.
Loading Tickets
To load tickets into the GEN5 Printer, perform the
following steps:
1. Open the EGM’s Service Door.
2. Pull the Printer forward on its Sliding Base until
it stops.
3. Fan the Ticket stack, then place it
in the Ticket
Tray so that it lays flat (Figure 2-2 a).
4. Insert a Ticket into the Ticket In Slot (Figure 2-3
a). The Ticket automatically
feeds into the Printer
and aligns in the correct position for printing.
5. Reinstall the Printer in the EGM by pushing the
Sliding Base into the EGM until it stops.
6. Secure the EGM’s Service Door.
Paper Feed Button
To feed Paper into the GEN5 Printer or to Print a
Configuration Ticket, proceed as follows:
1. Press and hold the Feed Button to feed paper
through the Printer or to advance to the top of the
next Ticket (Figure 2-4 a).
2. Press the Feed Button twice wit
hin two (2) sec-
onds to print a Configuration Ticket.
NOTE: A black Paper Index Mark
should be visible along the right edge
of the Ticket stack (Figure 2-2 b).

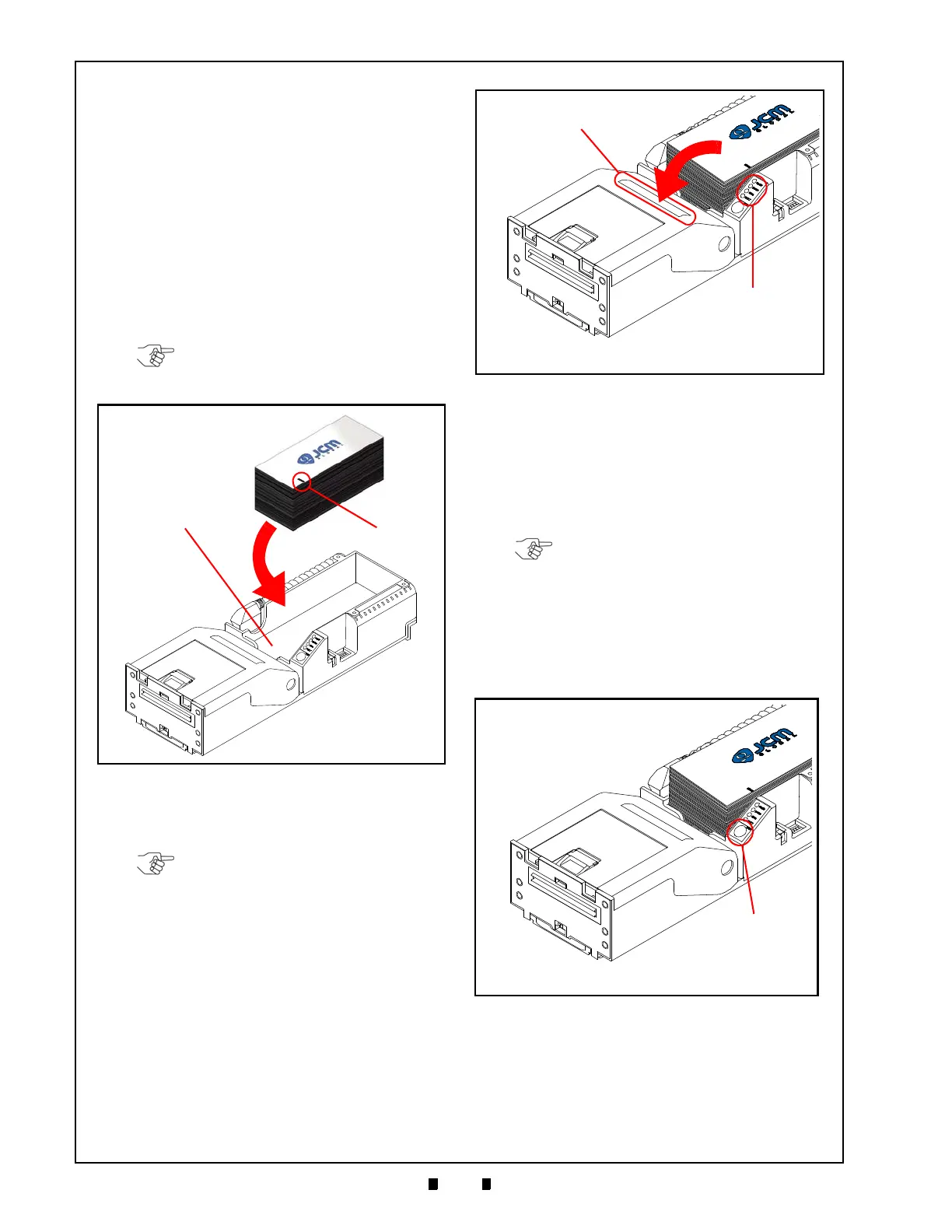

Figure 2-2 Stack Tickets in Ticket Tray
a
b
NOTE: The Printer’s LED Status
indicator (Figure 2-3 b) changes from
YELLOW (Paper) to GREEN (Ready).
Figure 2-3 Load Ticket Stack into Printer/
LED Status
a
b
NOTE: Before using the Paper Feed
Button, follow the Loading Tickets
procedure to ensure Tickets are properly
loaded into the GEN5 Printer.
Figure 2-4 Paper Feed Button
a
