Disassembly/Reassembly GEN5™ Series Printer Section 4
Presenter Rollers
To remove the Lower Idler Presenter Rollers, pro-
ceed as follows:
1. Remove two (2) screws securing the Lower Idler
Roller and Springs (Figure 4-15 a
1
and a
2
).
2. Lift the Roller Cover (Figure 4-15 b) off of the
Assemb
ly.
3. Remove two (2) tension springs (Figure 4-15 c
1
and c
2
).
4. Lift the Idler Roller (Figure 4-15 d) and Mount-
ing Brackets
(Figure 4-15 e
1
and e
2
) away from
the Presenter.
5. Remove four (4) screws (Figure 4-16 a
1
thru a
4
)
securing the Motor Mounting Bracket 
(Figure 4-16 b).
6
. Remove two (2) Snap Rings securing the two
gears (Fi
gure 4-17 a
1
and a
2
).
7. Remove two (2) Snap Rings on the Right side
(Figure 4-18 a
1
and a
2
).
8. Remove the four (4) Roller Bushings (2 Left/2
Right) (Figure 4-19 b
1
thru b
4
).
9. Remove the two (2) Presenter Rollers (Figure 4-
19 c
1
and c
2
).

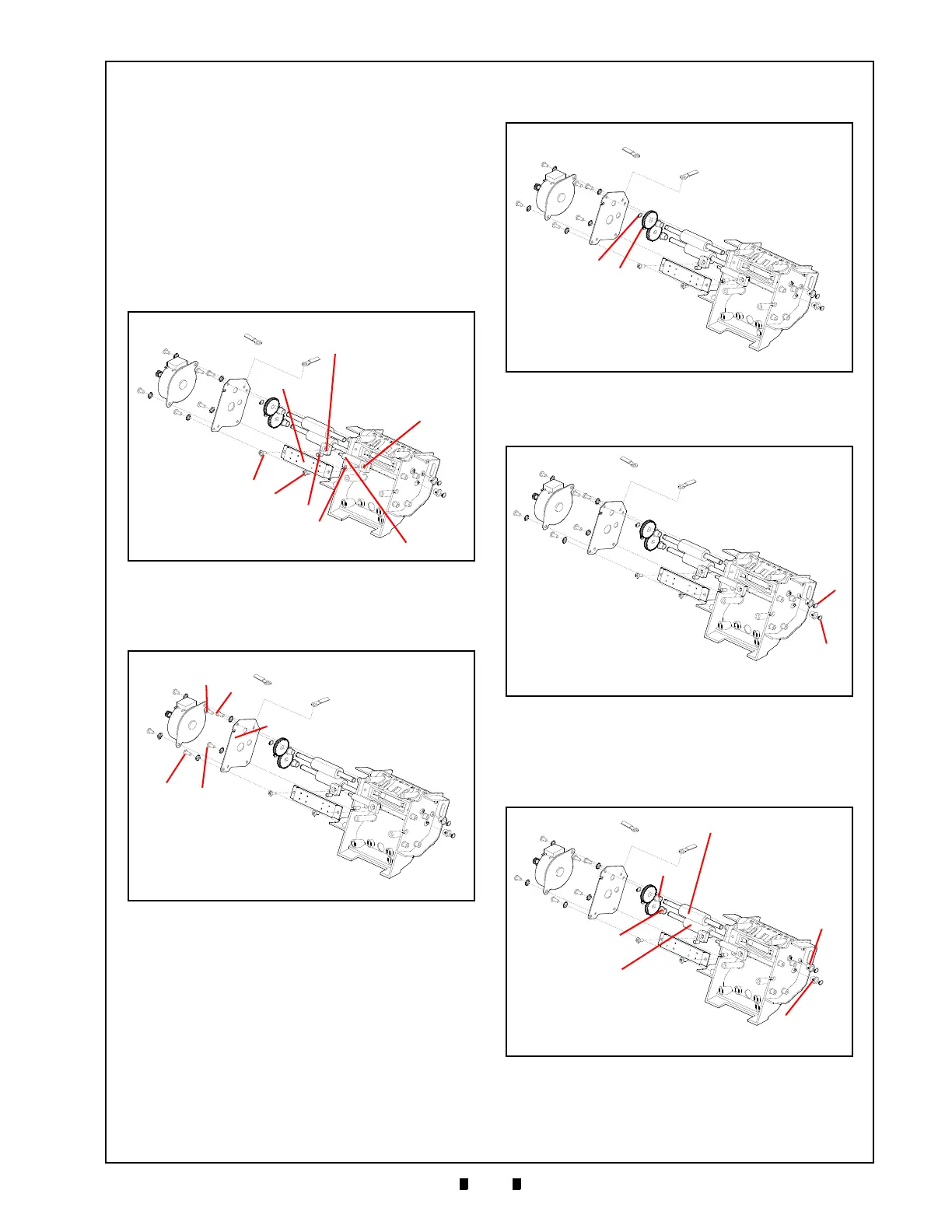

Figure 4-15 Remove Lower Idler Roller
a
1
a
2
c
1
c
2
d
b
e
1
e
2
Figure 4-16 Remove Motor Mounting Bracket
a
1
a
2
a
3
a
4
b
Figure 4-17 Remove Snap Rings Left
a
1
a
2
Figure 4-18 Remove Snap Rings Right
a
1
a
2
Figure 4-19 Remove Roller Bushings and 
Presenter Rollers
b
3
b
4
b
1
b
2
c
1
c
2
