MAINTENANCE
TURN OFF all POWER supply switches.
Tool
Phillips Screwdriver,
Long Nose Pliers, Pliers
: Securing Screw for Wiring (M5)
: Securing Screw for Wiring (M6)

: Securing Screw for Wiring (M8)
: Securing Screw for Wiring (M4)

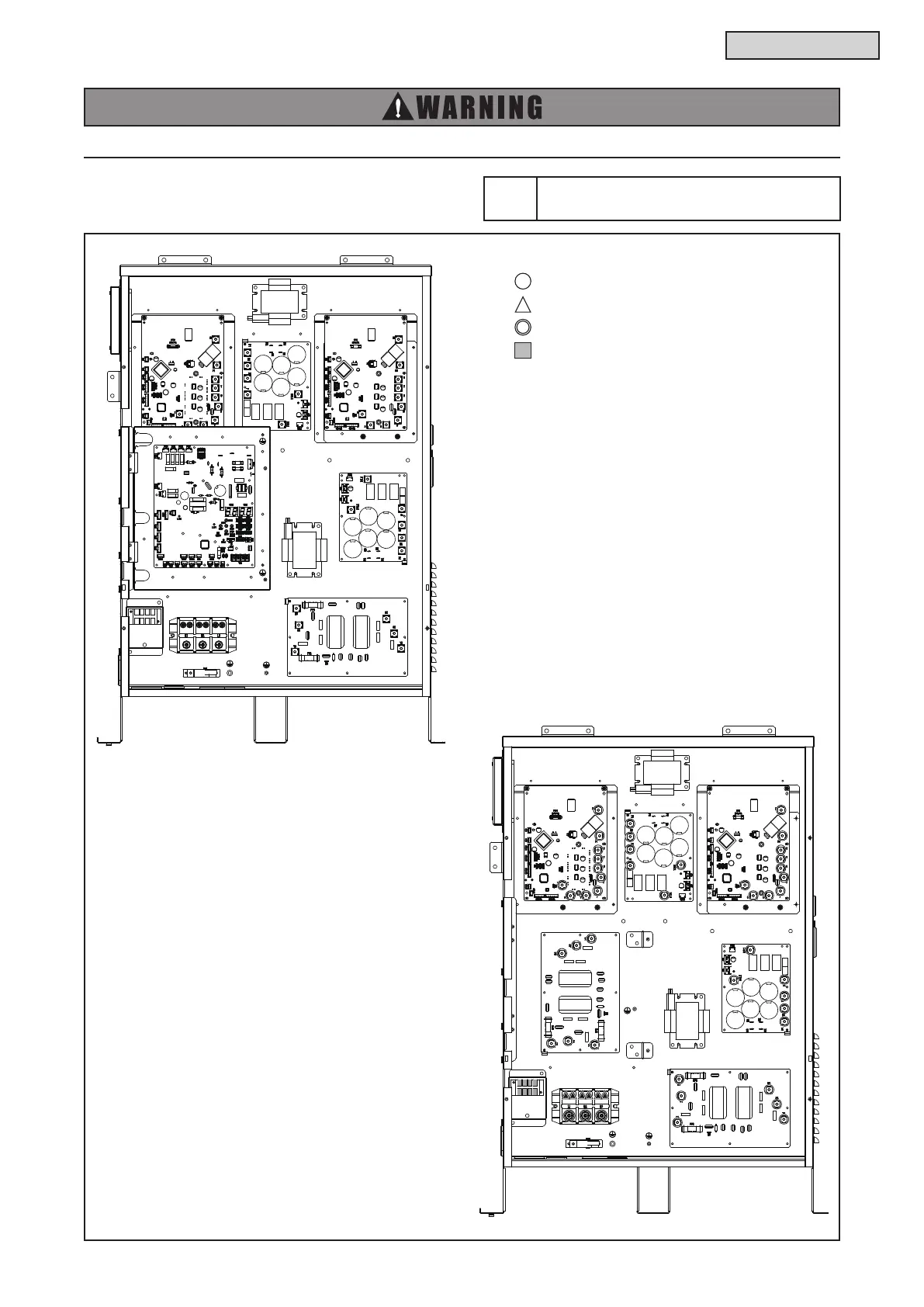

1. Noise Filter (NF1, NF2)
Securing Screw for Wiring (12 places)
2. Inverter PCB (INV1, INV2)
Securing Screw for Wiring (20 places)
4. Terminal Block (TB1)
Securing Screw for Wiring (M6) (six places)
Securing Screw for Wiring (M8) (three places)
4. Terminal Block (TB3)
Securing Screw for Wiring (M4) (eight places)
5. Main Power PCB (MPB)
Securing Screw for Wiring (12 places)
Refer to previous page for item No.1 to 5.
