Johnson Controls YZ - Page 17

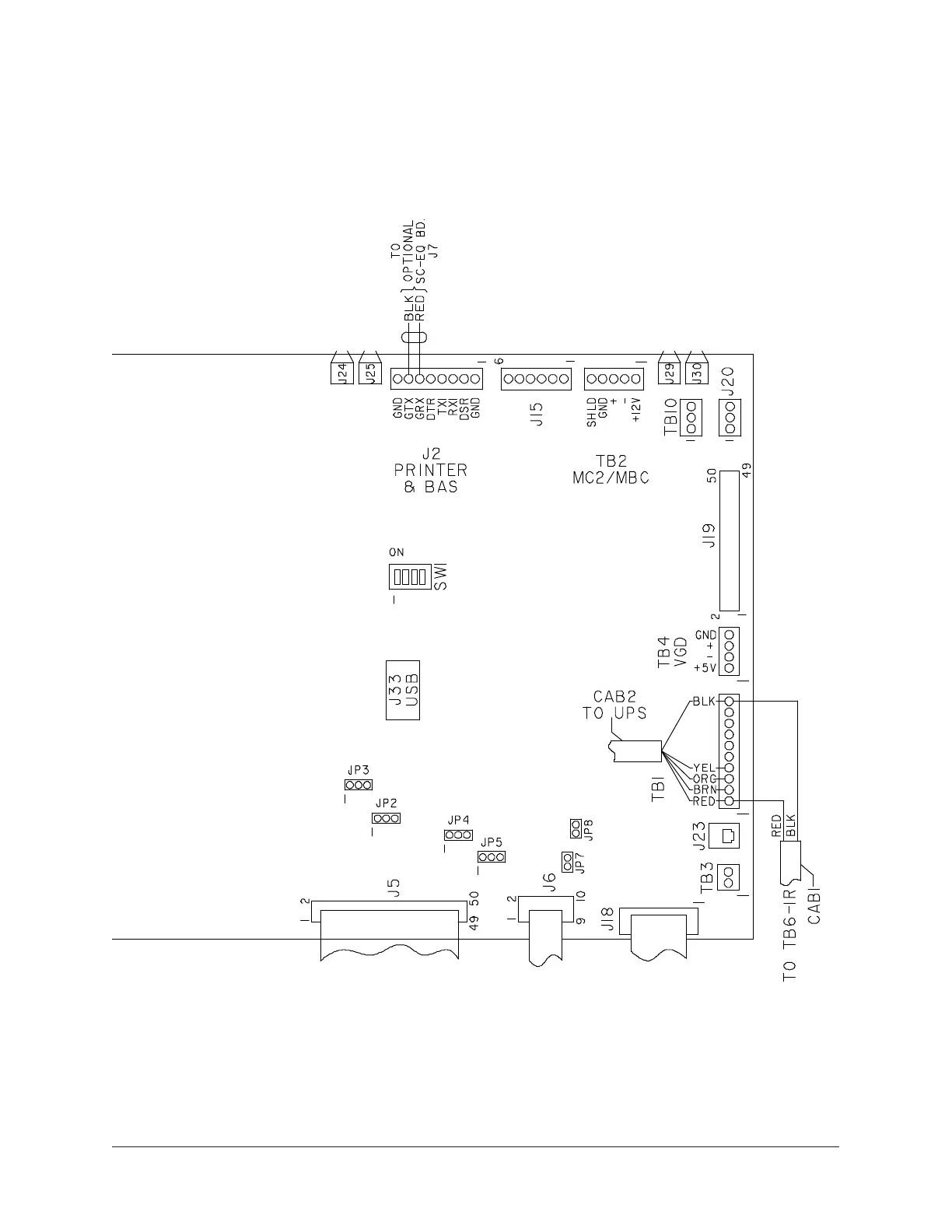

Figure 3: OptiView control panel microboard (031-03630)
LD27256
035-26576-000
REV D, SHT. 1
MICROBOARD
031-03630
To Display
(On Door)
(See Sheet. 2)
To Display
(On Door)
(See Sheet. 2)
To Keypad
(On Door)
17Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
