OptiView control panel I/O board (031-03631)

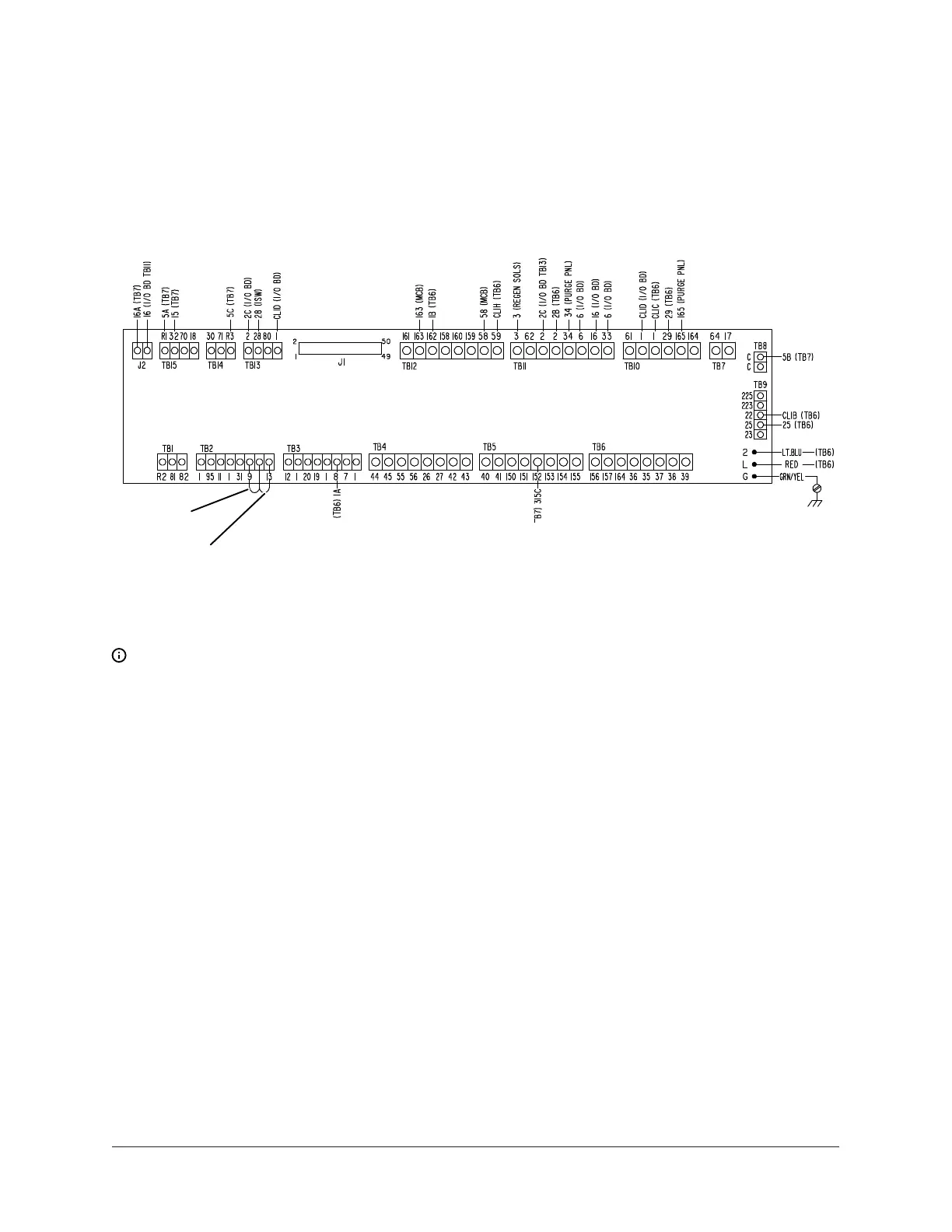

Figure 9: OptiView control panel I/O board (031-03631)
LD27265
035-26576-000
REV D, SHT. 1
Jumper 1
Jumper 2
I/O Board
031-03631
Note: See Figure 7 and Figure 8 for schematic details.
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller26
