Johnson Controls YZ - MBC (LV and HV) connections for cables 129 and 132

MBC (LV and HV) connections for cables 129 and 132

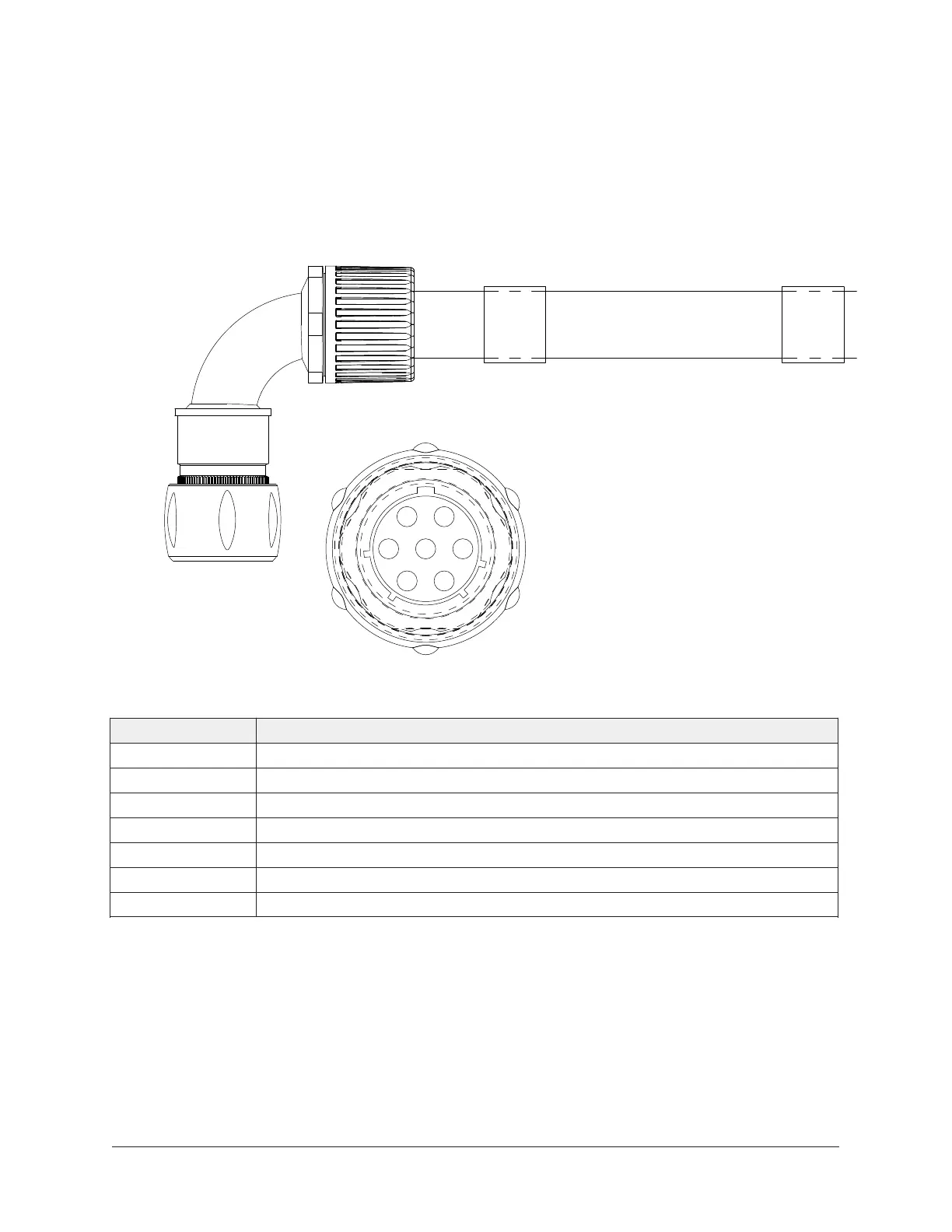

Figure 32: MBC connections for cable 129
6
1
5
4
3
2
GND
LD23495a
VSD END
025-49211-000 Wire Entry View
Cable 129: VSD to MBC (HV)
Table 9: Cable 129: VSD end
Pinout No. Wire/Signal names
1 Not used
2 RED/300VDC (CL)
3 BLU/15VDDC (CL)BLK/COM
4 BLK/COM
5 ORG/GND
6 Contact Pin
GND Bare/Drain
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller54
