OptiView control panel TB6 top view detail

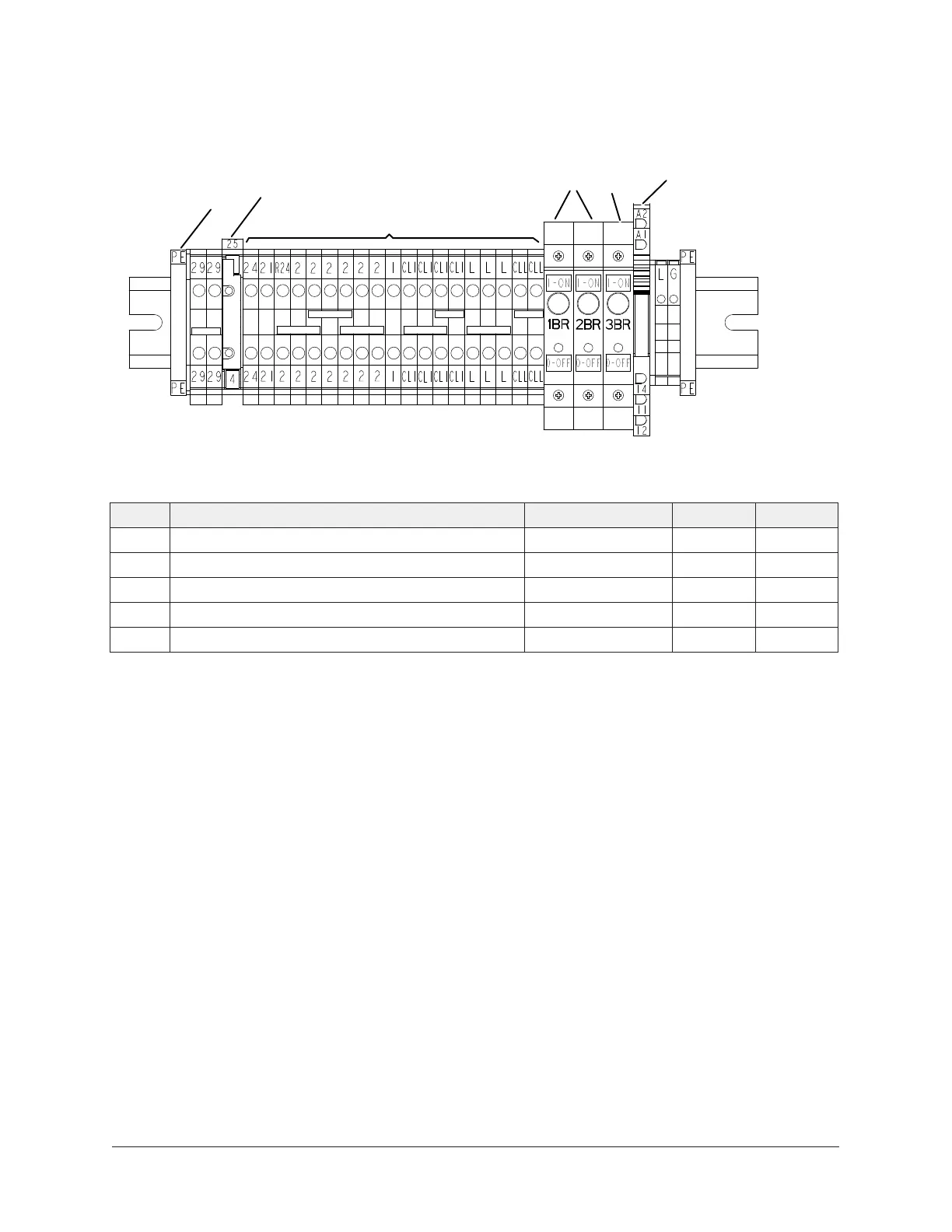

Figure 13: OptiView control panel TB6 top view detail
LD23454
025-49853-000
REV -, SHT.1
2
1
1
3
4
5
Table 3: Bill of material for 025-49853-000
Item Description Part number SAP Quantity
1 Terminal, W-Series. WDU 4, 1020100000 025-44576-000 837883 21
2 Fuse Holder, W-Series, Fuse Terminal 025-46331-000 1055323 1
3 Circuit Breaker Assembly, 6 AMP 325-44812-006 770057 2
4 Circuit Breaker Assembly, 16 AMP 325-44812-016 770058 1
5 Relay, TRS 120VUC ICO, AU, 1123040000 025-49306-000 5326692 1
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller30
