OptiView connections
Wiring harness and cable assembly for OptiView control
panel

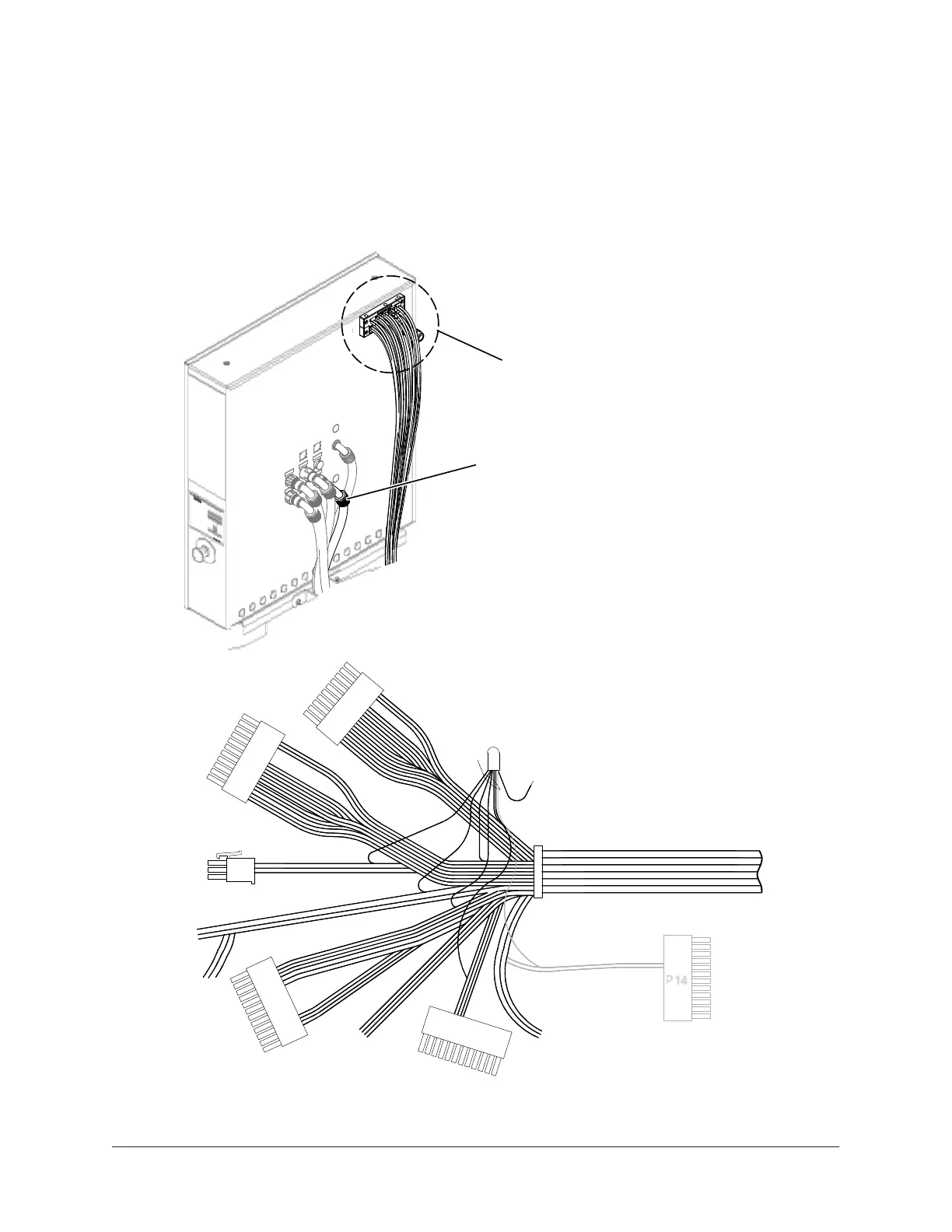

Figure 36: Wiring harness and cable assembly for OptiView control panel
LD27278
P8
P9
P1A
P7
P10
Strip
Drain
Wires
The below wiring harness plugs into the
back of the Optiview™ panel
From Cable
52 to TB7-53
and TB7-16
From Cable 19 to
TB7-162, TB15-18
and TB15-70
Red to TB7-162
Grn to TB7-5
From Cable 23
Red to TB7-162
Black to TB7-5
White to TB6-2 Microboard
092-62925-000
REV B, SHT.2
From Cable
1,2,4,5,6,7&9
From Cable
11,12&15
From Cable 24
P7 From
Cable 19
From Cable
29 & 48
092-51870-009
REV F, SHT.1
Cable 137
Optiview to Motor Cooling Booster (MCB)
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller62
