Purge cable connections details for OptiView control panel

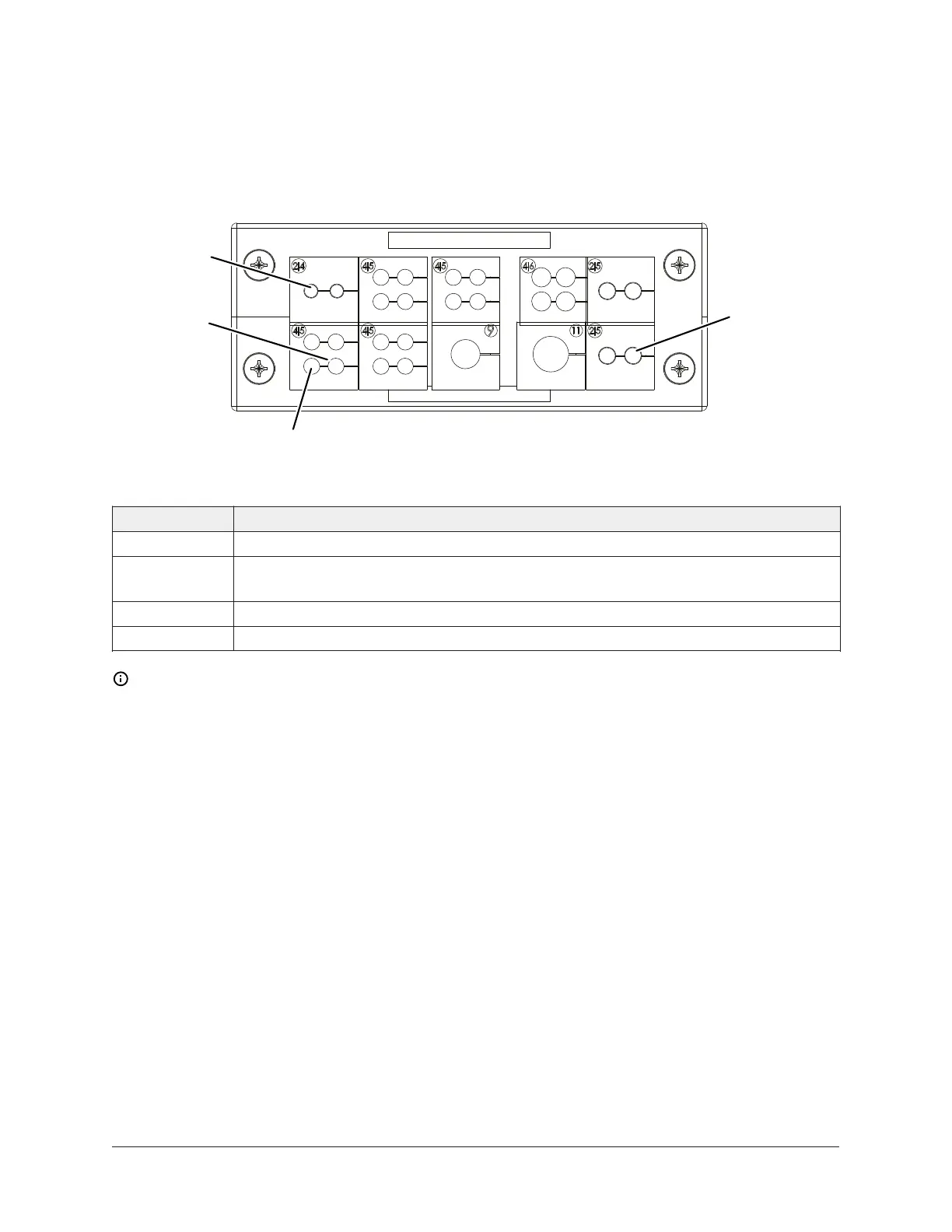

Figure 21: Purge cable connections details for OptiView control panel
LD27272
092-62925-000
REV B, SHT.2
Shielded cable entry view from outside of the panel
2
1
3
4
Item Description
1 Cable 51: Purge Tank High Level Switch
2
Cable 22: Optional HGBP Actuator. Remove grommet plug and insert fiber cable
from HGBP kit sales order.
3 Cable 49: Purge Coil Temp.
4 Cable 50: Purge Suction Temp.
Note: Before assembling the grommet system to the OptiView control panel, remove the
grommet cable and insert fibre cables from the HGBP (optional) sales kit.
37Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
