MBC connections for cable 19 and cable 120

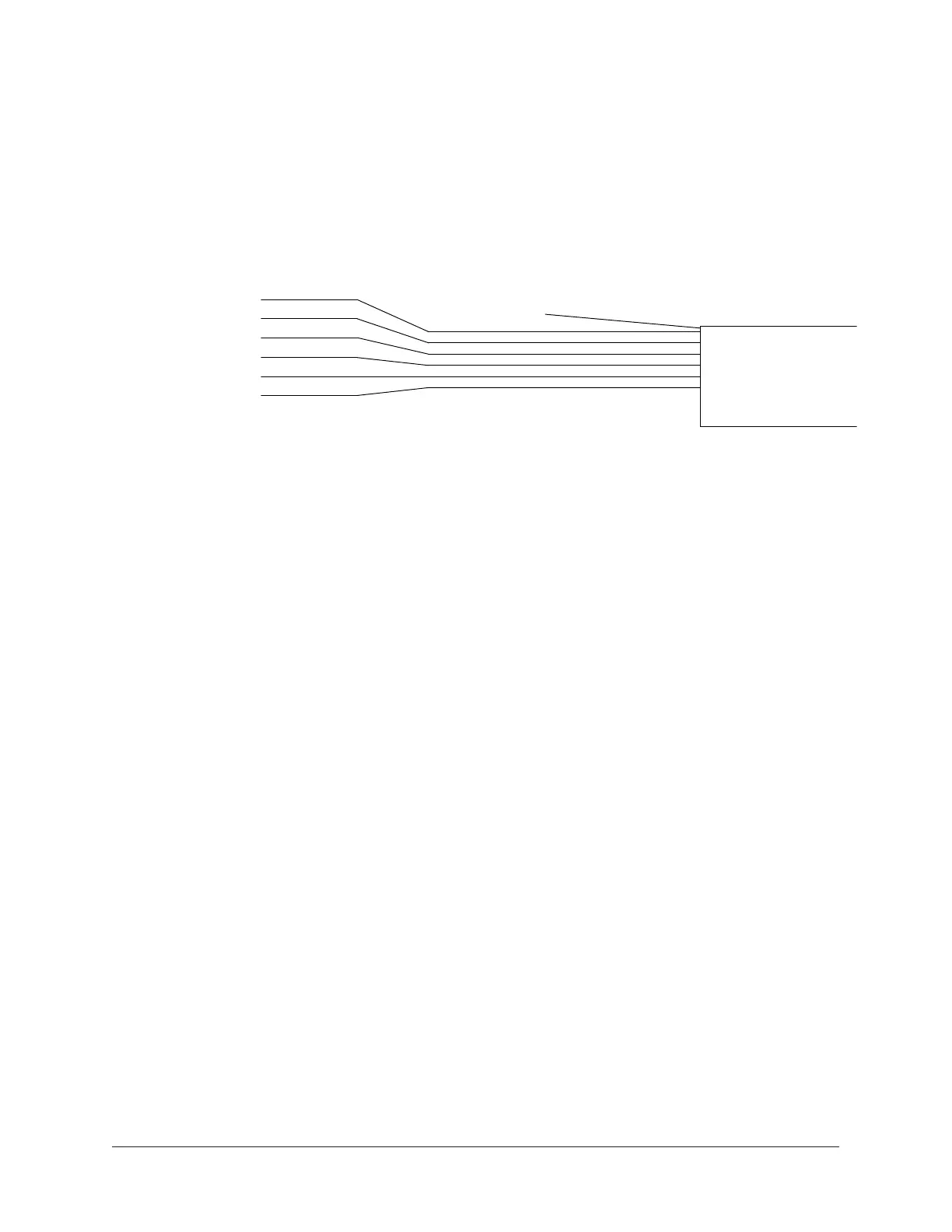

Figure 34: MBC connections for cable 19
LD27276a
Cable 19:
MBC to OptiView
TB7-162
03631 TB15-70
TB7-162
RED
RED
BLK
03631 TB15-18
P7-16
RED
BLK
P7-3
BLK
DRAIN
OPTIVIEW END
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller58
