Johnson Controls YZ - Purge connections for cables 130 (VSD) and 131 (OptiView)

Purge connections for cables 130 (VSD) and 131 (OptiView)

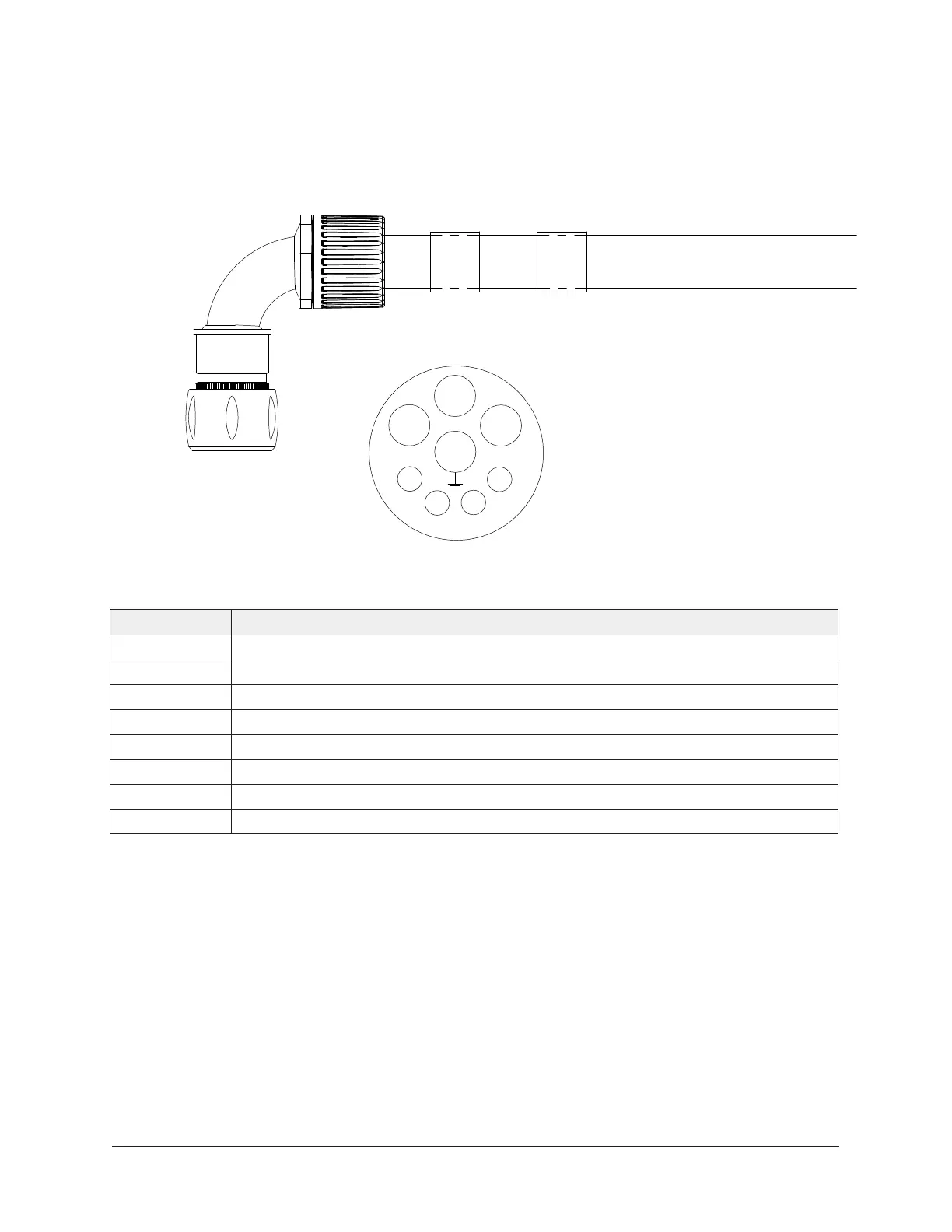

Figure 25: Purge connections for cable 130 (VSD)
LD23481a
GND
1
2
3
A
B
C
D
VSD END
Cable 130: Purge Panel to VSD
025-45932-000 Wire Entry View
Table 5: Cable 130: VSD end
Pinout No. Wire/Signal names
1 BLK/L
2 WHT/2
3 Not used
GND GRN-YEL/GND
A Not used
B Not used
C Contact Pin
D Not used
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller44
