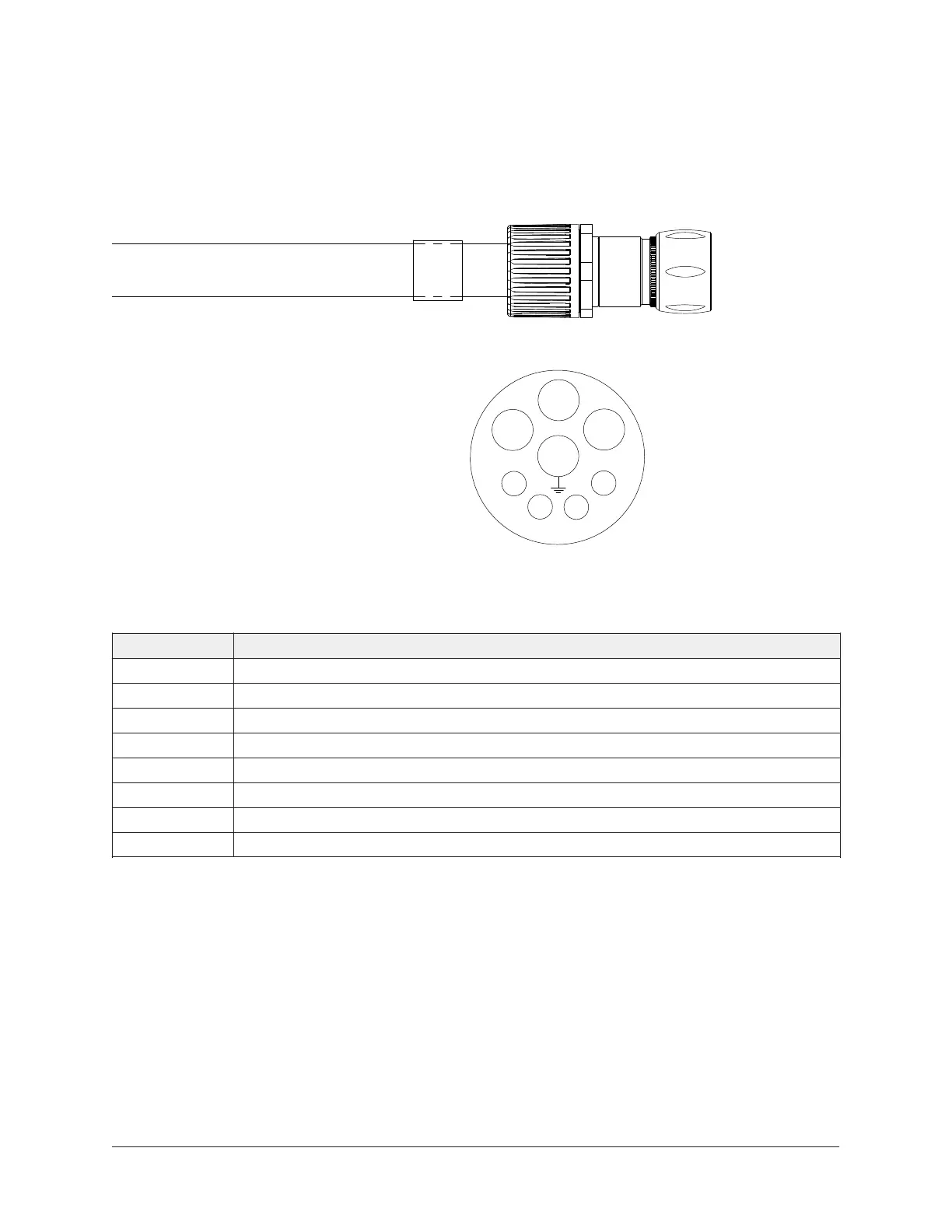

Figure 25: Purge connections for cable 130 (VSD)
1
2
3
A
B
C
D
GND
LD23482a
092-51870-013
REV E, SHT. 1
PURGE PANEL END
025-45933-000 Wire Entry View
Cable 130: Purge Panel to VSD
Table 6: Cable 130: Purge panel end
Pinout No. Wire/Signal names
1 BLK/L
2 WHT/2
3 Not used
GND GRN-YEL/GND
A Not used
B Not used
C Not used
D Key Insert
45Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
