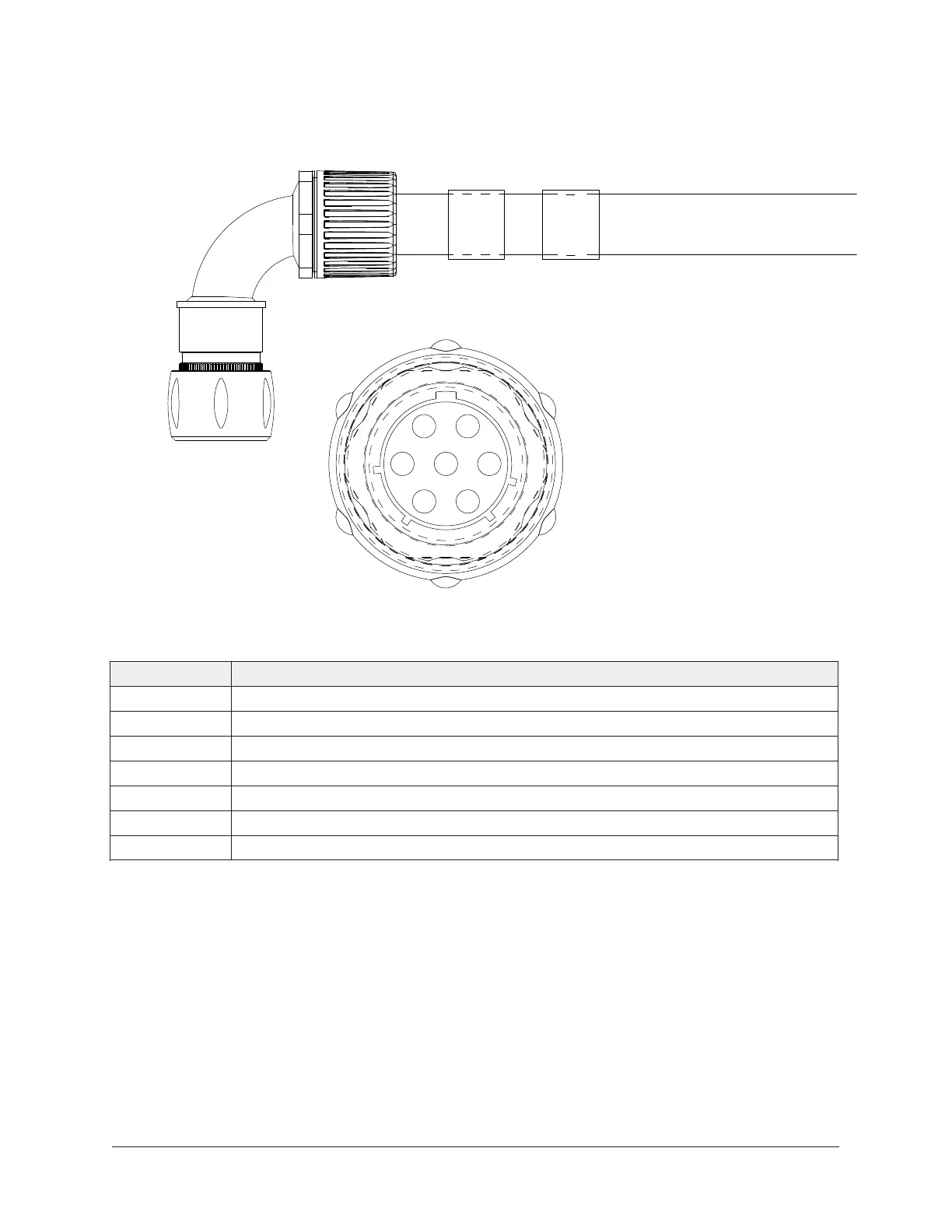

Figure 26: Purge connections for cable 131 (OptiView)
LD23481b
6
1
5
4
3
2
GND
Cable 131: Purge Panel to OptiView
OPTIVIEW PANEL END
025-49211-000 Wire Entry View
Table 7: Cable 131: OptiView panel end
Pinout No. Wire/Signal names
1 Not used
2 Not used
3 BLK/29A
4 BLK/165
5 BLK/34
6 WHT/2L
GND Contact Pin
