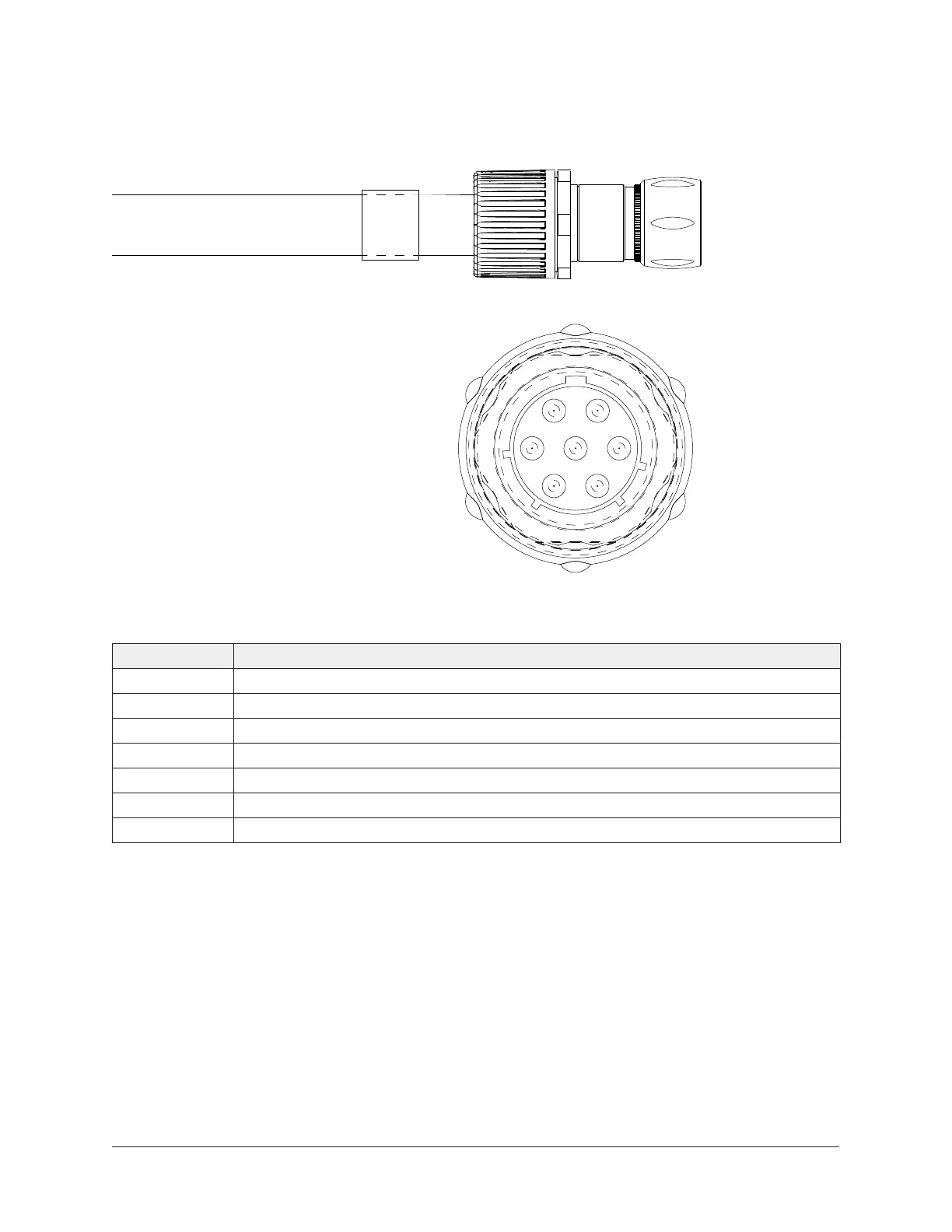

Figure 26: Purge connections for cable 131 (OptiView)
1
6
2
3
4
5
GND
LD23482b
PURGE PANEL END
092-51870-014
REV E, SHT. 1
025-49301-000 Wire Entry View
Cable 131: Purge Panel to OptiView
Table 8: Cable 131: Purge panel end
Pinout No. Wire/Signal names
1 BLK/29A
2 Contact Pin
3 BLK/165
4 BLK/34
5 WHT/2L
6 Not used
GND Not used
