OptiView motor and discharge temp. cable connections

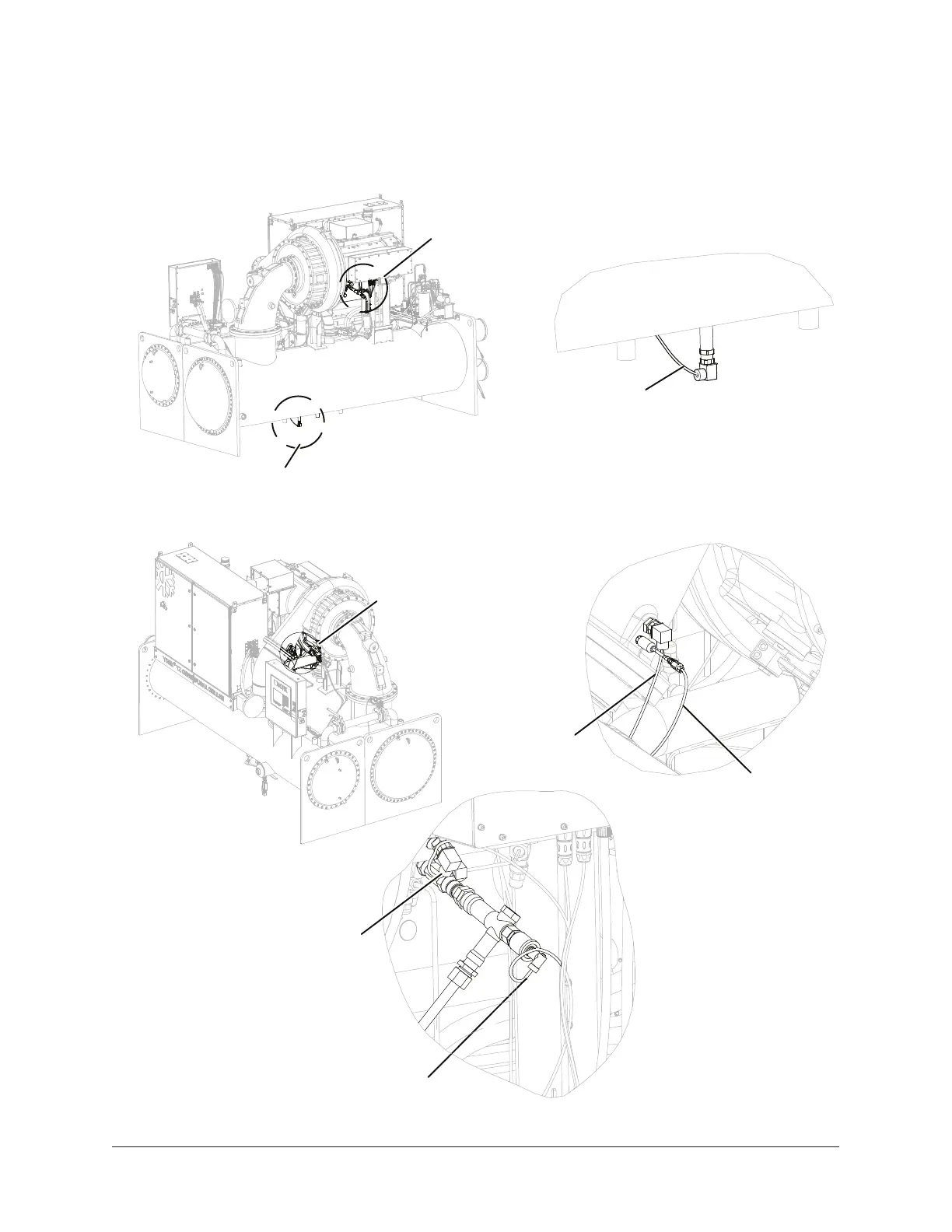

Figure 47: OptiView motor and discharge temp. cable connections
LD23075
092-62925-000
REV B, SHT.8
Detail J
Cable 7
Evaporator Refrigerant Temp.
See Detail L
Detail L
Cable 2
Discharge
Cable 39
HPCO Switch
Detail K
Cable 33
Motor Cooling Valve
See Detail K
See Detail J
Cable 29
Motor Housing Temp.
73Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
