Purge connections for cable 128 (purge panel to inlet sols.
ends)

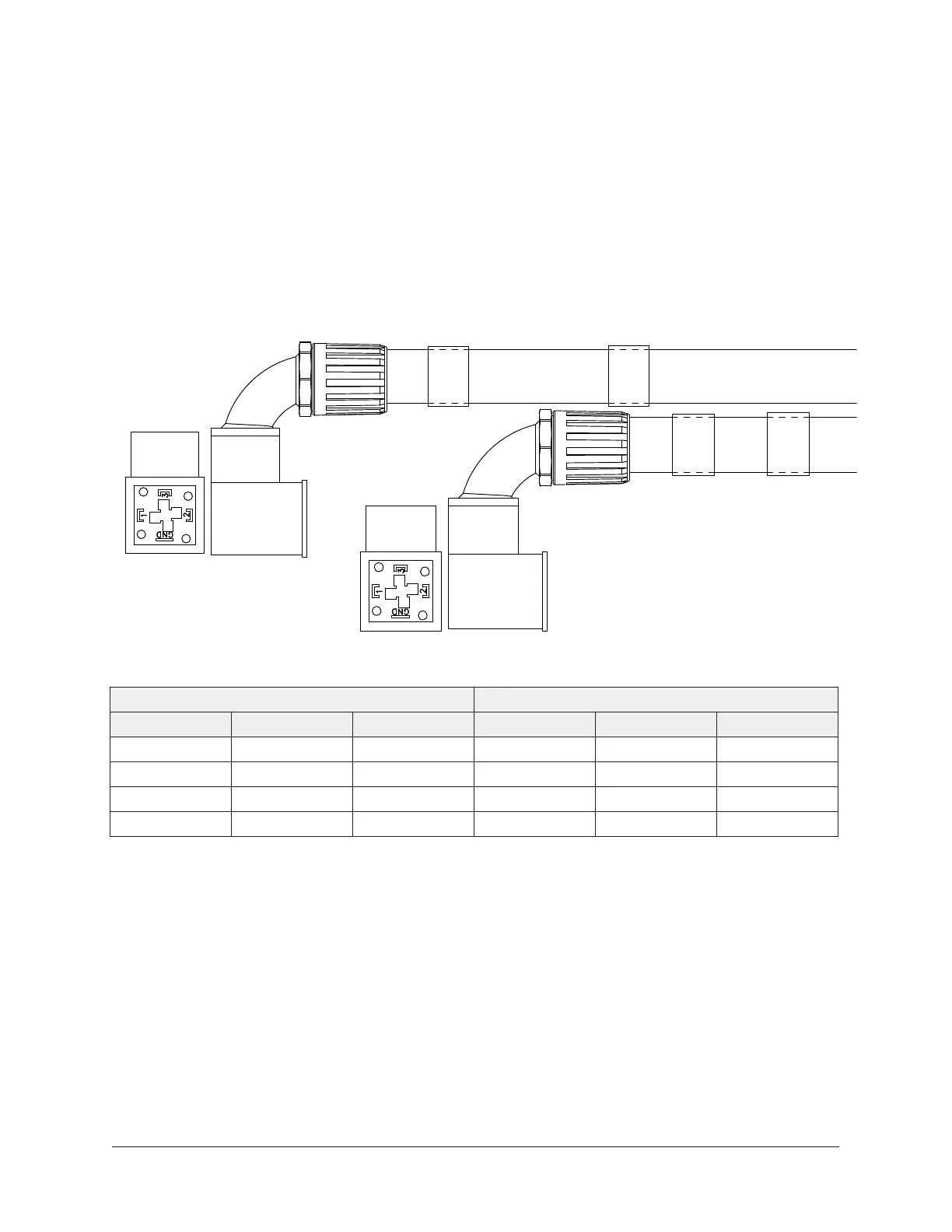

Figure 24: Purge connections for cable 128 (purge panel to inlet sols. ends)
LD27176
PURGE PUMP
SOL END
PURGE INLET
SOL END
Cable 128:
OptiView to Purge Inlet Sols.
Purge pump sol. end Purge inlet sol. end
Location Wire code Color Location Wire code Color
1 29B BLK 1 29C BLK
2 2M WHT 2 2N WHT
3 Not used Not used 3 Not used Not used
GND GND GRN/YEL GND GND GRN/YEL
