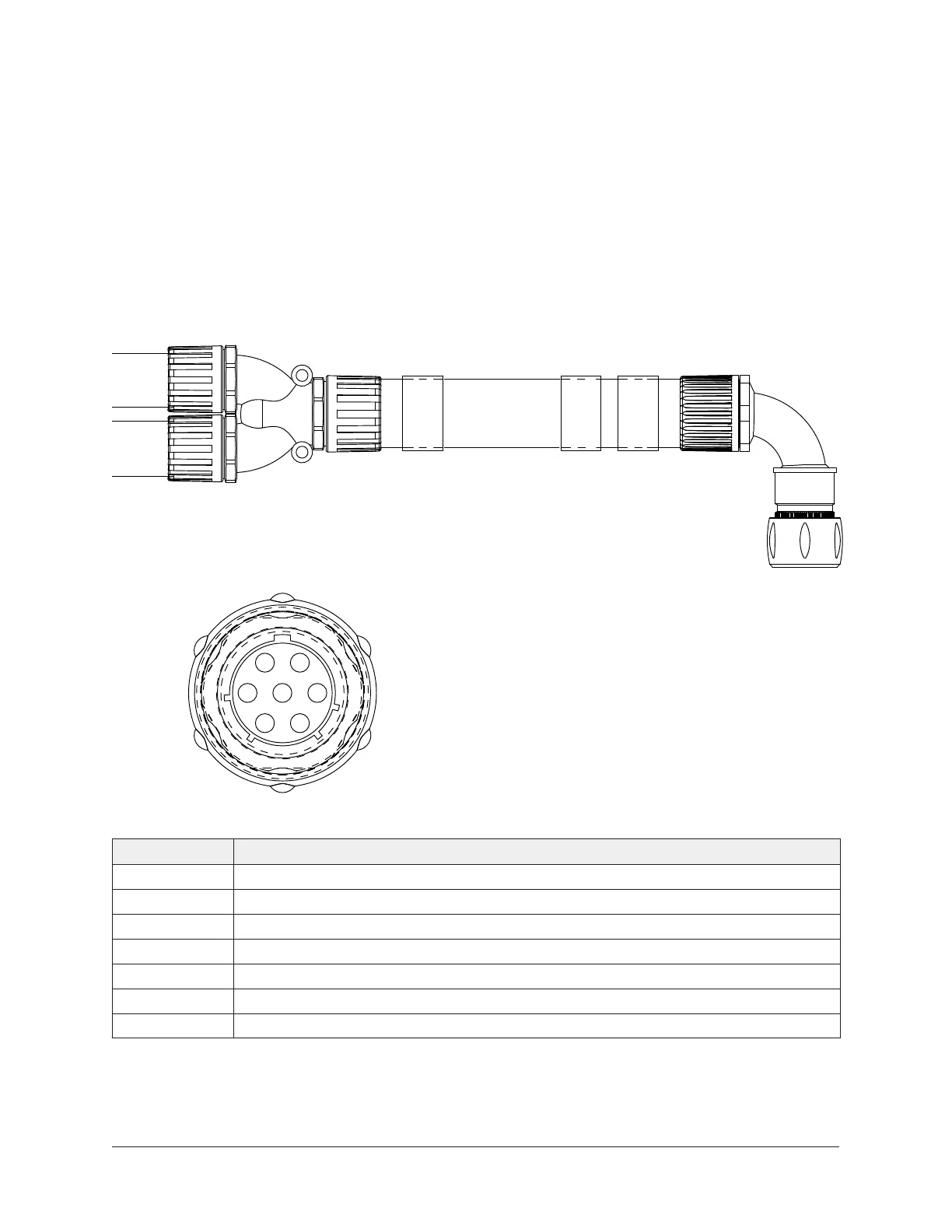

Figure 24: Purge connections for cable 128 (purge panel to inlet sols. ends)
092-51870-010
REV E, SHT. 1,2 & 3
LD27177
6
1
5
4
3
2
GND
025-49211-000 Wire Entry View
PURGE INLET
SOL END
PURGE PUMP
SOL END
OV PANEL
END “Y”
Cable 128:
OptiView to
Purge Inlet Sols.
Item Description
1 BLK/29B (120 Volts)
2 WHT/2M
3 BLK/29C
4 WHT/2N
5 GRN-YEL/GND
6 Not used
GND GRN-YEL/GND A
