Johnson Controls YZ - Motor cooling booster (MBC) system harness and terminal block details

Motor cooling booster (MBC) system harness and terminal
block details

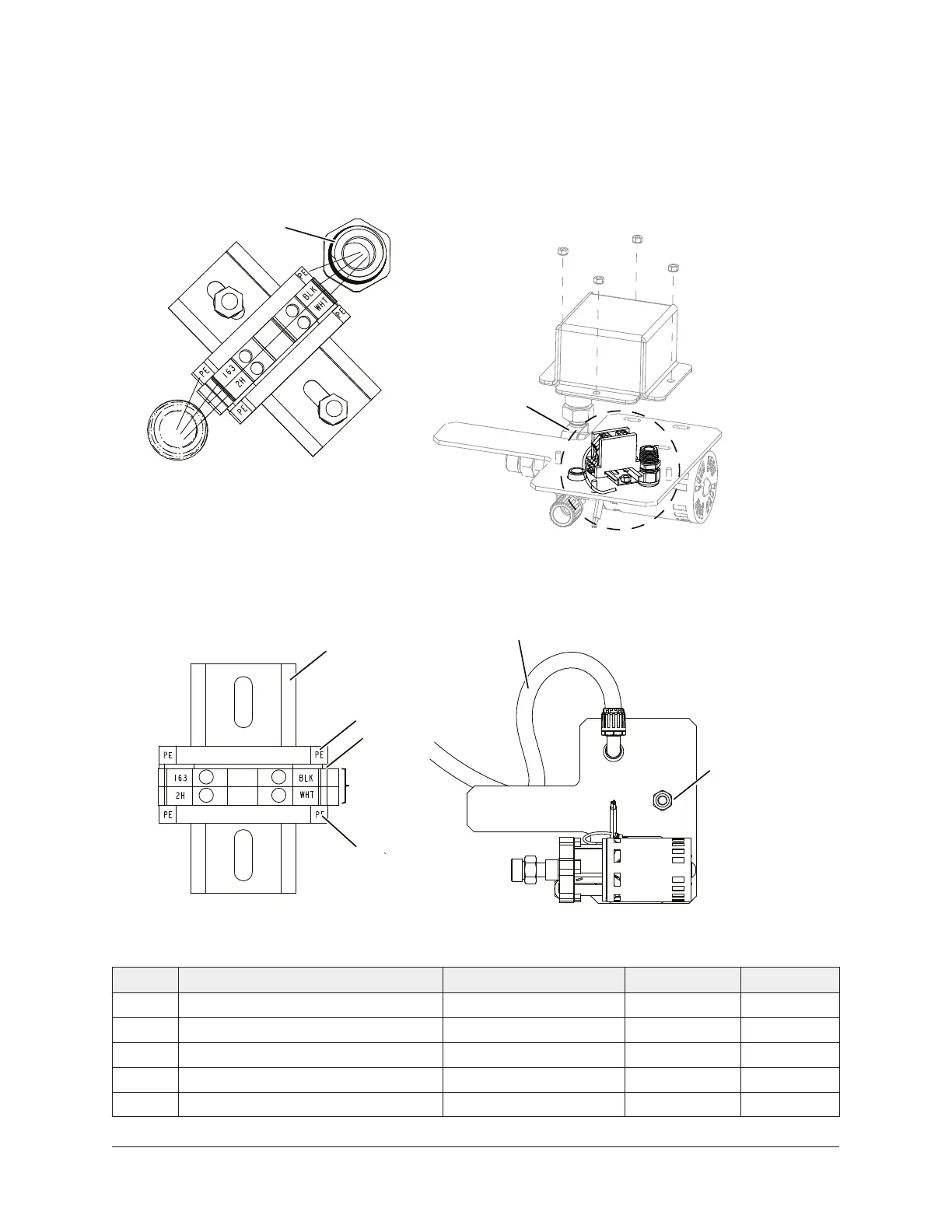

Figure 43: Motor cooling booster (MBC) system harness and terminal block details
LD27292
025-49216-000
REV -, SHT. 1
092-62925-000
REV B, SHT. 5
092-62930-000
REV -, SHT. 1
Booster Kit
for Wiring
Motor Cooling
Booster
Motor Cooling Booster System and Terminal Block Details
OV to Motor Cooling Booster (MCB) Harness
See Detail A
1
2
2
3
4
Detail A
(See Detail B)
GRN, BLK & WHT Wires
from the MCB
Detail B
Table 13: Bill of material for 025-49216-000
Item Description Part Number SAP Quantity
1 Rail, Din, Tabular, 35 X 7.5 MM 071-05906-030 839856 1
2 Block Term, Self Grounding WPE 4 025-39407-000 467020 2
3 Plate, End, WAP 2.5/2 025-44579-000 837886 1
4 Terminal, W-Series, WDU 4 025-44576-000 837883 2
5 Tag, Marking, DEK 5/6 MC 025-50302-000 5437073 8
69Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
