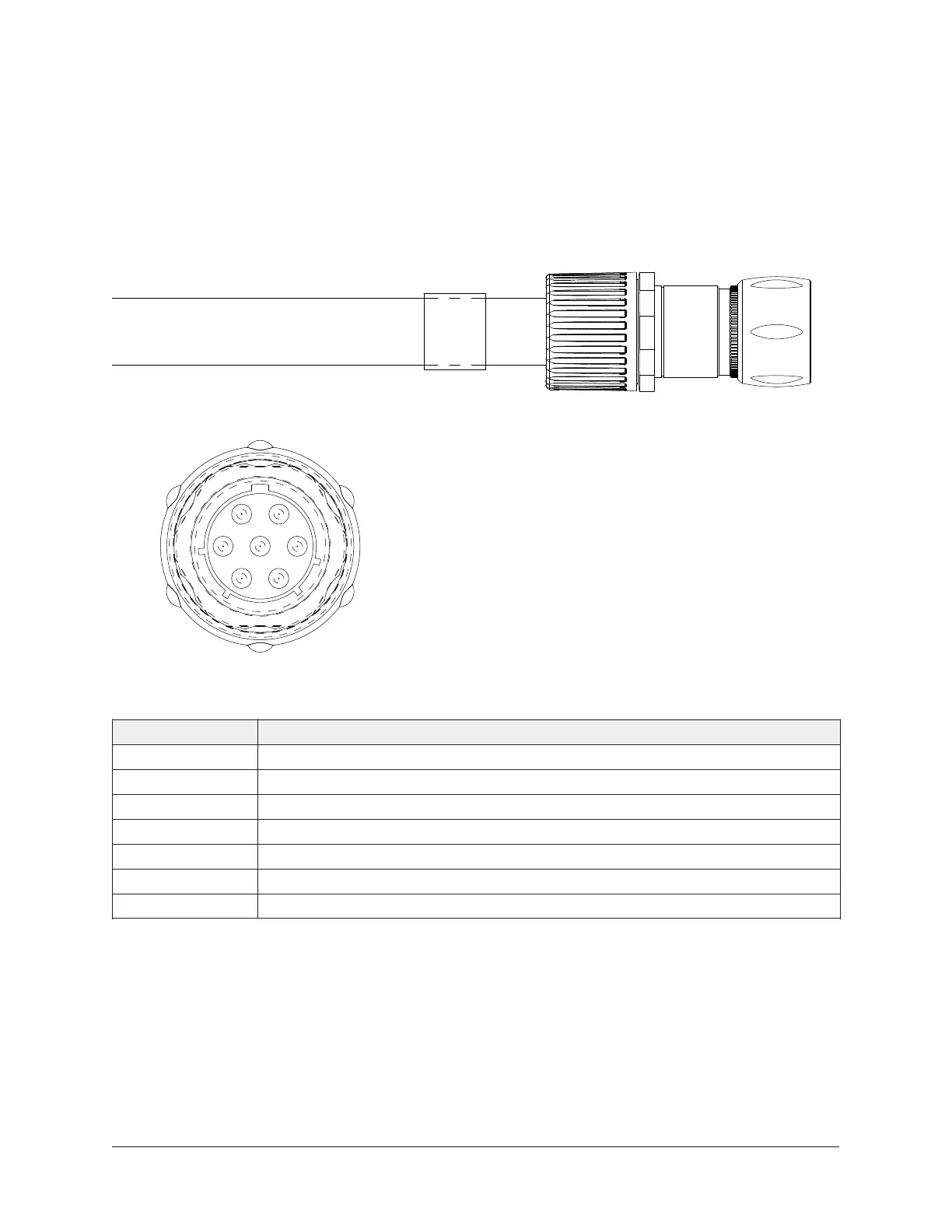

Figure 32: MBC connections for cable 129
092-51870-012
REV E, SHT. 1
1
6
2
3
4
5
GND
LD23496a
MBC (HV)
END
025-49301-000 Wire Entry View
Cable 129: VSD to MBC (HV)
Table 10: Cable 129: MBC (HV) end
Pinout No. Wire/Signal names
1 Contact Pin
2 RED/300VDC (CL)
3 BLU/15VDC (CL)
4 BLK/COM
5 ORG/GND
6 Contact Pin
GND Bare/Drain
55Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
