Johnson Controls YZ - Page 49

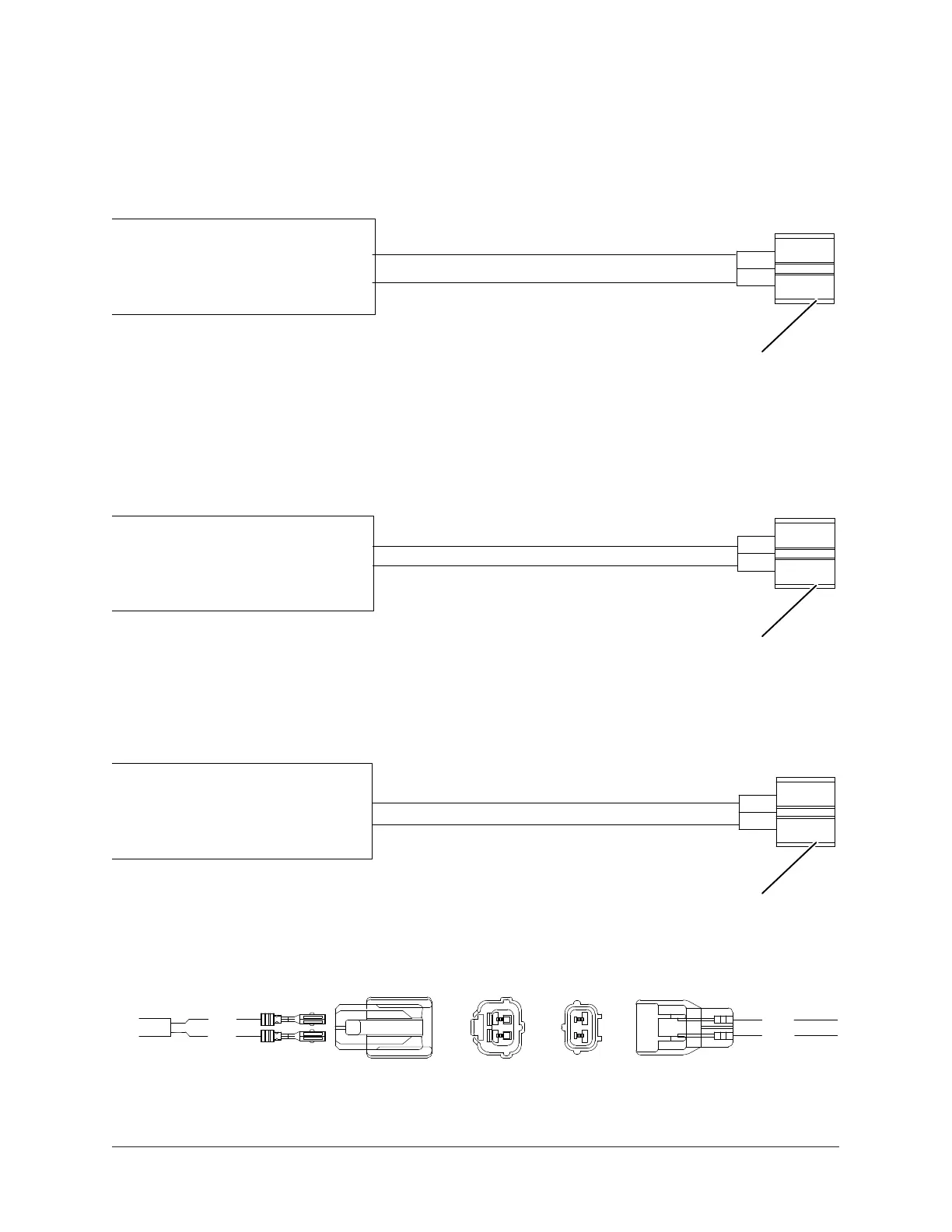

Figure 27: Purge connections for cables 49, 50, and 51
LD23488
RED
BLK
RED
BLK
BLK
RED
092-51870-009
REV F, SHT. 4 & 7
Cable 51:
Purge Tank High Level Switch
Cable 50:
Purge Suction Temp.
Cable 49:
Purge Coil Temp.
BLK
BLK
RED
WHT
See Detail A
Detail A
See Detail A
See Detail A
Sensor Connector
(Cap)
49Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
