3.5.7 Display Own Vector [OWN VECT]

NOTE: The display of own vector needs the connection of the GPS and the heading

sensor. And it is necessary to set the dimension of own ship and the position of

GPS sensor in service menu to display the vector correctly (refer to 3.5.8).

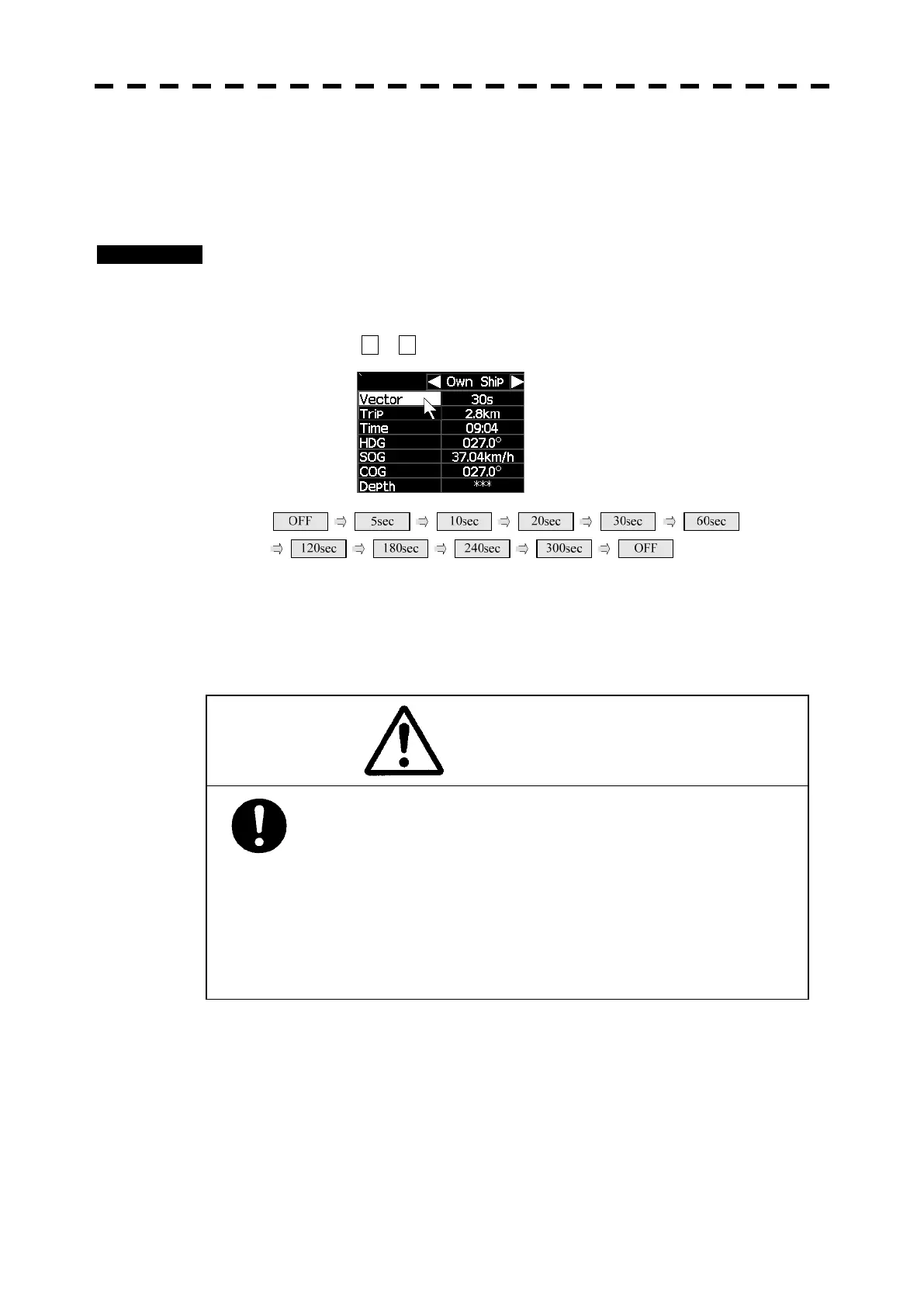

Procedures 1 Press [OWN VECT] key.

The vector length currently being selected is displayed in the information window at the

lower right or left of the screen only when the kind of information is “OWN SHIP”.

If other information (GPS/ DOCKING/ AIS or OFF) is selected, put the cursor on the

button (Fig2.3-11 or 21) and press [ENTER] key.

There are shown 2 vectors, one drawn from the bow and the other one from the stern. The

vector will be straight when the vessel doesn’t turn and curved when the vessel turns.

The accuracy from the vectors are depending on the

accuracy from the (D)GPS sensors.

With longer vectors, the accuracy will be lower.

The vectors are calculated with the situation at that

time. When there will be some changed influence from

wind, water current etc, are not shown before the

vessel is influenced by this.
