4.1 MEASUREMENT BY TRACKBALL
y
yyy
4-1
4
4.1 MEASUREMENT BY TRACKBALL

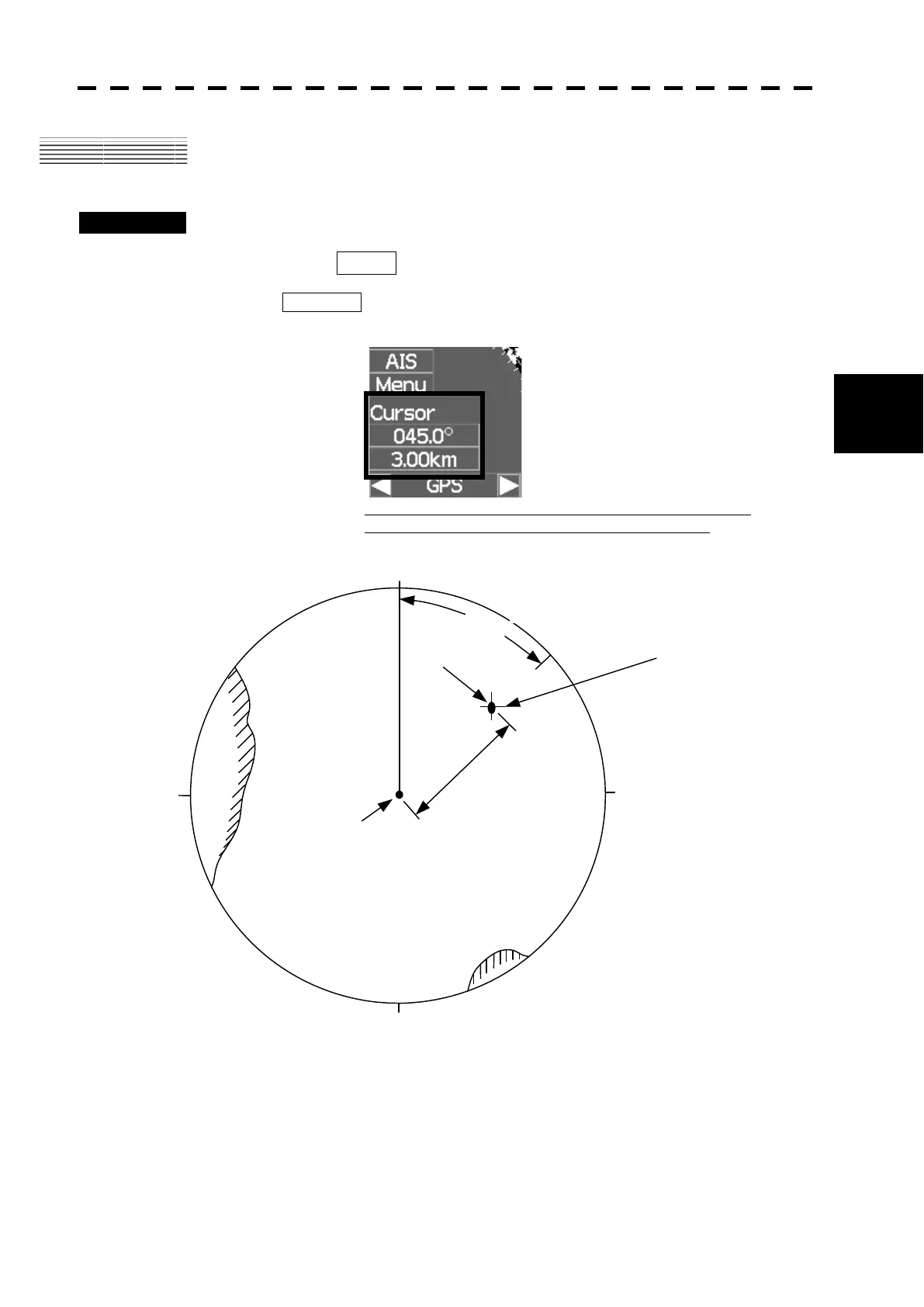

Procedures 1 Make sure of the target echoes on the radar display.
2 Move the cursor mark to a target by the trackball.
The CURSOR on the radar display indicates the bearing and range of the target. The
range is a distance from own ship’s position.
45.0q: True bearing of the cursor relative to own ship
3km: Range between the cursor and own ship
㪚㫌㫉㫊㫆㫉
㪊㫂㫄
㪫㪸㫉㪾㪼㫋
㪦㫎㫅㩷㪪㪿㫀㫇
㪈㪏㪇
㪐㪇
㪉㪎㪇
㪇
㪋㪌㫦
Figure 4.1
